3.3 RUN MENU
3.3.1 Production Screen

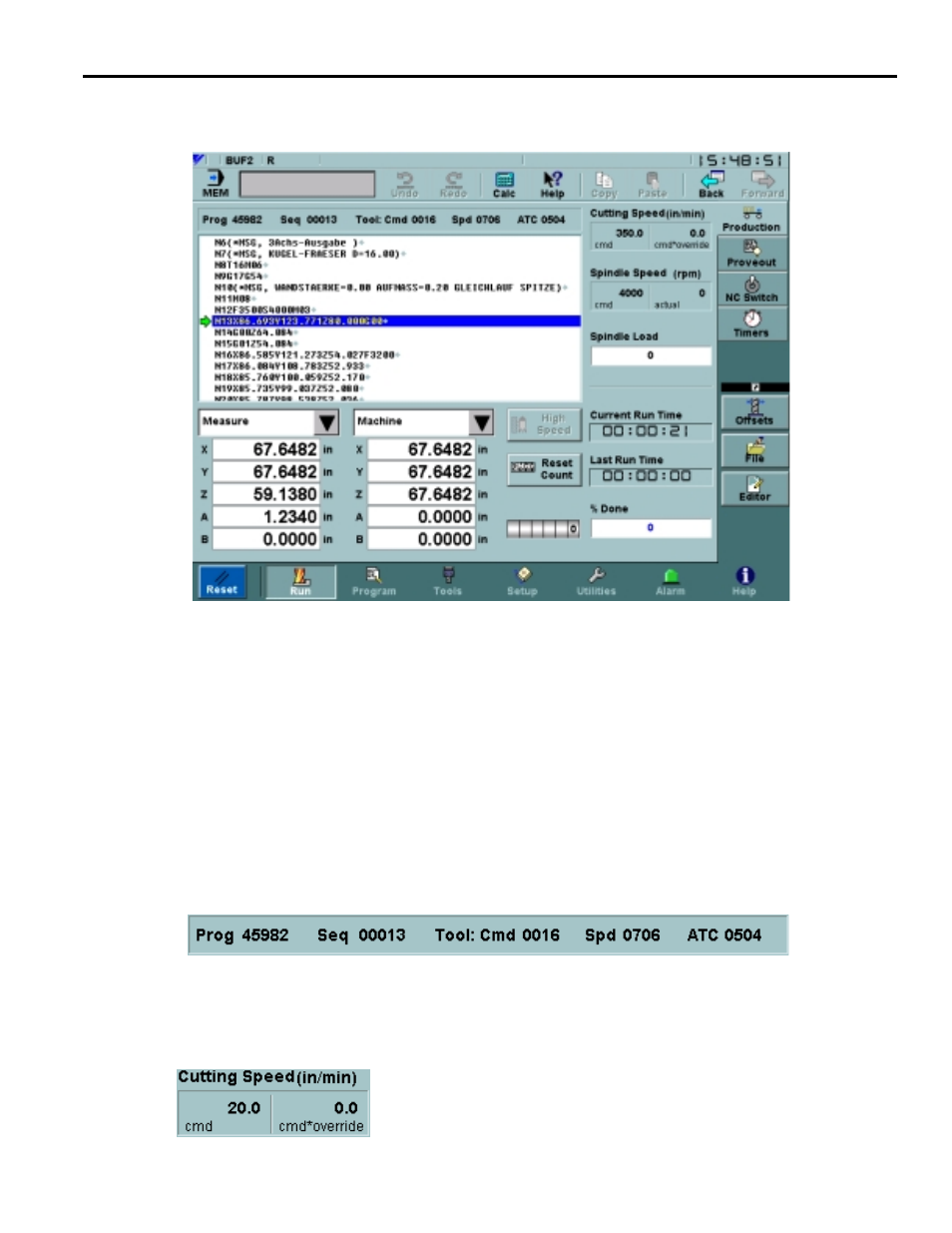

Fig. 3.3.1.1 The Run Production Screen
This screen normally displayed during production. The screen includes a Program Display
described in “Program Display” on page 20, two non-editable Position Displays, discussed in
“Position Display” on page 19, and other production data. The choice of coordinate systems is
preserved when the MMI is shut down so that at restart the same coordinate systems are dis-
played.
In the upper left corner of the screen is an area containing program-specific data. This data
includes the current program, sequence number, Tool commanded, Speed and ATC tool numbers.
The commanded tool number indicates the tool in use. The Spindle tool and ATC tool (tool cur-
rently held in the tool changer) are also shown.
The formatting of the tools is controlled by parameters, which is the way the Spindle and ATC
tools are read.
Both the commanded cutting speed (F) and the commanded feed
rate multiplied by the override are displayed. The commanded rate
is the machine’s real cutting rate.
