YASNAC PC NC Operating Manual Chapter 3: HMI Process Operation
3 - 62
3.6.2 Four (4) Positions Screen
This screen shows position displays for the four major coordinate systems. For more information
on position displays, see “Position Display” on page 19. Workpiece and Measure are editable;
Distance to Go and Machine are for display purposes only. The Measure coordinates may be
edited at any time. The Workpiece frame may only be edited in manual modes (Rapid, Jog, Han-
dle and Step) when the machine is not running.

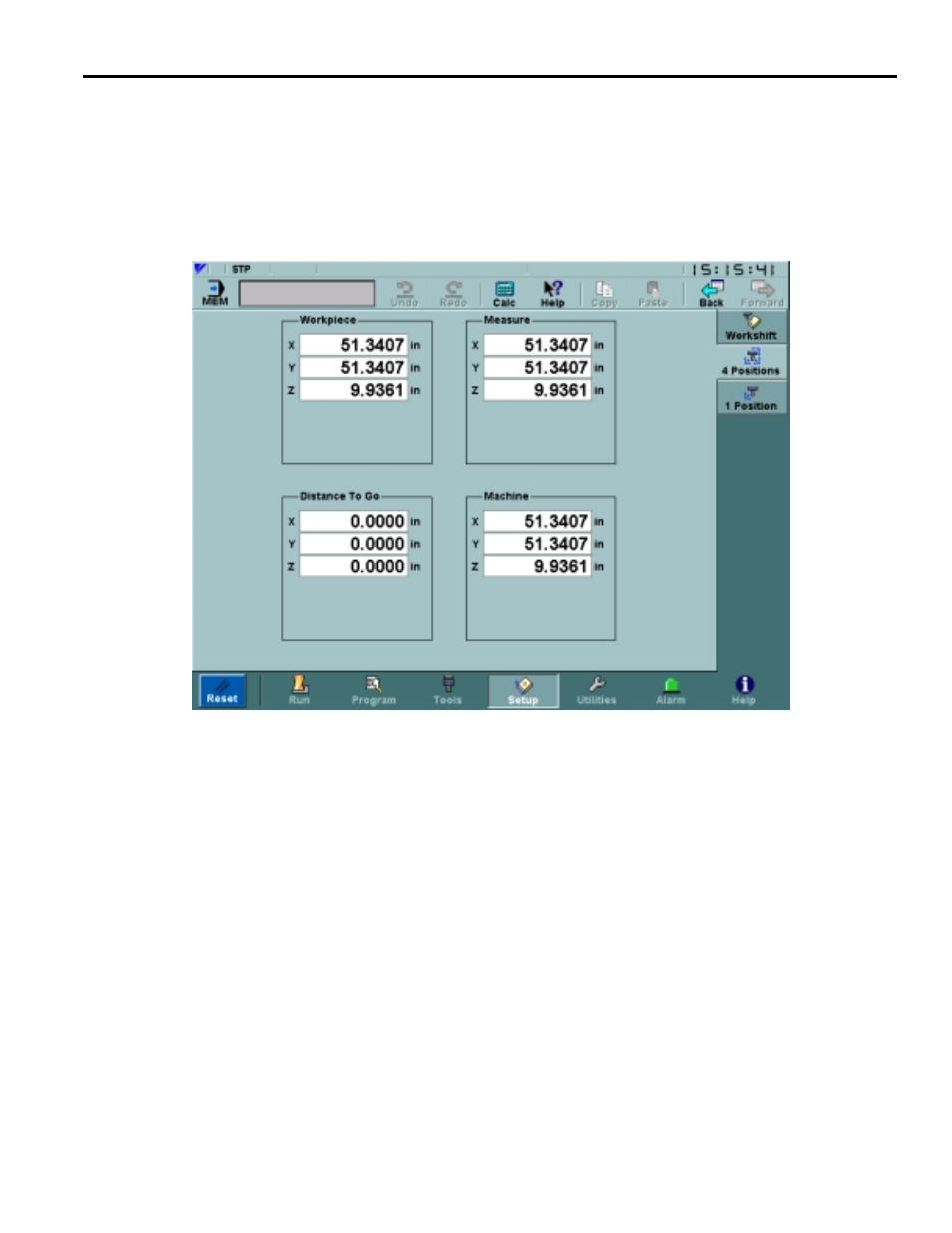

Fig. 3.6.2.1 The 4 Positions Screen
