YASNAC PC NC Operating Manual Chapter 2: PC NC System Outline
2 - 14
2.5 Manual Operation (2)
This section describes manual operations carried out in daily production using the manual
operation functions explained in 2.4 “MANUAL OPERATION (1)“.
2.5.1 Simultaneous 2 or 3-axis Handle Feed *
By installing the pulse handle for the individual axis, it is possible to move up to three axis among
the X-, Y-, Z-,
α
-, and
β
-axis simultaneously. Follow the procedure indicated below.

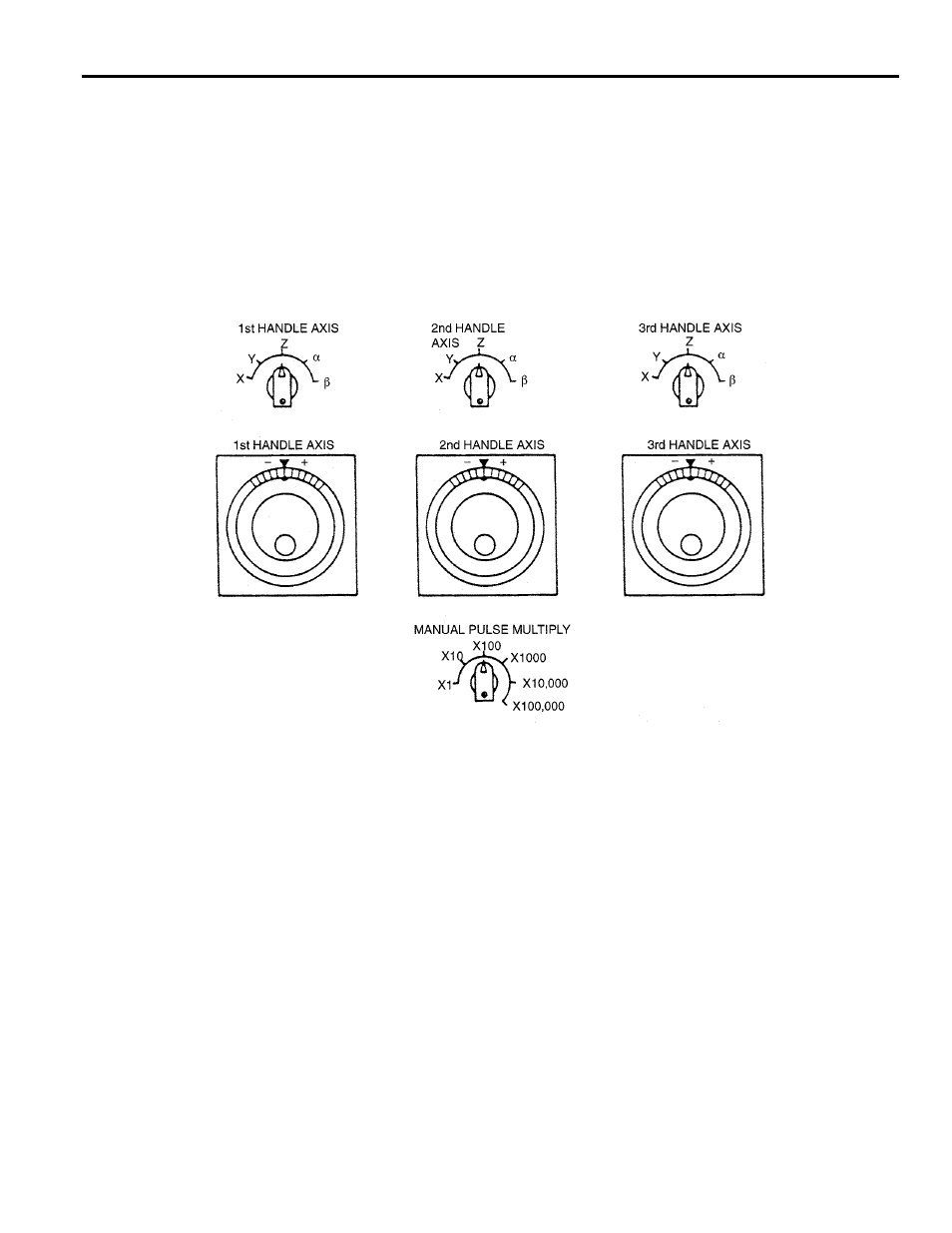

Fig. 2.5.1.1 Simultaneous 2 or 3-axis Pulse Handle Feed
Select the handle mode by placing the MODE SELECT switch on the machine operation
panel in the HANDLE position.
Select the axis feed distance per graduation of the pulse handle with the MANUAL PULSE
MULTIPLY switch on the machine operation panel. This switch is used in common for the
three pulse handles.
Turn the pulse handle. The selected axis is moved in the positive or negative direction accord-
ing to the handle turning direction.
