Yaskawa Yasnac PC NC - Manual (Page 116)

YASNAC PC NC Operating Manual Chapter 3: HMI Process Operation
3 - 64
3.7 UTILITIES MENU
3.7.1 Login Screen

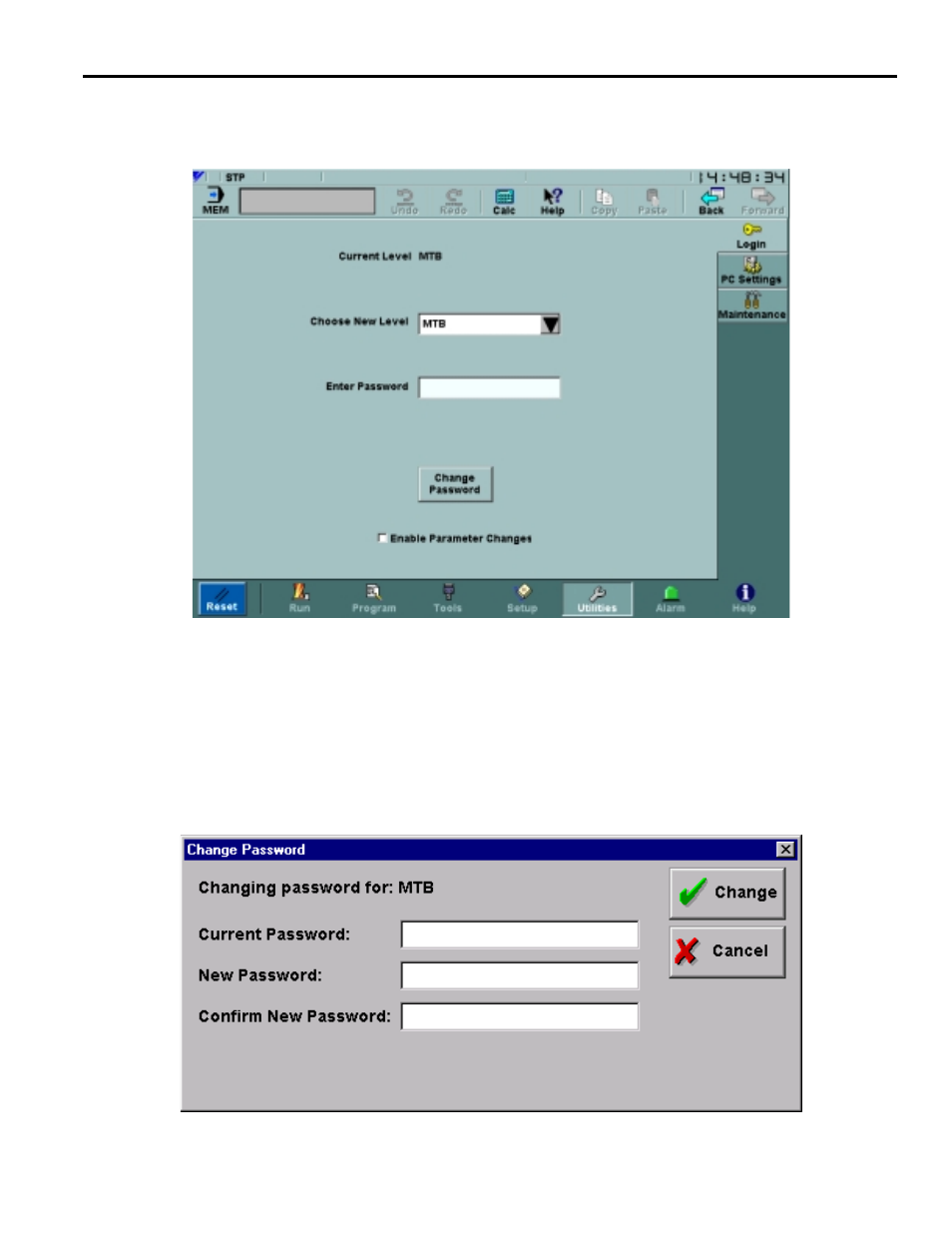

Fig. 3.7.1.1 The Login Screen
The Utilities: Login screen, shown in Figure 3.7.1.1 on page 64, can be used to change the user
level, enable and disable parameter writing, and define new user level passwords. Changing pass-
words is restricted to Machinist level or higher, and it is not possible to change the password for
Service level or any level higher than the current one. The Change Password dialog is shown in
Figure 3.7.1.2 on page 64.
Fig. 3.7.1.2 The Change Password Dialog
