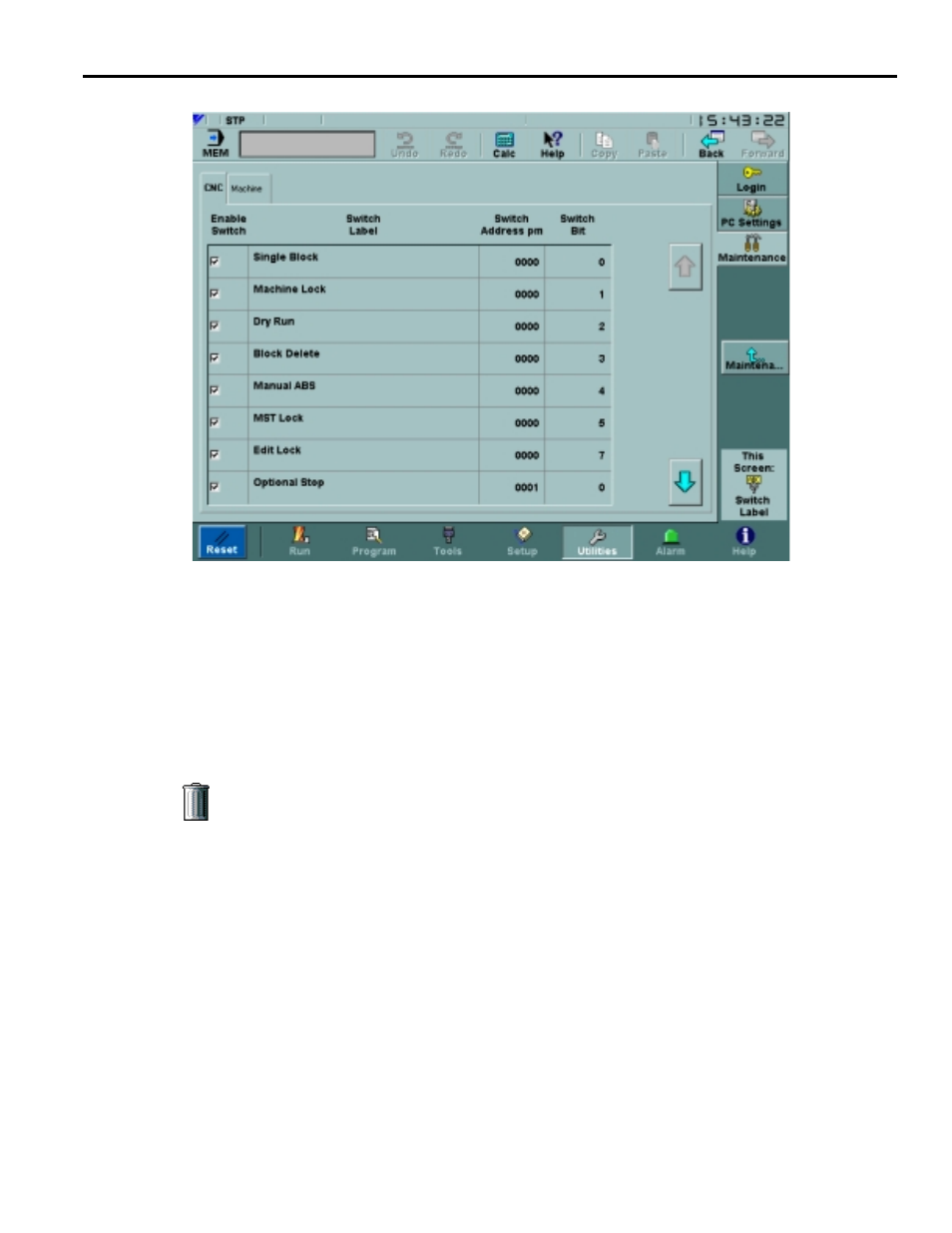

Fig. 3.7.20.1 The CNC Tab of the Switch Label Screen
The Machine tab, shown in Figure 3.7.20.2 on page 97, can be used by machine tool builders to
create a software version of the CNC pendant panel in the Machine Switches box of the Run: NC
Switch screen. For each switch shown, there is a label, output keep relay address (Switch
Address and Switch Bit) and LED output keep relay address (Lamp Address and Lamp Bit).
All of these fields are editable. The list can contain a maximum of 16 machine switches. A
switch is displayed if its Enabled box is checked.
Clicking the Delete Switch button while a line in the table is selected will remove that
line from the table.
