YASNAC PC NC Operating Manual Chapter 3: HMI Process Operation
3 - 73
3.7.7 Setting Parameters Screen

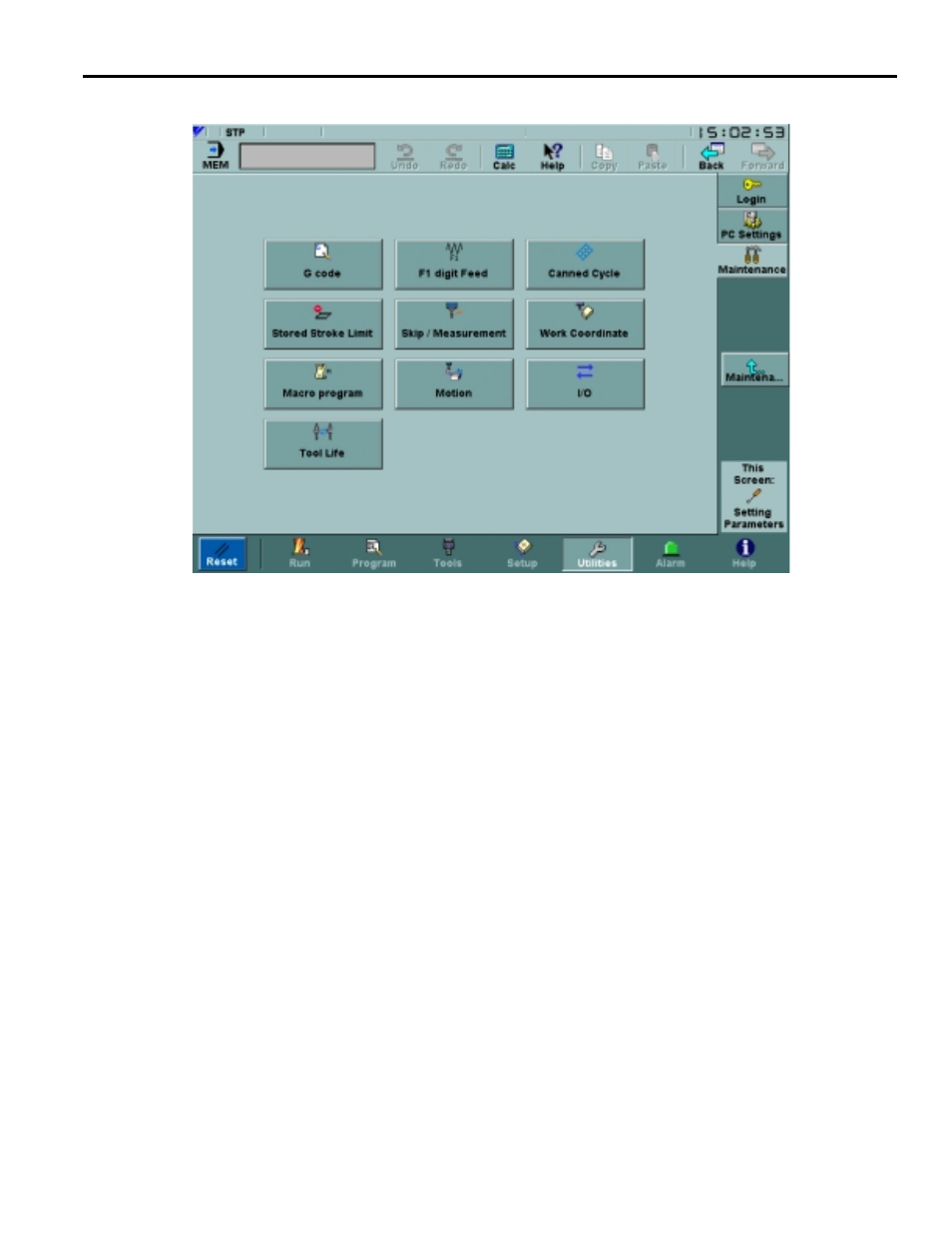

Fig. 3.7.7.1 The Setting Parameters Screen
The Maintenance: Setting Parameters screen is a jumping point to several screens where specific
setting parameters (parameters with addresses under 1000) may be viewed and modified. The
operation of each of these screens is identical; just the parameters which are shown on each screen
vary. Therefore, only the G Code Setting Parameters screen, displayed in Figure 3.7.7.2 on
page 74, will be shown here as an example of these screens.
