YASNAC PC NC Operating Manual Chapter 3: HMI Process Operation
3 - 76
3.7.8 NC Parameters Screen

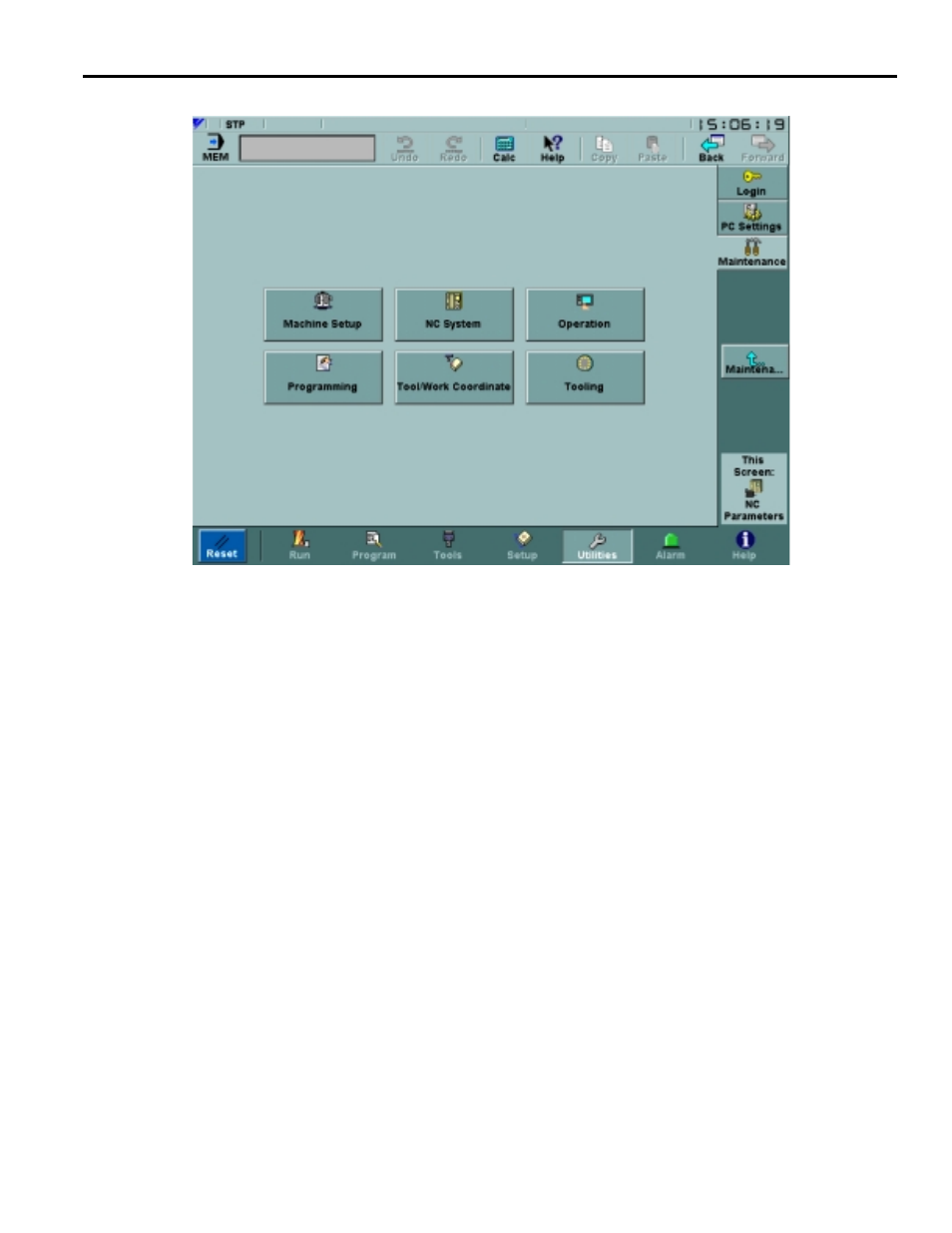

Fig. 3.7.8.1 The NC Parameters Screen
The NC Parameters screen provides jumping points to several screens where specific parameters
with addresses above 1000 may be viewed and modified. The operation of each of these screens
is identical; only the parameters which are shown on each will vary. The G Code Setting Parame-
ters screen, displayed in Figure 3.7.7.2 on page 74, is representative of the appearance and behav-
ior of these screens.
