• Change to the Tools: Offset screen. The Back button should now be enabled.
• Press the Back button on the toolbar. The Run: Production screen should now be showing,
and the Forward button should be enabled.
• Press the Forward button on the toolbar. The Tools: Offset screen should now be showing,
and the Back button should be enabled.Menu Bar
3.1.10 Menu Bar
The number contains the reset button and top level menu items. The latter will be discussed in
subsequent chapters.

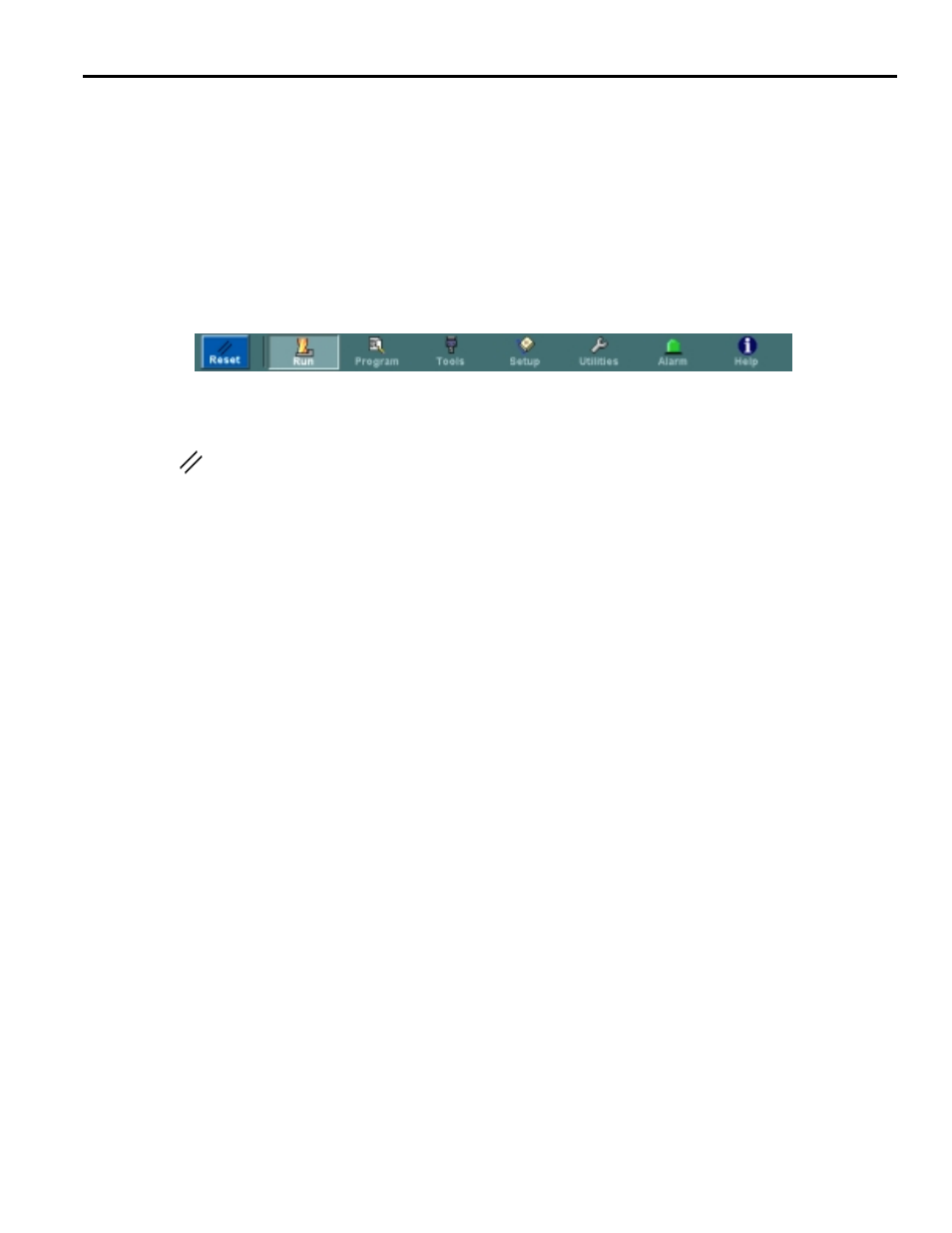

Fig. 3.1.10.1 Menubar
The Reset button appears in the bottom left corner of the screen, just to the left of the top
level menu. Pressing this button will halt NC operation and reset it to an idle state with the
program counter back at 0. The running pointer arrow will appear at the top of the pro-
gram display.
