Hardware Preparation and Installation
ATCA-7350 Installation and Use (6806800G59G) 42
Figure 2-3 shows the positions of the DIMM interfaces on the ATCA-7350.
2.6.4.1 Installing the DIMM
To install the DIMM, proceed as follows:
1. Wear the ESD-preventive wrist strap.
For details, see Wearing the ESD-Preventive Wrist Strap on page 34 .

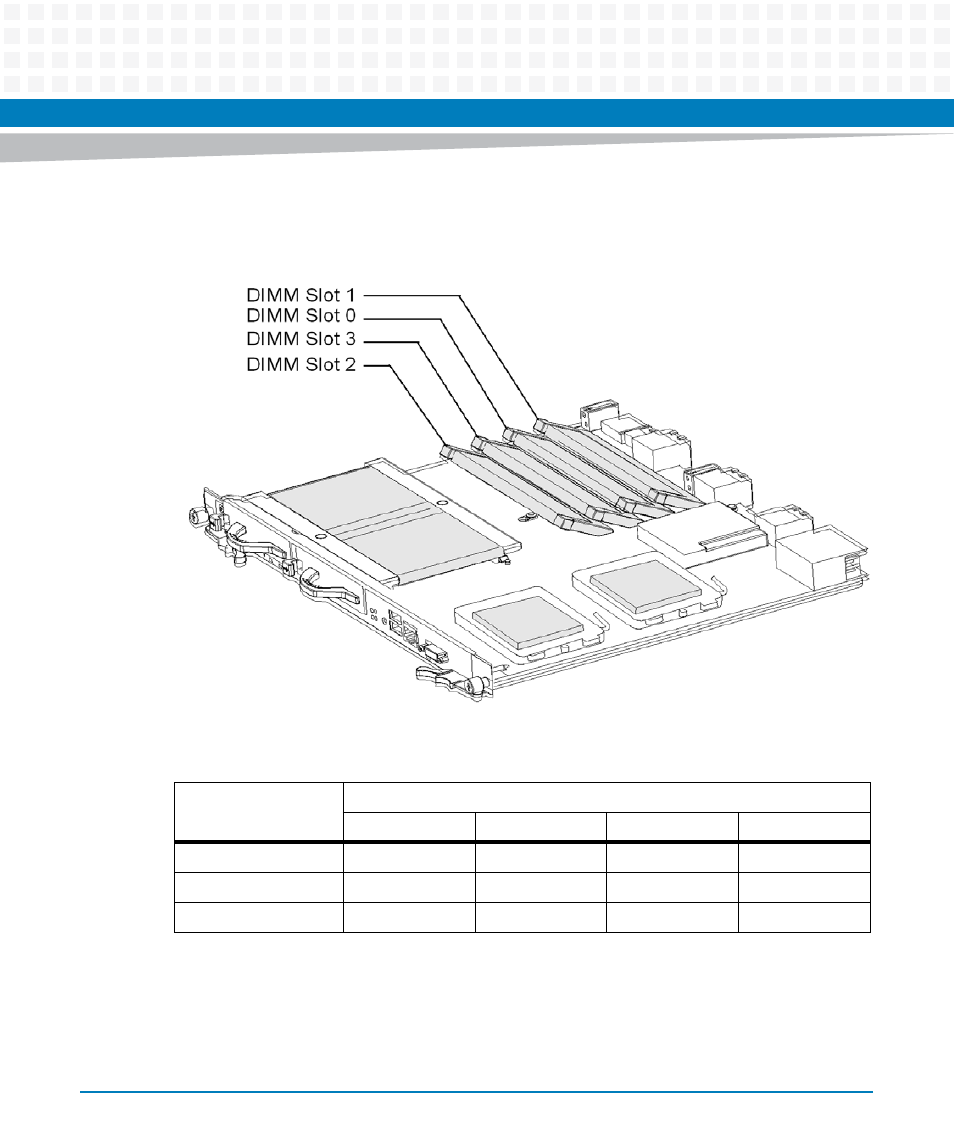

Figure 2-3 Positions of the DIMM Interfaces
Table 2-6 DIMM Configuration on the ATCA-7350
Number of DIMMs
Installation Positions
DIMM Slot0 DIMM Slot1 DIMM Slot2 DIMM Slot3
1 x
2 x x
4 x x x x
