Programming Overview

151295

6-4

6.2.1

Input Point Mapping

Input points are assigned to input zones. Any input point can be assigned to any input zone. (Input points can be
assigned to one zone only. An input point can be designated as “Unused,” which means it has not been assigned
to a zone.)

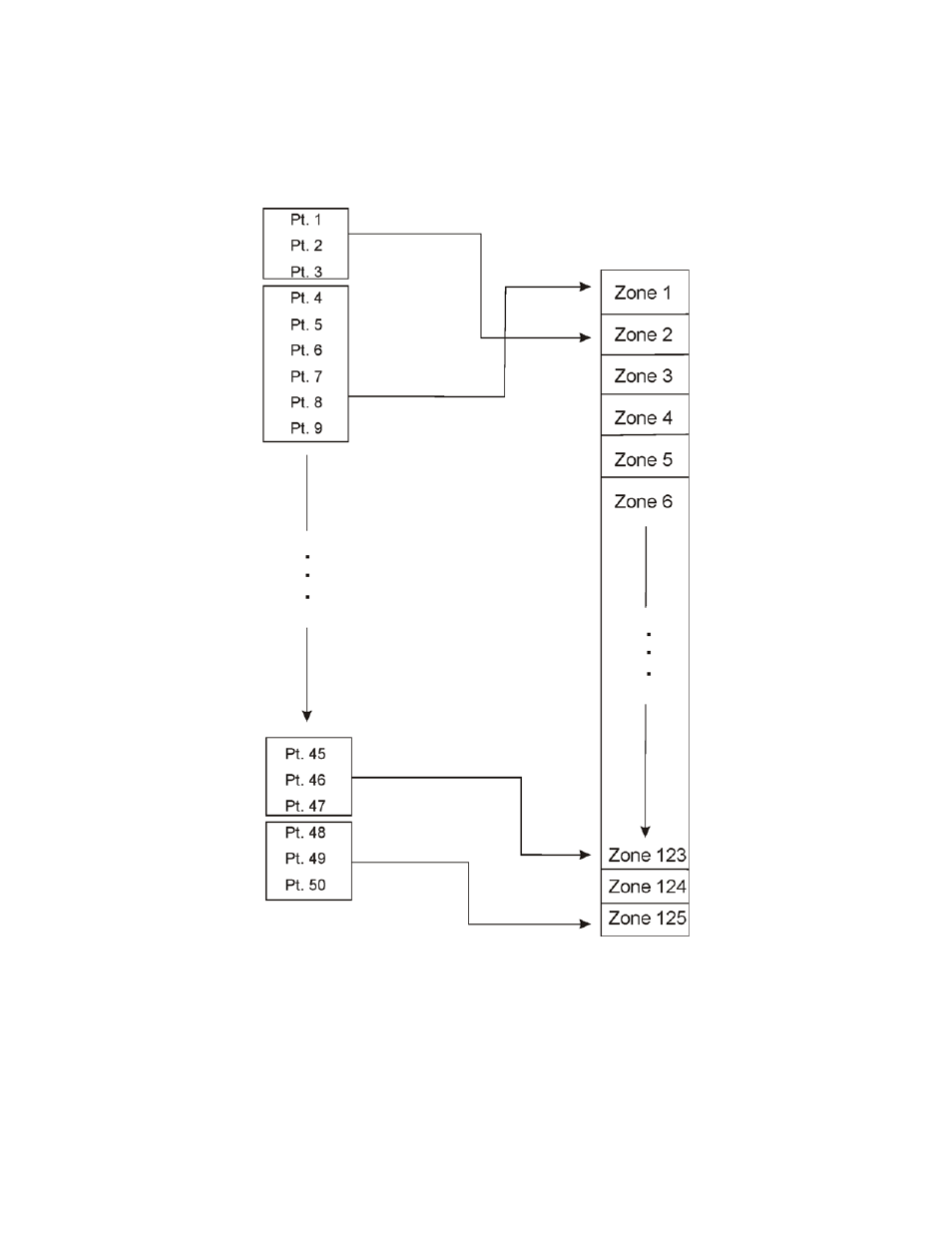

Figure 6-2 Input Point Assignment Example
