Programming

151295

7-2

7.2

Modules

This section lists the options available under the module option in the program menu. The types of modules
available for the control panel are, 5860 (Keystation) 5824 (Serial/Parallel input/output), 5880 (LED Input/
Output module), 5496 (Intelligent Power Module), and a 5865 (LED Annunciator).

7.2.1

Edit Modules

The features that can be edited when this option is selected are, module name, and class of wiring (Class A or
Class B).

To edit an existing module, follow these steps:

Enter the installer code.

Select 7 for Program Menu.

Press 1 to enter module menu.

Press 1 to edit a module.

Use the

arrow to select the module you wish to edit.

7.2.1.1 Naming Modules

You can assign an English name to a hardware module to make it easier to recognize on a display.

To edit a module name, press the

arrow to select each character for the modules name (or press

to bypass name edit). Press the

to move to the next character.

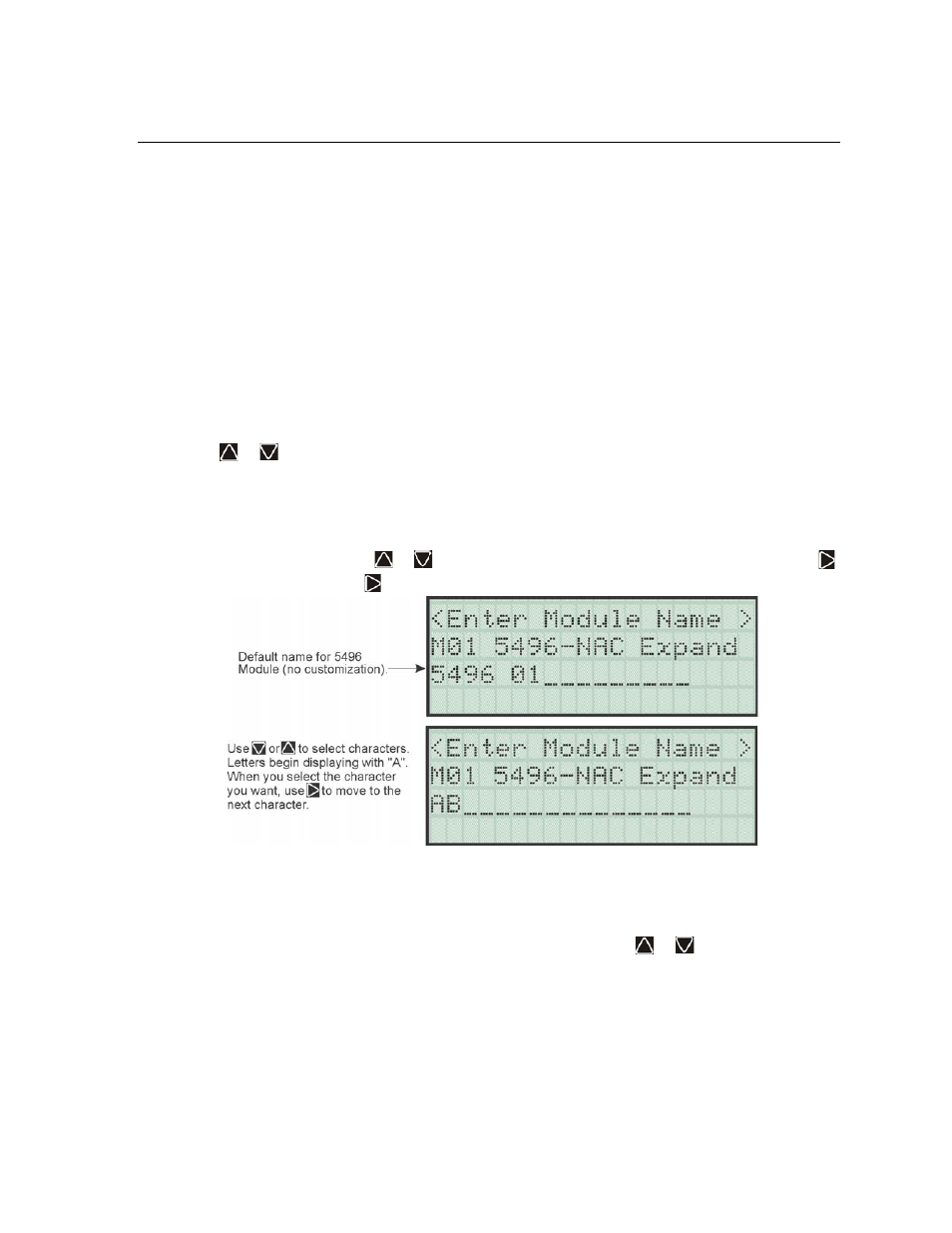

Figure 7-1 Edit module Name Programming Screen Example

7.2.1.2 Module, Wiring Class

Choose the class of wiring you wish to use for this module by pressing the

arrow, then press

ENTER

7.2.2

Adding a Module

You must be in the Main Menu to perform this task. If necessary, enter the Installer Code. If you need to add a
new hardware module to the system, follow the steps below.

Enter the installer code.

Select 7 for Program Menu.
