SilentKnight 5700 - Manual (Page 43)

Control Panel Installation 151295
4-14
4. After the annunciator wiring to the panel has been completed (described in Section 4.5.2), replace the elec-
tronic assembly in the back box. Place the bezel over the back box and tighten the set screws on the bezel.

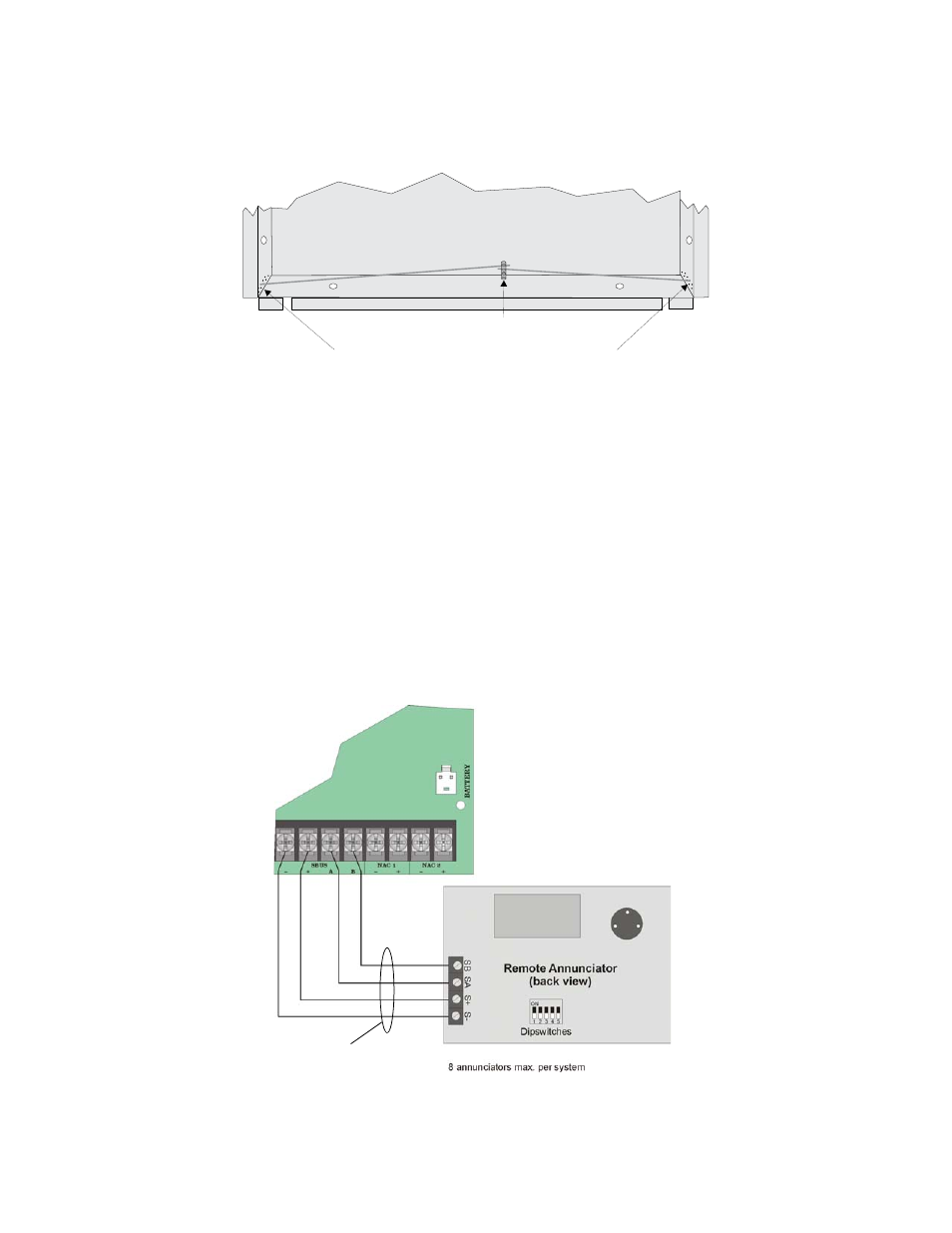

Figure 4-14 Flush Mounting the Back Box
4.5.1.2 Surface Mounting
The 5860 can be mounted directly to a surface or can be attached to a single, double, or four-square electrical
box. The Model 5860TG/TR trim ring kit is available for use when surface mounting.
1. Drill holes in the surface to match the screw holes on the back box.
2. Fit the trim ring over the back box.
3. Attach the back box to the surface using screws provided.
4. After the annunciator wiring to the panel has been completed (described in Section 4.5.2), replace the elec-
tronic assembly in the back box. Place the bezel over the back box and tighten the set screws on the bezel.
4.5.2 Model 5860 Connection to the Panel
Connect the 5860 to the panel as shown in Figure 4-15.
Figure 4-15 Model 5860 Connection to the Panel
Insert wires at an angle into the first holes past the sheet rock.
Secure the wires behind this screw.
Attach second set of wires to top of back box.
Supervised
Power Limited
