Model 5700 Installation and Operation Manual
151295
4-15
4.6
5824 Serial/Parallel Printer Interface
Module Installation
The 5824 serial/parallel printer interface module allows you to connect a printer to the panel, so you can print a
real-time log of system events, a report of detector status, and event history.
5824 installation involves the following steps:
1.
Make sure power is off at the panel.
2.
Connect the 5824 to the panel as shown in Figure 4-16.
Note: Two 5824s per panel maximum.
3.
Use the DIP switches on the back of the 5824 board to assign an ID# to the 5824 (see Section 4.9.1).
4.
Configure the 5824 device through programming. See Section 4.6.1.
5.
Connect a printer to the 5824 as shown in Figure 4-17.

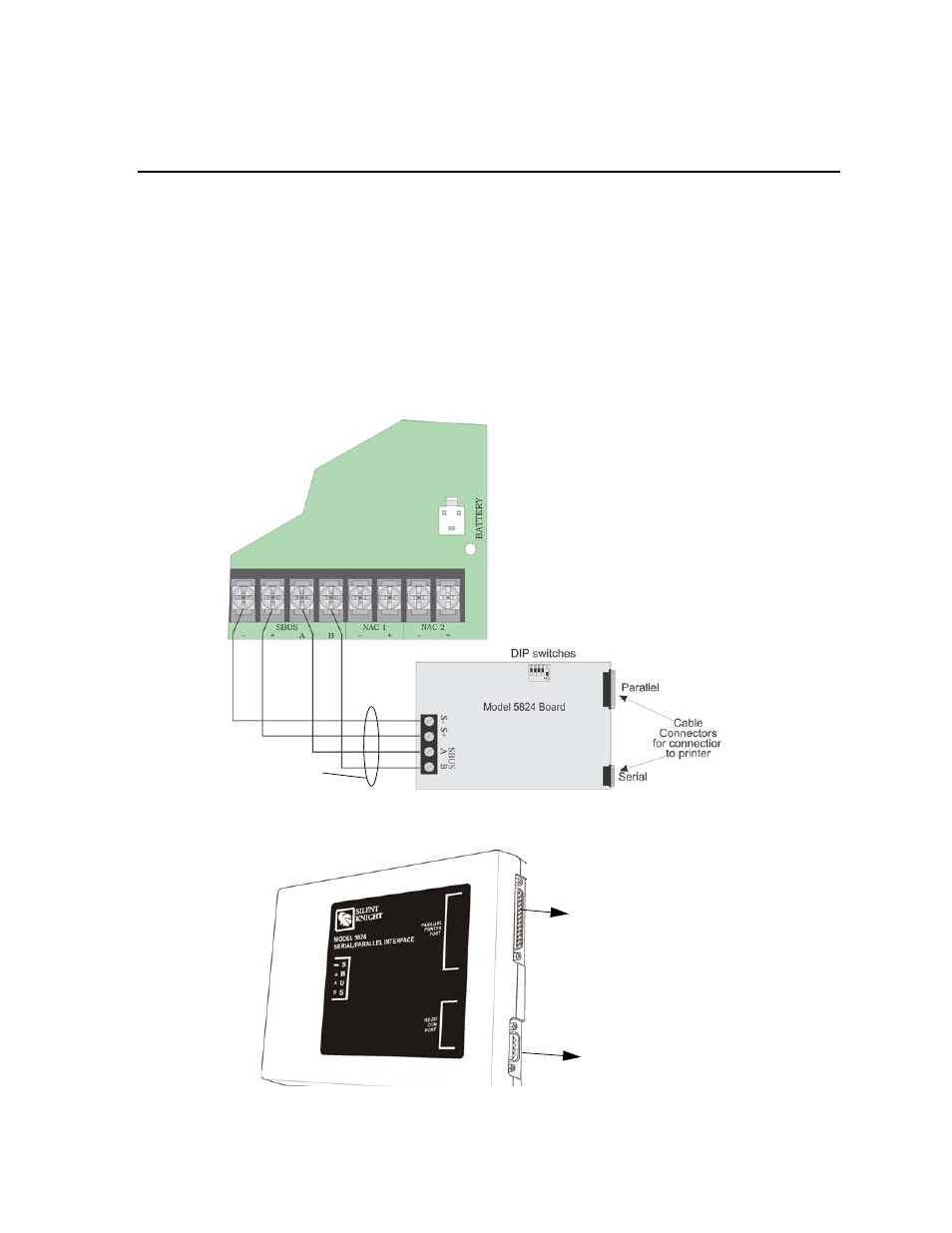

Figure 4-16 5824 Connection to the Panel
Figure 4-17 Printer Connection
Supervised
Power Limited
To Serial Printer
To Parallel Printer
