Model 5700 Installation and Operation Manual 151295
4-9
4.4.2 Wiring Configurations

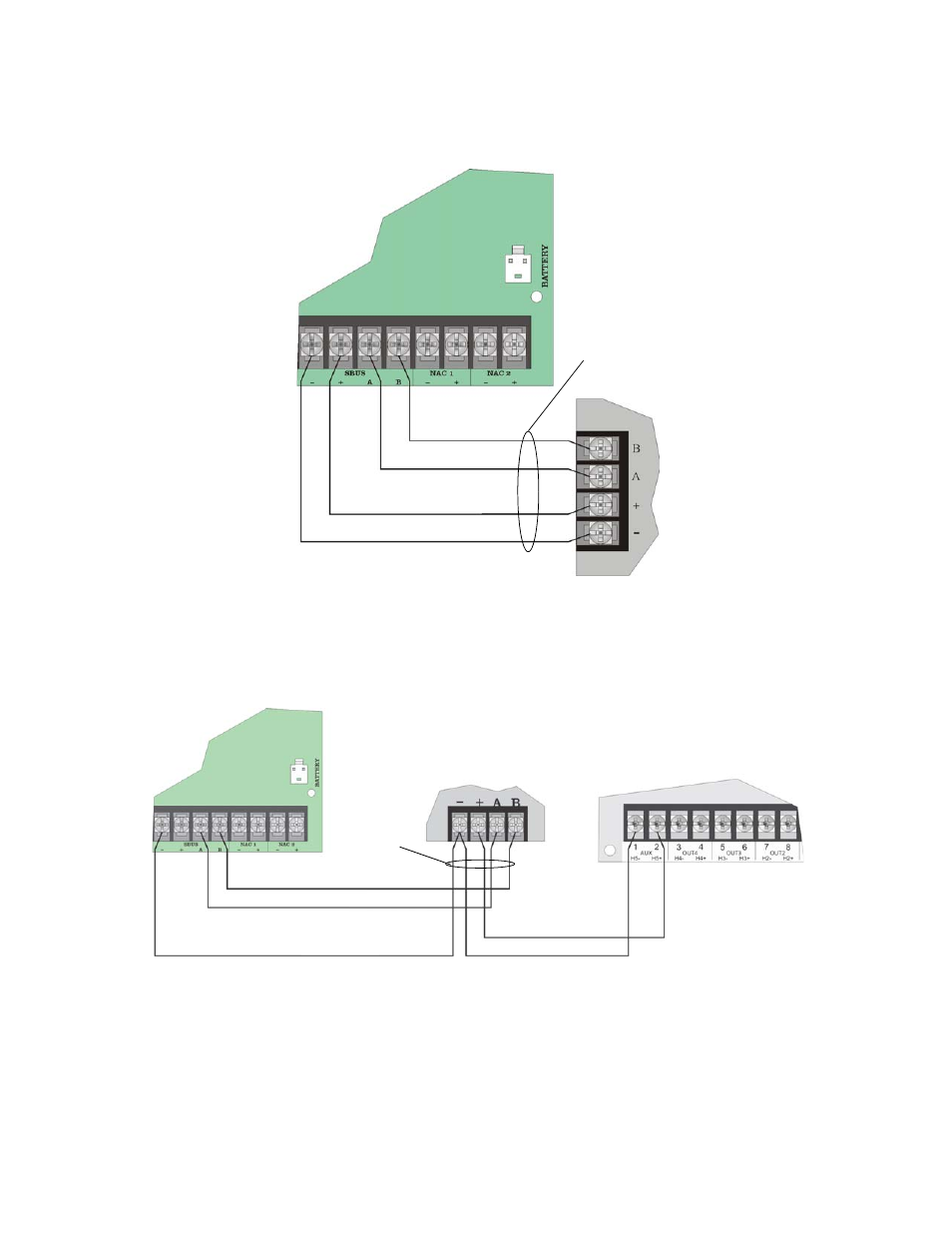

Figure 4-8 illustrates Class B configuration.
Figure 4-8 SBUS Class B Wiring
4.4.2.1 How to Power SBUS Devices From Auxiliary Power Supply
Figure 4-9 illustrates how to power SBUS devices from an Auxiliary Power Supply such as the 5495 or 5499,
when the maximum number of SBUS devices exceeds the SBUS power requirements.
Figure 4-9 Powering SBUS Devices From 5495 or 5499
Note: The earth ground jumper on the 5495/5499 must be removed in this configuration.
Supervised
Power Limited
5495 or 5499
SBUS Device
Control
Panel
Supervised
Power Limited
