Model 5700 Installation and Operation Manual

151295

4-33

4.13.5

Using a MR-201/T Control Relay From Air Products

When the MR-201/T control relay is wired for polarity reversal, it reports alarm and trouble events to a remote
site. Alarms will override trouble conditions and it will not be possible to reset the remote indicator until the
condition is cleared and the control panel is reset.

If an alarm condition occurs, the alarm relay will close, overriding the trouble condition.

Current:

15 mA max.

Operating Voltage:

24 VDC nominal; 27.4 VDC max.

Resistance:

4 K

To install the MR-201/T for polarity reversal, follow the steps below:

1.

Wire the MR-201/T as shown in Figure 4-38.

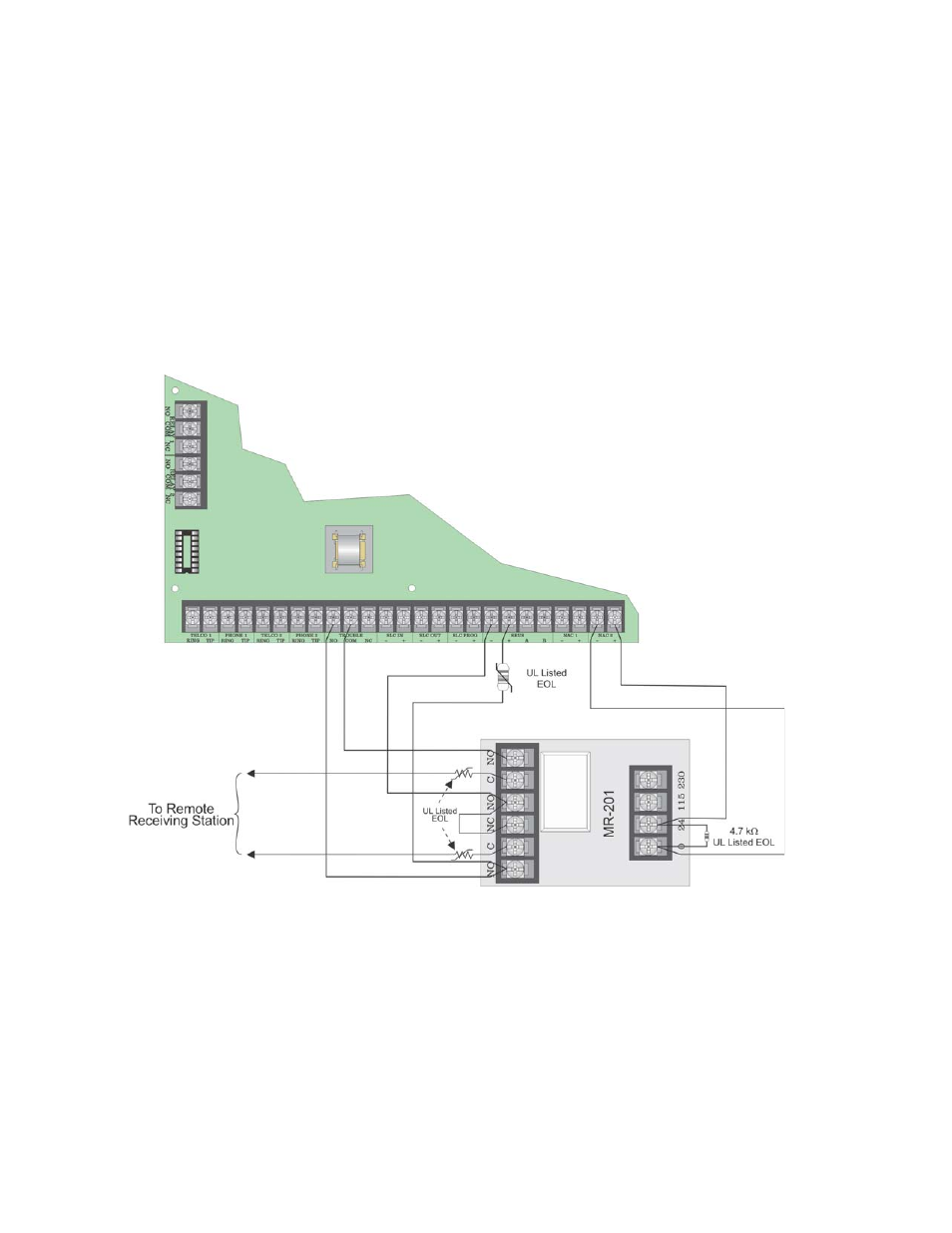

Figure 4-38 Polarity Reversal Connection Using the MR-201/T Relay

2.

Program the NAC circuit for non silence NAC circuit (see Section 7.5).

Note: If you need to transmit supervisories or trouble conditions, additional relay modules must be added. Use

relay 1 to transmit supervisory conditions. Use the trouble relay to transmit trouble conditions.

Supervised
Power Limited

Intended for Connection to
a Polarity Reversal Circuit
of A Remote Station
Receiving Unit Having
Compatible Rating.

Note: UL Listed Model 7642

must be permanently mounted
