Page 53
Control Panel Installation
151295
4-24
4.11.1.1 Class B Notification Wiring
You must use an appliance from the list of compatible appliances in the Appendix A at the back of this manual.
To install a Class B notification appliance circuit:
1.
Wire Class B Notification appliances as shown in Figure 4-29.
2.
Configure the circuit through programming (see Section 7.5).

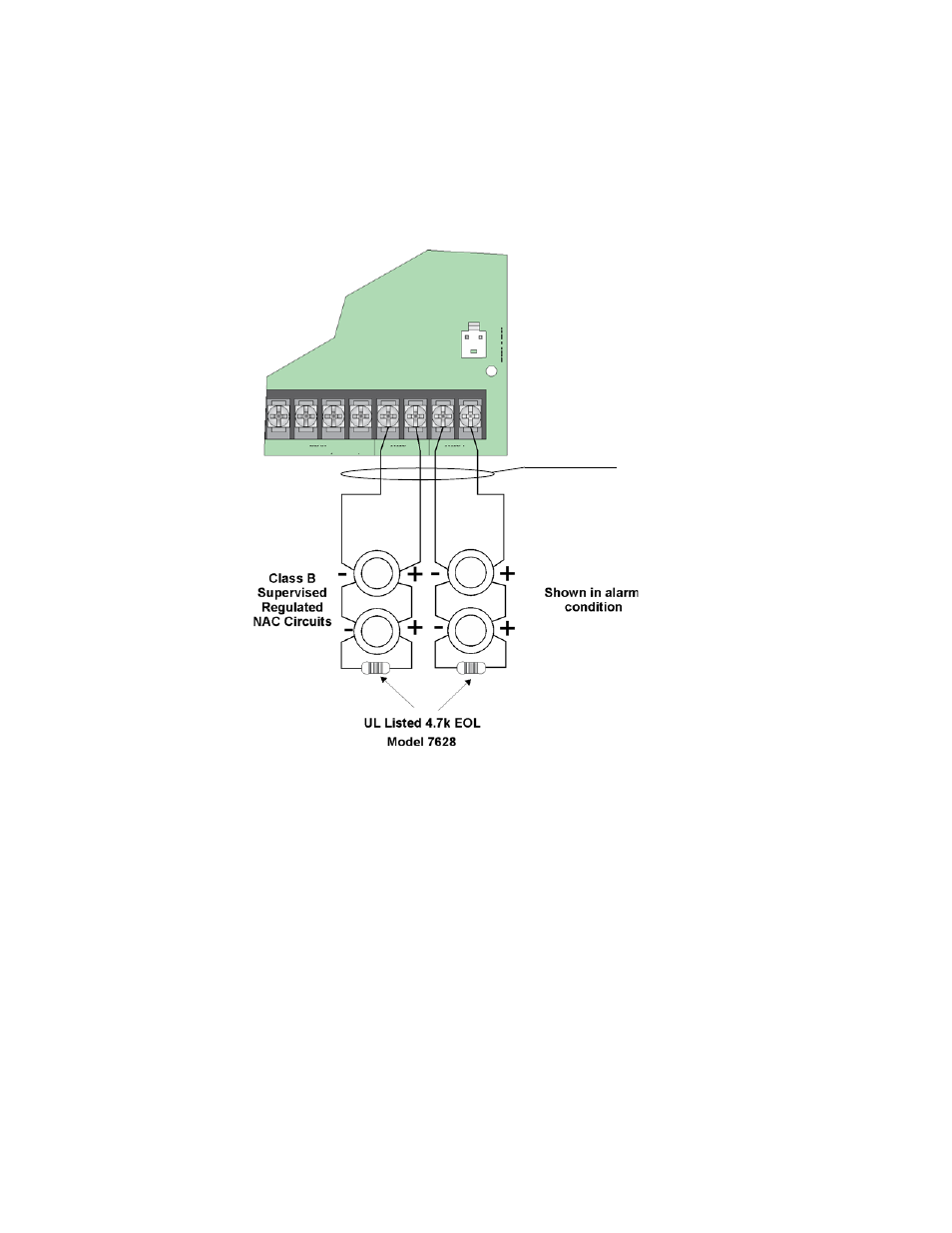

Figure 4-29 Class B Notification Appliance Circuit Wiring
Supervised
Power Limited
Notification Wiring
