SilentKnight 5700 User Manual
Page 67
SK and SD SLC Device Installation
151295
5-4

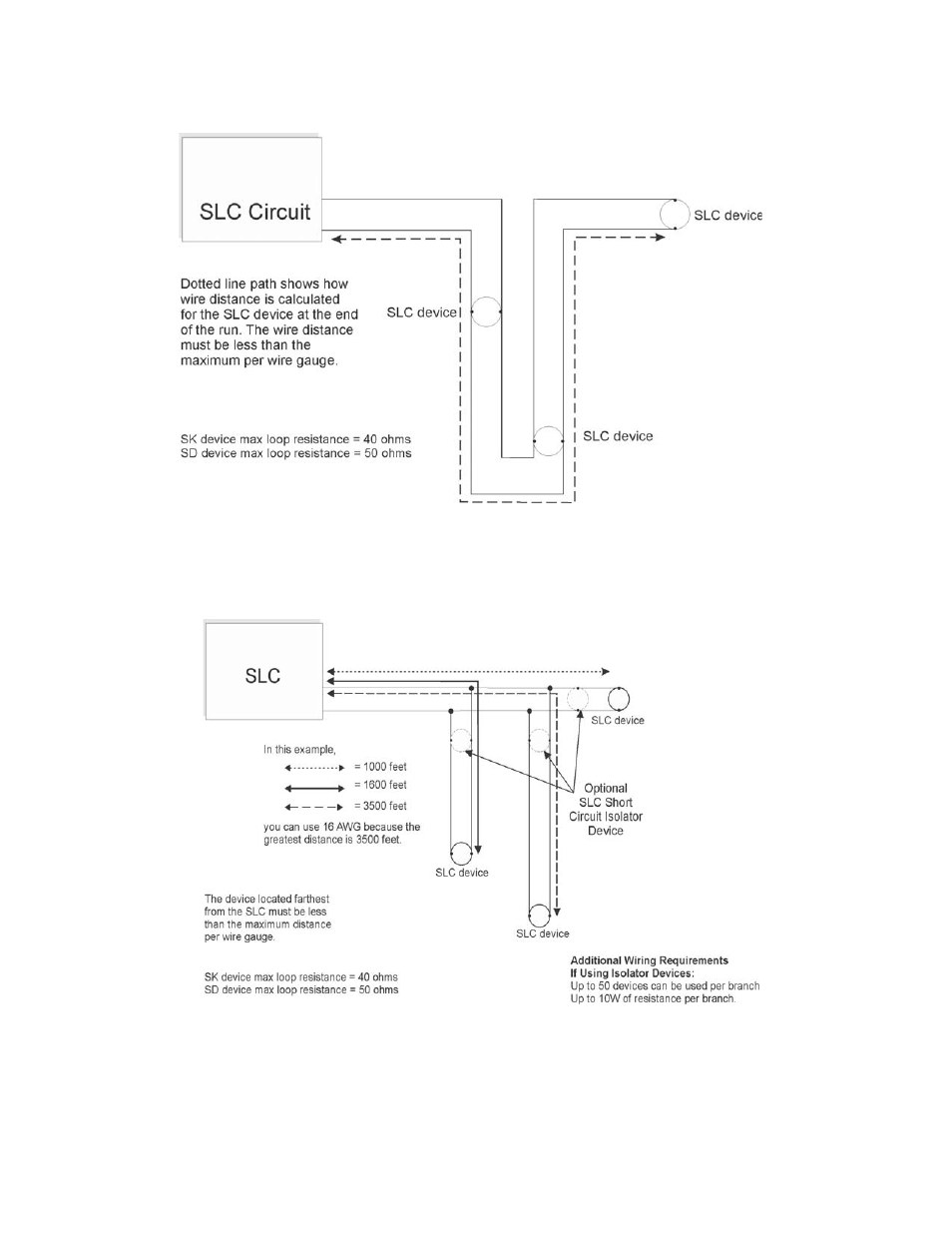

The following figures show how length is determined for out and back tap and T-Tap style wiring.
Figure 5-1 Calculating wire run length for a simple out and back
When using T-taps, the total length of all taps and the main bus must not exceed 40,000 feet. This requirement
must be met in addition to the maximum distance requirements for the various wire gauges.
Figure 5-2 Calculating Wire Run Length for a T-tap
