Select options for each event that could occur in this zone. Figure 7-4 is a complete example of how you
might map a zone.
Figure 7-4 Selecting Output Groups/templates and Cadence Patterns for a Zone Event
Example of Zone Mapping:
Suppose you want to program Zone 1 so that:
•
Any alarm (detector, water flow or manual pull) would activate Output Group 1 using the ANSI cadence
pattern.
•
Manual pull alarm would activate Output Group 3 using constant output.
•
Troubles would activate Output Group 2 using the zone-coded cadence pattern.

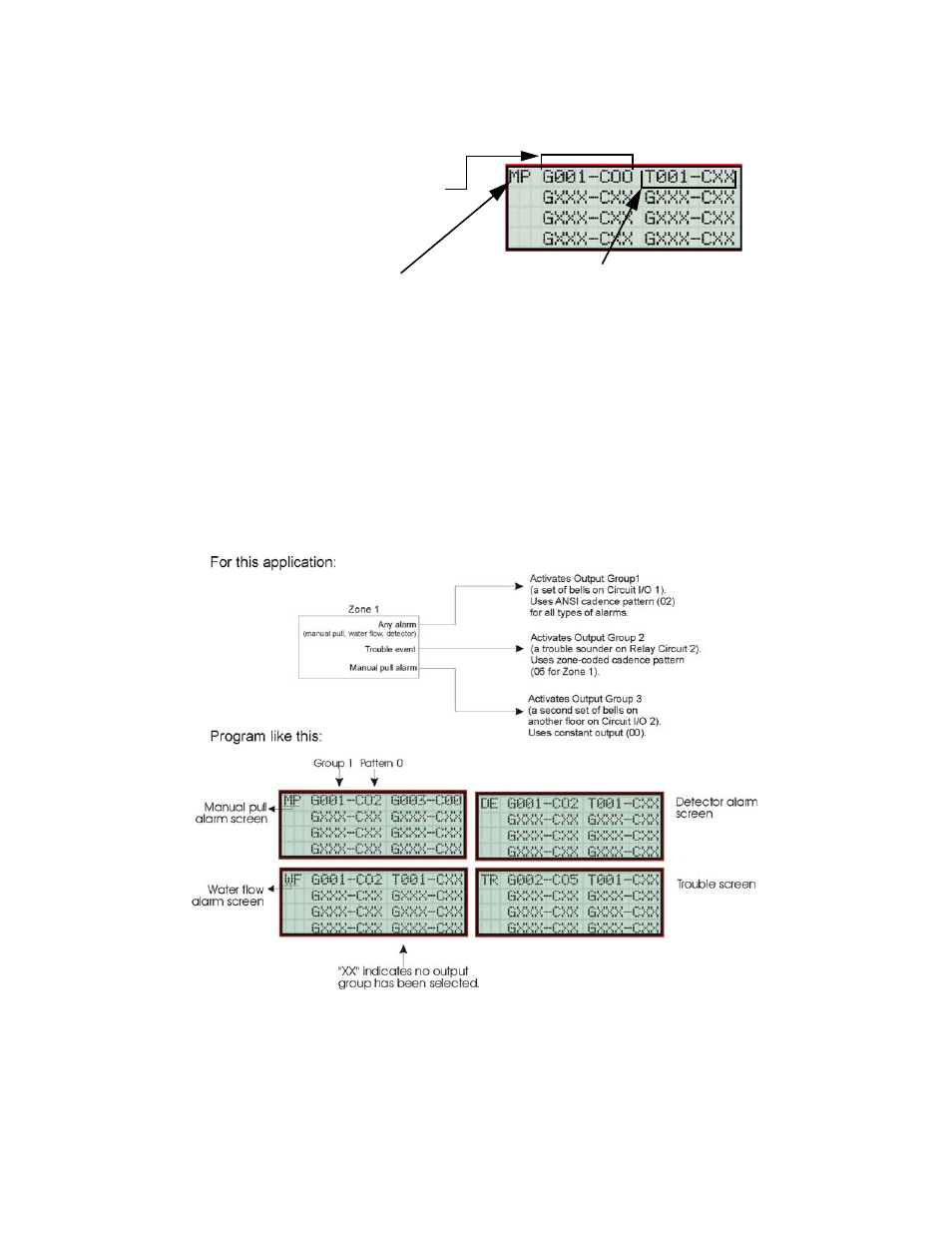

To accomplish this you need to access the screen for each event and then select your output groups. Figure 7-5
shows how you would program this application.
Figure 7-5 Zone Mapping Example
Indicates type of event (in
this case, Manual Pull alarm).
See Section 6.5 for choices.
Indicates output group 1, cadence
pattern 00 has been selected. 00 is
a constant output cadence. See
Section 7.3.1.4 for choices.
“T” Indicates output group
template 1. See Section 7.4.5 for
more information on output group
templates.
