Control Panel Installation

151295

4-16

4.6.1

Selecting 5824 Options

Configuring the 5824 includes the following steps:

Add the module to the system. JumpStart will add the module automatically (see Section 6.1). You can also
add it manually (see Section 7.2.2).

Select a name, if desired (see Section 7.2.1.1).

Select options for the printer and the output port. See below.

Printer and Output Port Options

1.

From the Main Menu, select 7 for Program Menu.

2.

Select 1 for Module.

3.

Select 1 for Edit Module.

4.

From the list that displays, select the 5824 module you want to configure.

5.

Press

ENTER

to bypass the next two screens. A screen similar to the one shown in Figure 4-18 will display.

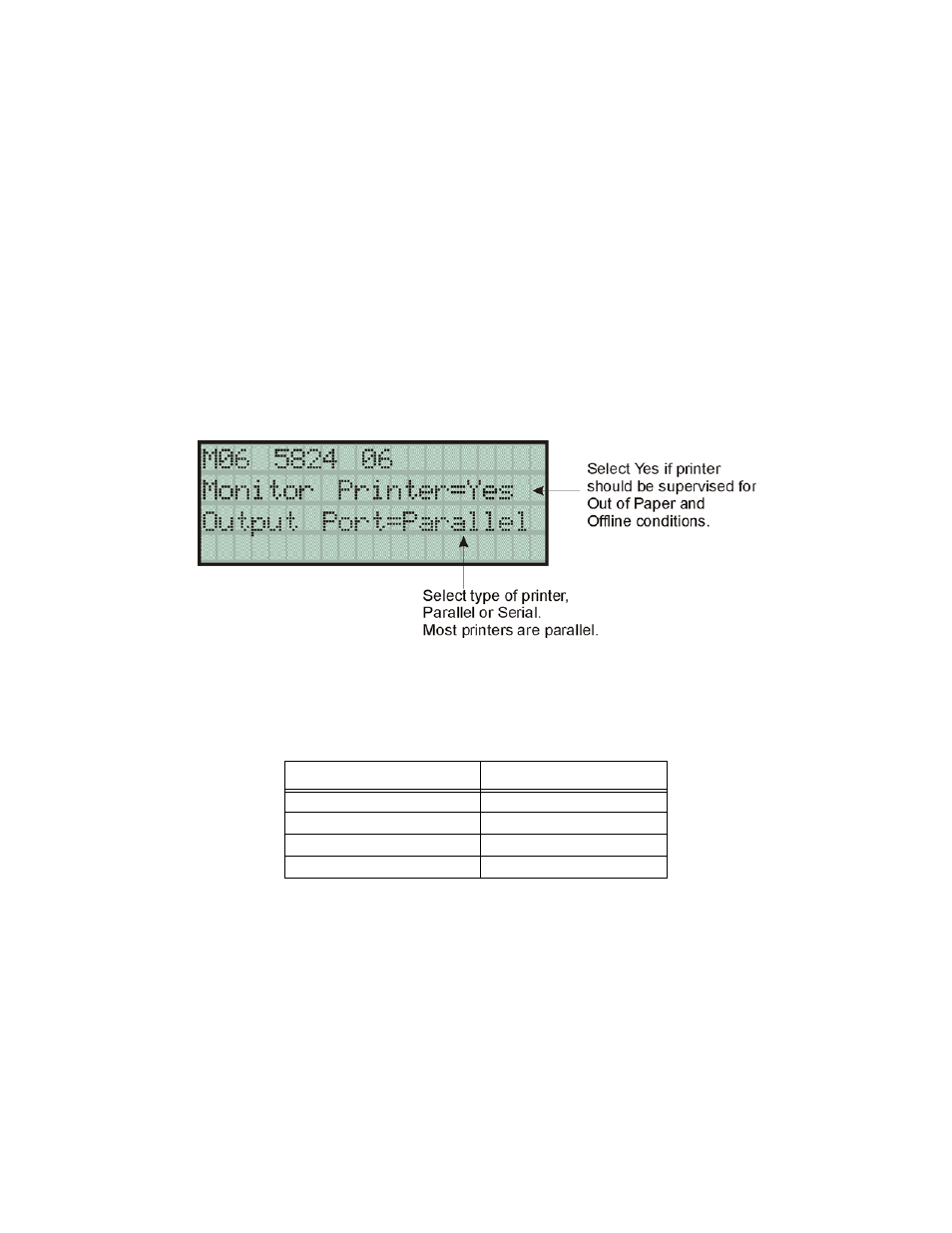

Figure 4-18 Selecting Printer and Output Port Options

6.

Select options for the printer as needed for your installation. Most printers are parallel.

7.

If you are using a serial printer, use the next screen to select serial port options as required for your printer.
Refer to your printer manual if you need more information.

Option

Choices

Baud Rate:

75 - 19200

Data Bits:

5 - 8

Stop Bits:

.5, 1, 2

Parity:

None, Even, Odd
