5. Enter the number of the zone you wish to view, then press ENTER .

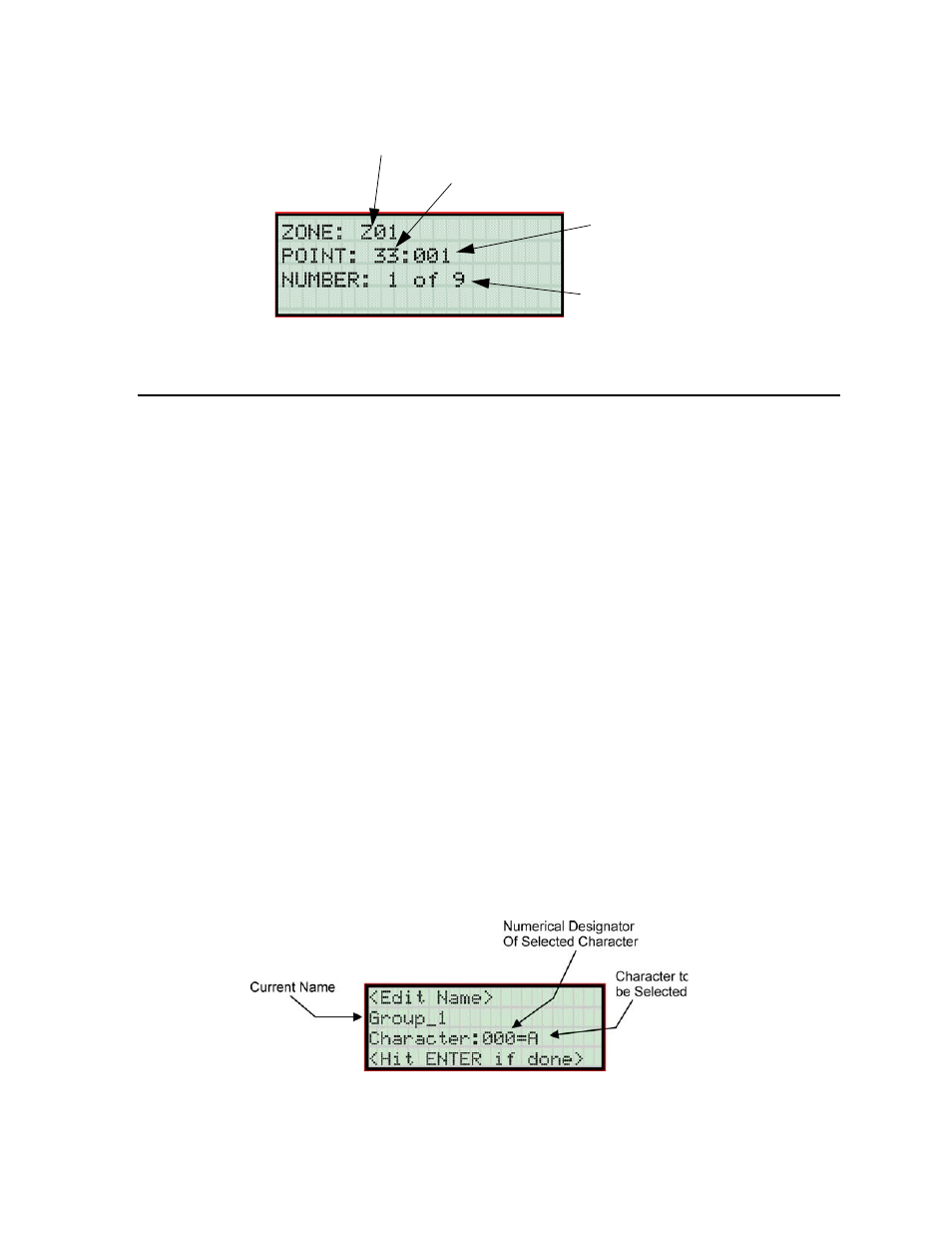

Figure 7-7 View Zone Points Screen
7.4 Group
An output group is made up of output points that have been programmed to respond in the same way. Output
groups simplify programming because you do not have to program each individual point. Once you have defined
the characteristics of output groups, you can assign each point to the appropriate group. Up to 125 output groups
can be defined.
7.4.1 Edit Group
In the edit group option you can program the name of an output group (Section 7.4.1.1) and change the properties
(Section 7.4.1.2) of that group.
To edit a group, follow these steps:
1. Enter the installer code.
2. Select 7 for Program Menu.
3. Press 3 to enter group menu.
4. Press 1 to edit group.
5. Enter the number of the group you wish to edit, then press ENTER .
7.4.1.1 Edit Group Name
6. To edit the group name, press 1.
A screen similar to the one shown in Figure 7-8 displays Refer to Appendix B for a list of available charac-
ters.
Figure 7-8 Selecting Character for Group Name
Zone Number
Module or
Device Address
Point Number
Total Number of
Points in the Zone
You can use words of numbers to display as a descriptive name or a group. Press the
number (see Appendix B) until the character is shown. Arrow left or right for
position, and press ENTER. to accept.
