illuminated.
Figure 4-26 Inserting Zone Description Labels
4.9 Configuring Modules
This section describes how to configure any system hardware modules that have been added to the system.
4.9.1 Assigning Module IDs
When installing a hardware module (such as, 5824, 5860, 5496, 5865-3 or 5865-4), you must use the DIP
switches on the module to assign an ID# to the module. Figure 4-27 shows all possible DIP switch positions and
their correlation to a numerical ID. For example, to select ID 2, place DIP switch 2 in the up position.

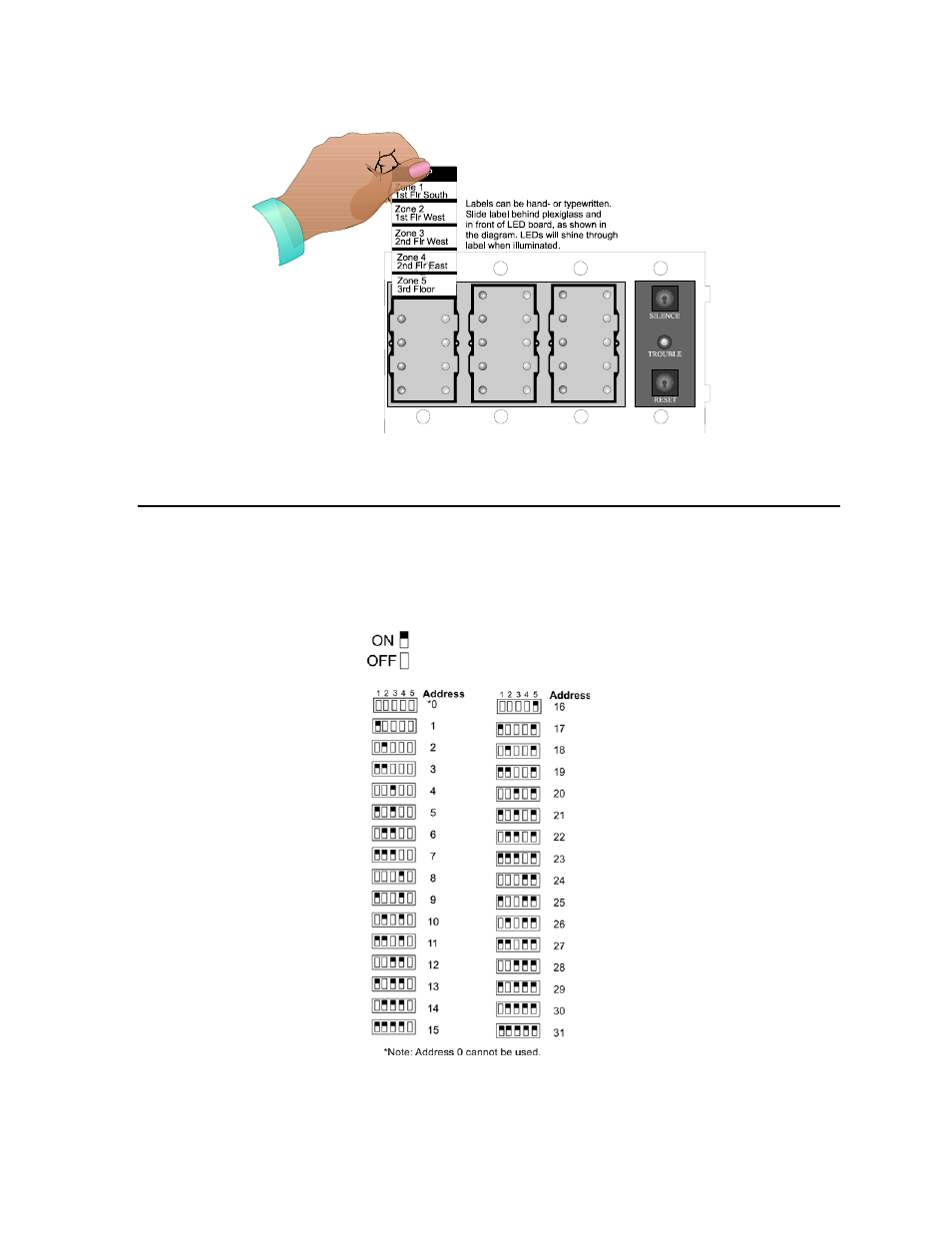

Figure 4-27 Possible module addresses
Refer to Section 7.2 to edit, add, delete, and view module list.
