Hardware Specifications
2-Port (Serial
Terminals) Power
Supply This table provides the specifications to purchase a power supply for a
DeviceMaster 2-port 1E/2E model with serial terminal connectors.
2-Port (DB9) Power
Supply This table provides the specifications to purchase a power supply for a
DeviceMaster 2-port 1E/2E model with serial terminal connectors.
External Power Supply: 2-Port
(Serial Terminal Connectors) 5-30VDC
Output voltage†
Current†
Power
5-30VDC
100 mA (Min) @ 24VDC
2.5 W
† Any power supply that meets current consumption, voltage,
power, and connector pinouts requirements can be used.

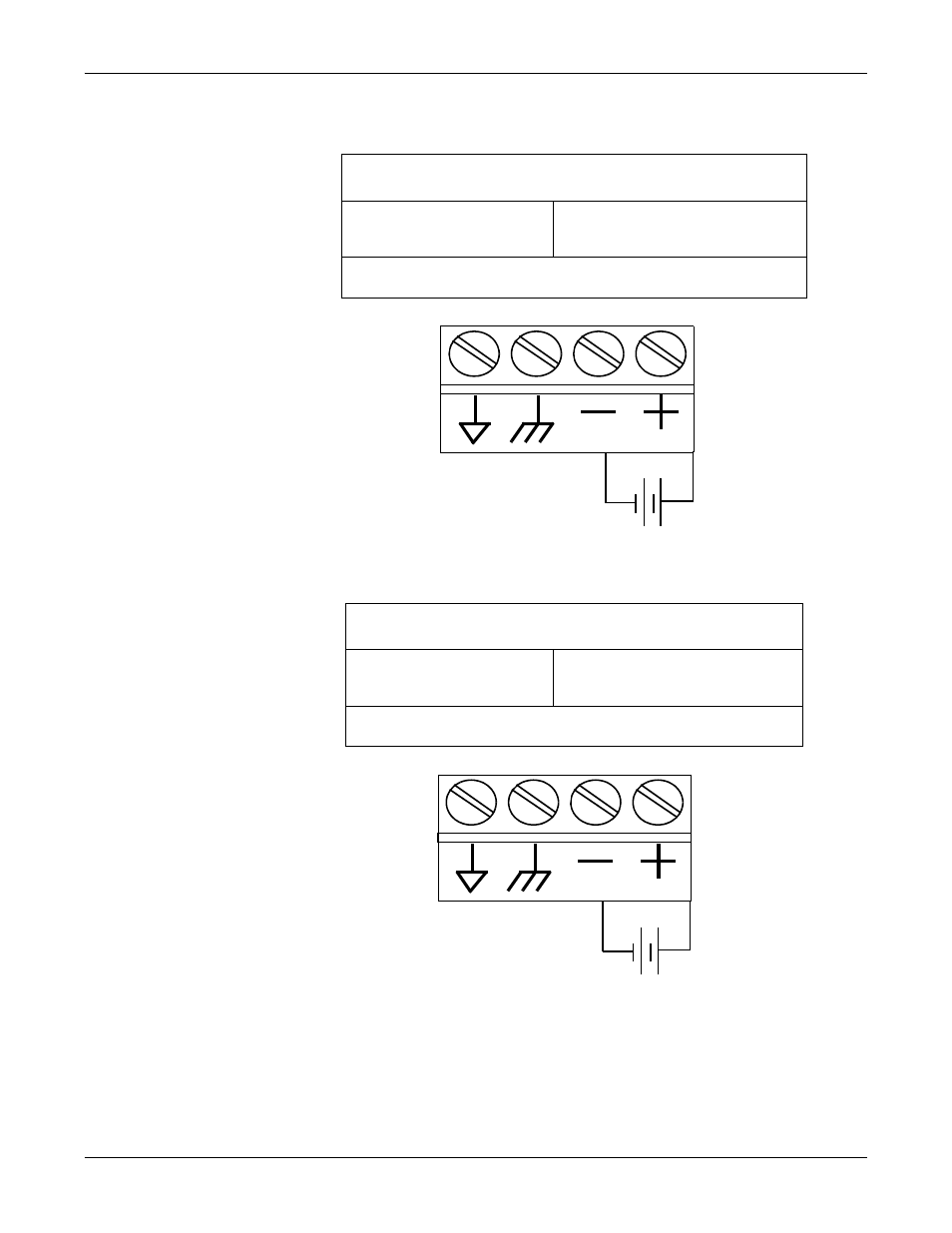

Signal
Ground†
Chassis
Ground†
Positive† Return†
External Power Supply: 2-Port
(Serial Terminal Connectors) 6-30VDC
Output voltage†
Current†
Power
6-30VDC
100 mA (Min) @ 24VDC
2.5 W
† Any power supply that meets current consumption, voltage,
power, and connector pinouts requirements can be used.
Signal
Ground† Chassis
Ground†
Positive† Return†
