2
CV-H5N-M-WW-NO2-E 2-7
4. The Virtual CV
The simulator operating environment must be created before the simulator can be run. This environment is called
the “Virtual CV” and creates a virtual CV-5001 series on the computer.
Settings, including camera settings [Image folder and Image data] and drive path [select virtual C/D drive] can be
set so that the simulator operates on the PC as outlined below.
Note
To the Chinese Windows OS (Traditional or Simplified) users:
Use only single-byte alphanumeric characters for the following places. The software does not supports other characters.
Virtual CV Settings:
• Virtual CV name • Location of Test Image • Test Image File • Program Location
Windows account name
There is no limit to the number of virtual CVs that may be created, a large number of different simulated
environments can be created and interchanged. This allows you to create simulator environments as needed for
each of the 8 possible CV-5001 series that can be connected.

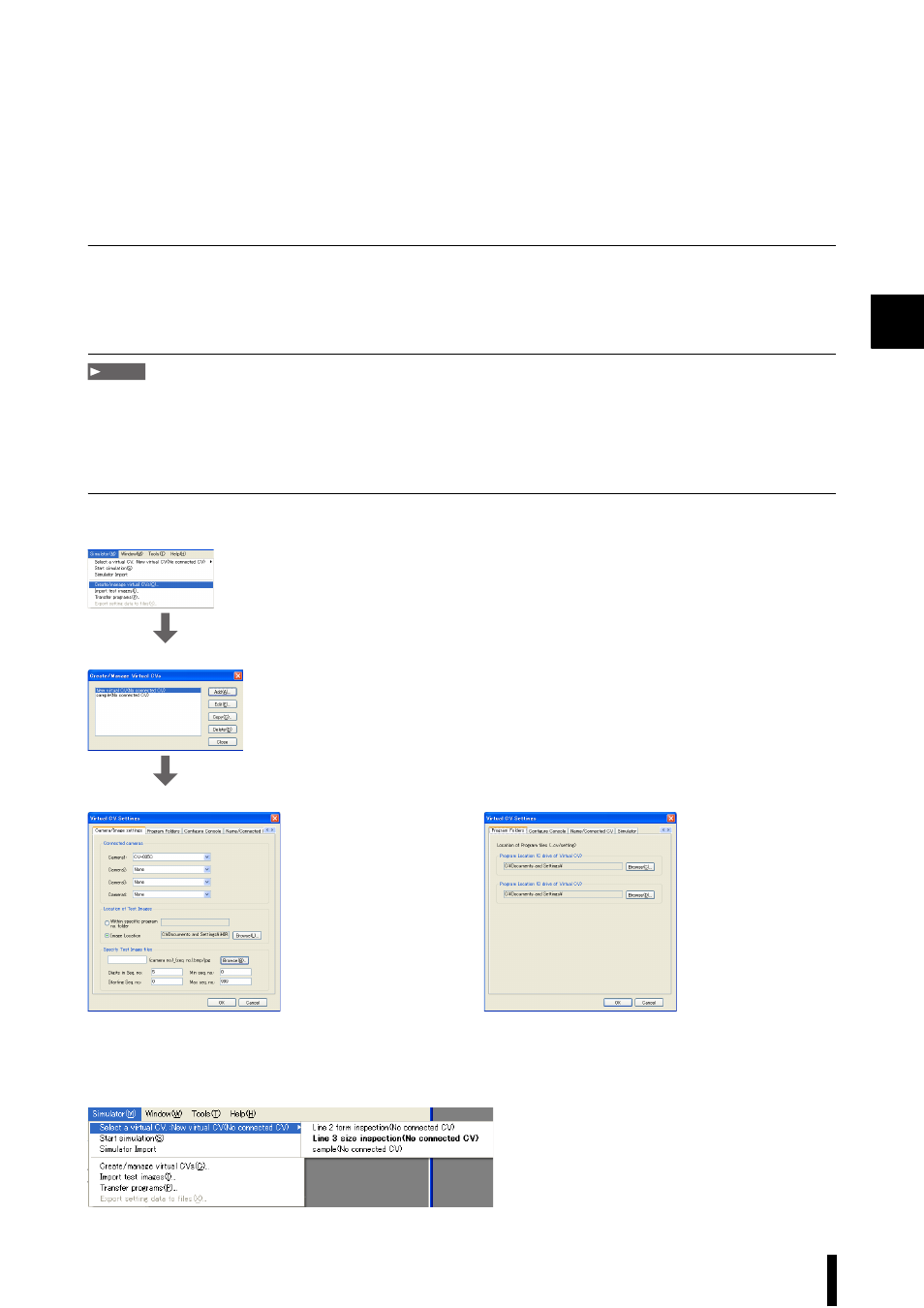

Simulator -> Create/manage virtual CVs
Line 3 size inspection(No connected CV)
Virtual CV Settings_Camera/Image settings Virtual CV Settings_Program Folders
Simulator -> Select a virtual CV. :Line 3 size inspection(No connected CV)
