3
| Preparing the Instrument
90
| NGC Chromatography Systems and ChromLab Software
Module Review
The NGC systems are shipped in one of three standard configurations. Preparing
the NGC systems differs slightly depending on the configuration.
Tip:
For information about adding, removing, or moving modules, see
Replacing or Repositioning Modules on the NGC Instruments on page
.
Standard NGC System Configurations

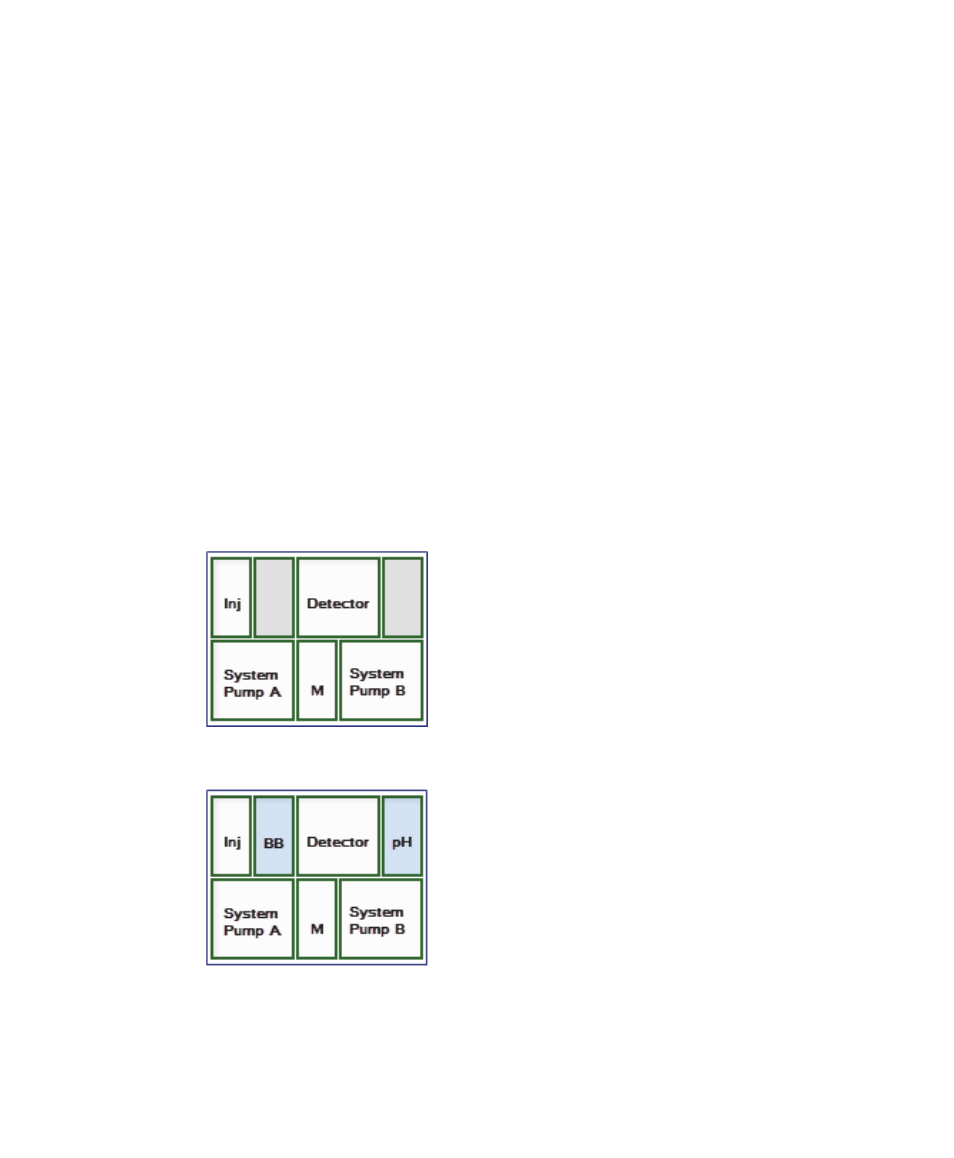

The standard NGC system configurations are depicted in the images that follow.
86 lists specific information about each configuration.
Note:
Each configuration can be converted to another by adding or removing
modules. The configuration at your site might differ slightly from the
configurations shown below.
NGC Quest™ Chromatography System
NGC Scout™ Chromatography System
