Mixer
Instrument Guide
| 61
Mixer

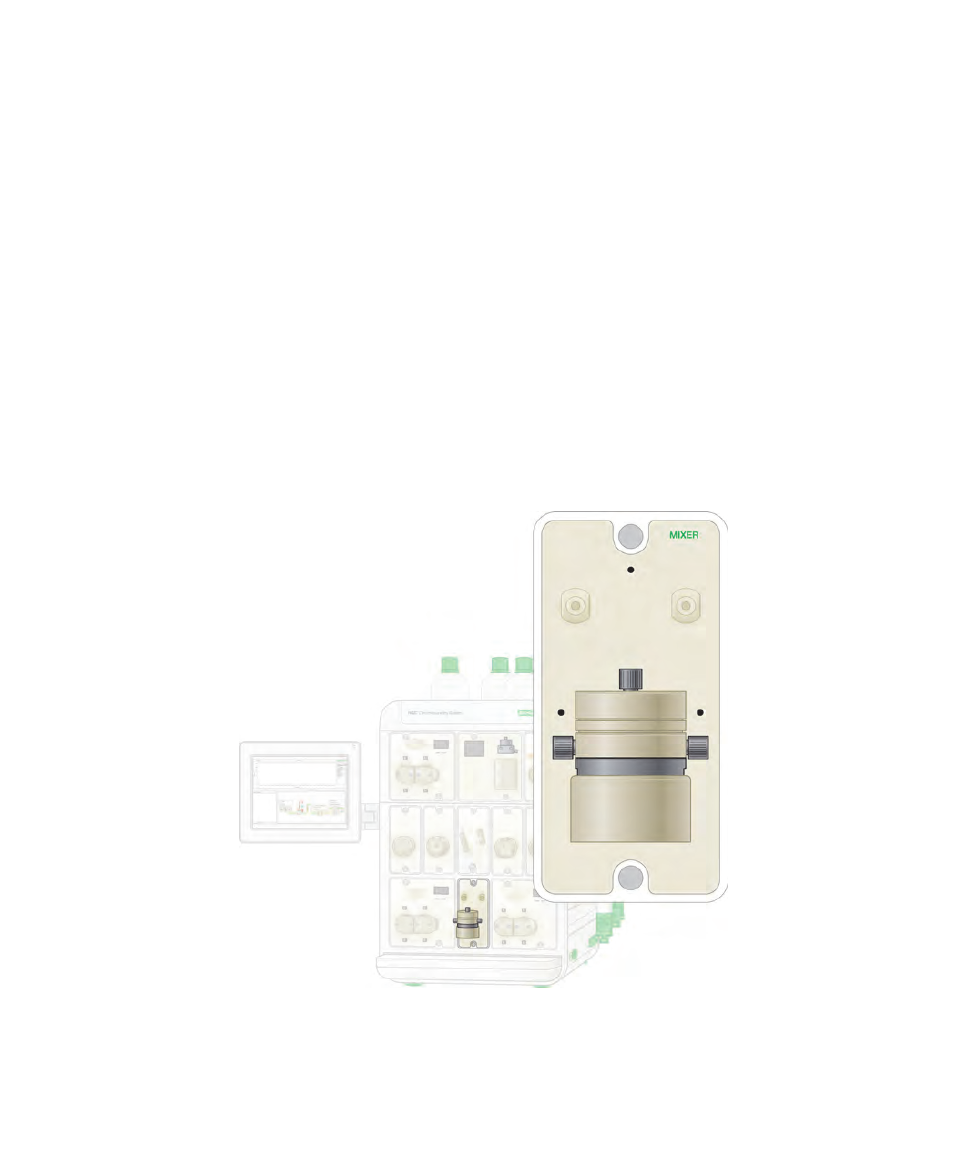

The mixer module consists of a mixer assembly and an integrated system pressure
sensor. This module homogenizes the buffers proportioned by the two system
pumps and the buffer blending valve (if present). The pressure sensor, located in this
module, monitors the NGC system pressure.
The mixer module is located between the two system pumps (A and B). It is
plumbed so that flow from the two system pumps
1.
Enters at the mixer assembly base
2.
Exits the mixer assembly top
3.
Passes through the system pressure sensor
4.
Flows to the inject valve
