Plumbing NGC Systems
Instrument Guide
| 281

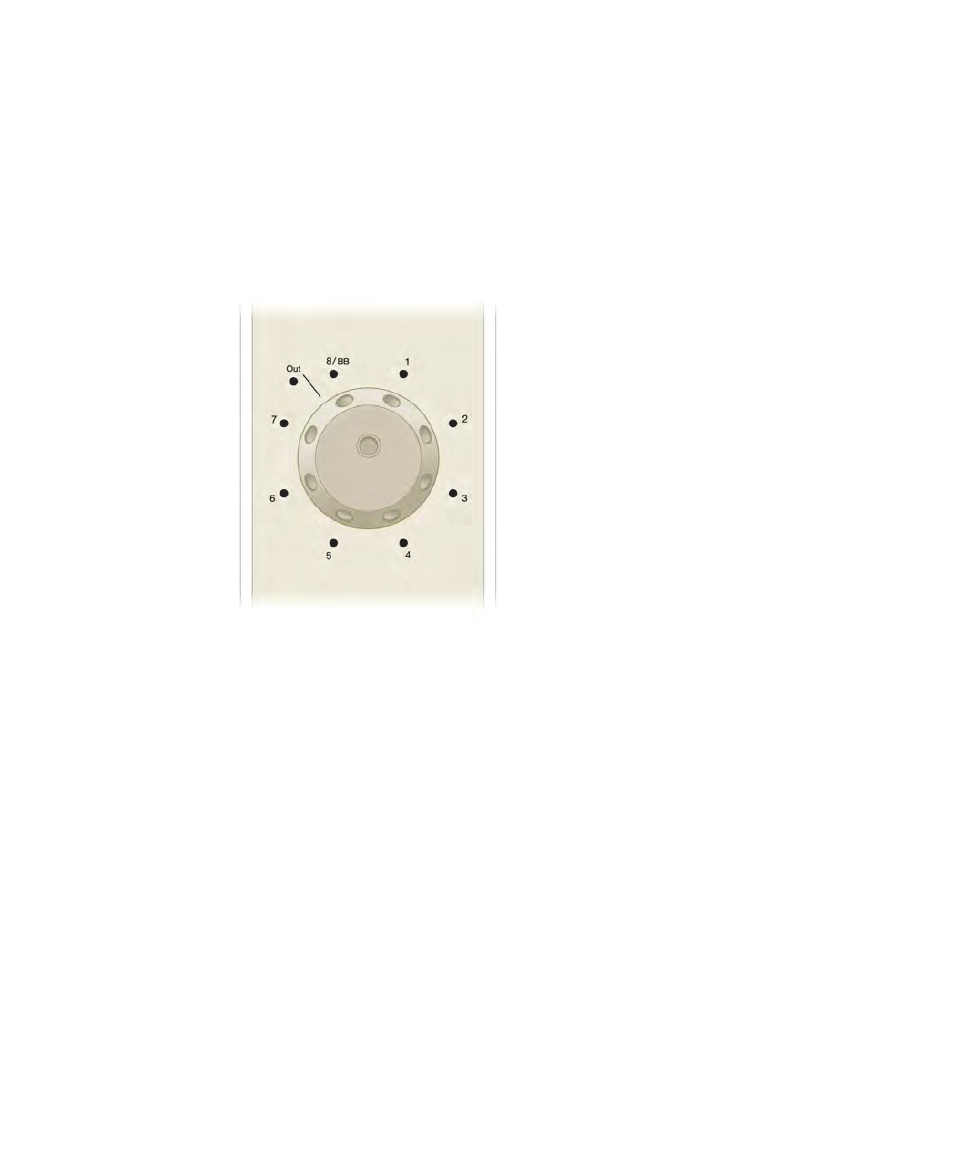

To plumb the buffer inlet valves
1.
Connect tubing from Outlet A on the buffer blending valve to port 8/BB on
buffer inlet valve A.
2.
Connect tubing from Outlet B on the buffer blending valve to port 8/BB on inlet
valve B.
3.
Connect tubing from the Out port on inlet valve A to the inlet manifold of system
pump
A.
4.
Connect tubing from the Out port on inlet valve B to the inlet manifold of
system pump
B.
5.
(Optional) Connect inlet tubing to ports 2–7 on both buffer inlet valves A and B.
To plumb the sample pump
1.
Connect inlet tubing to the sample pump inlet manifold.
2.
Immerse the other end of the inlet tubing in a bottle of degassed, deionized
water.
3.
Connect outlet tubing to the Sample Pump port on the sample inject valve.
