Appendix K. VersaDoc
K-5

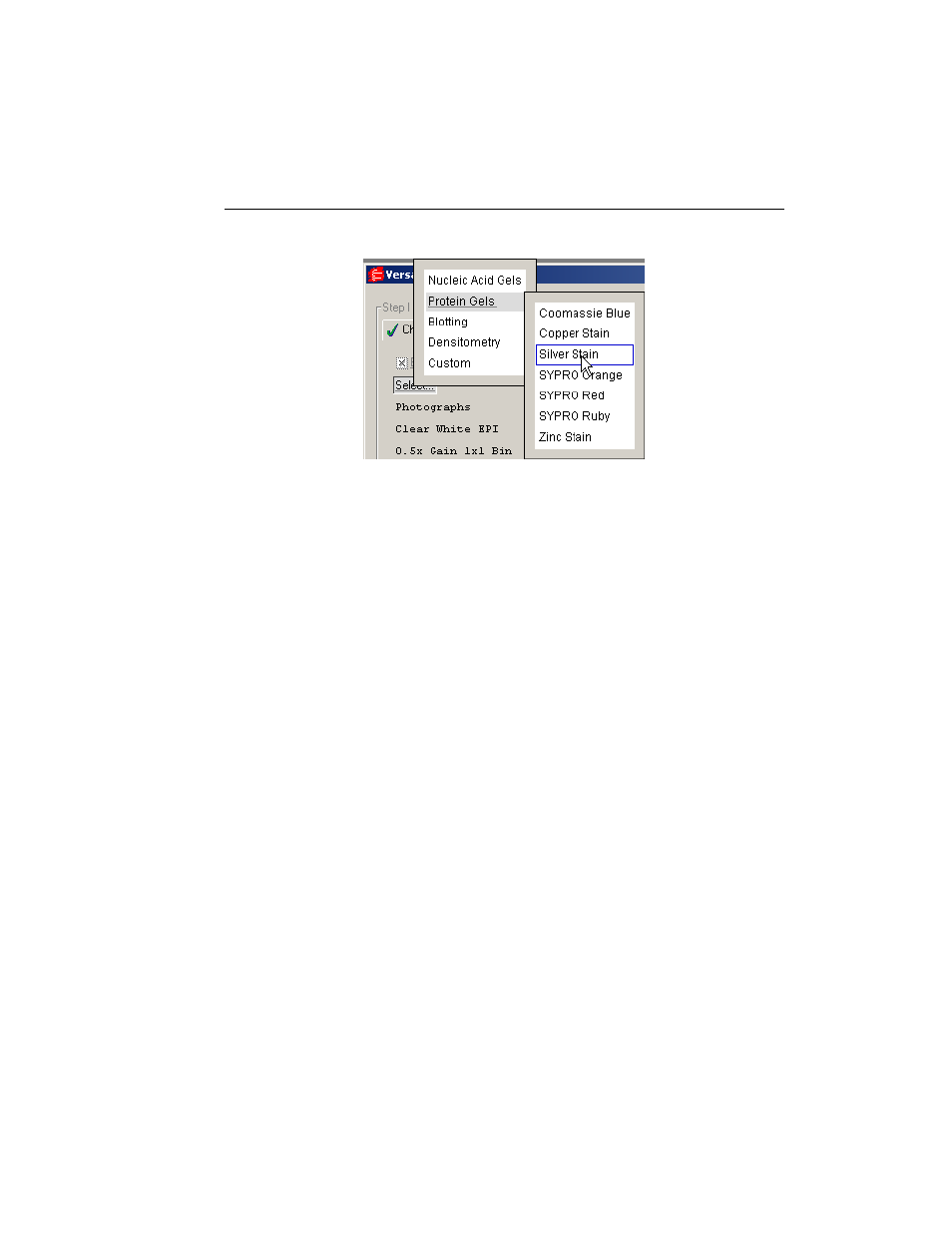

Fig.K-3. The application tree in the VersaDoc acquisition window.
Note: If you select an application that requires trans white illumination, you will need
to place the white light conversion screen on the sample stage area.
To exit the tree without selecting, press the Esc key or click outside the dialog box.
Your selection will be displayed below the Select button.
Custom Applications
If your application is not listed, if you want to use a user-installed filter, or if you want
to set the gain and bin settings manually, you can create and save your own custom
applications.
From the application tree, select Custom, then Create. This will open a dialog box in
which you can name your application and select your settings.
