PDQuest User Guide
5-12
Each matched spot is marked with a green letter in the Master and the matched gels.
Unmatched spots in the member gels are marked with red circles. Auto-matching
should successfully match most of the spots in the MatchSet.

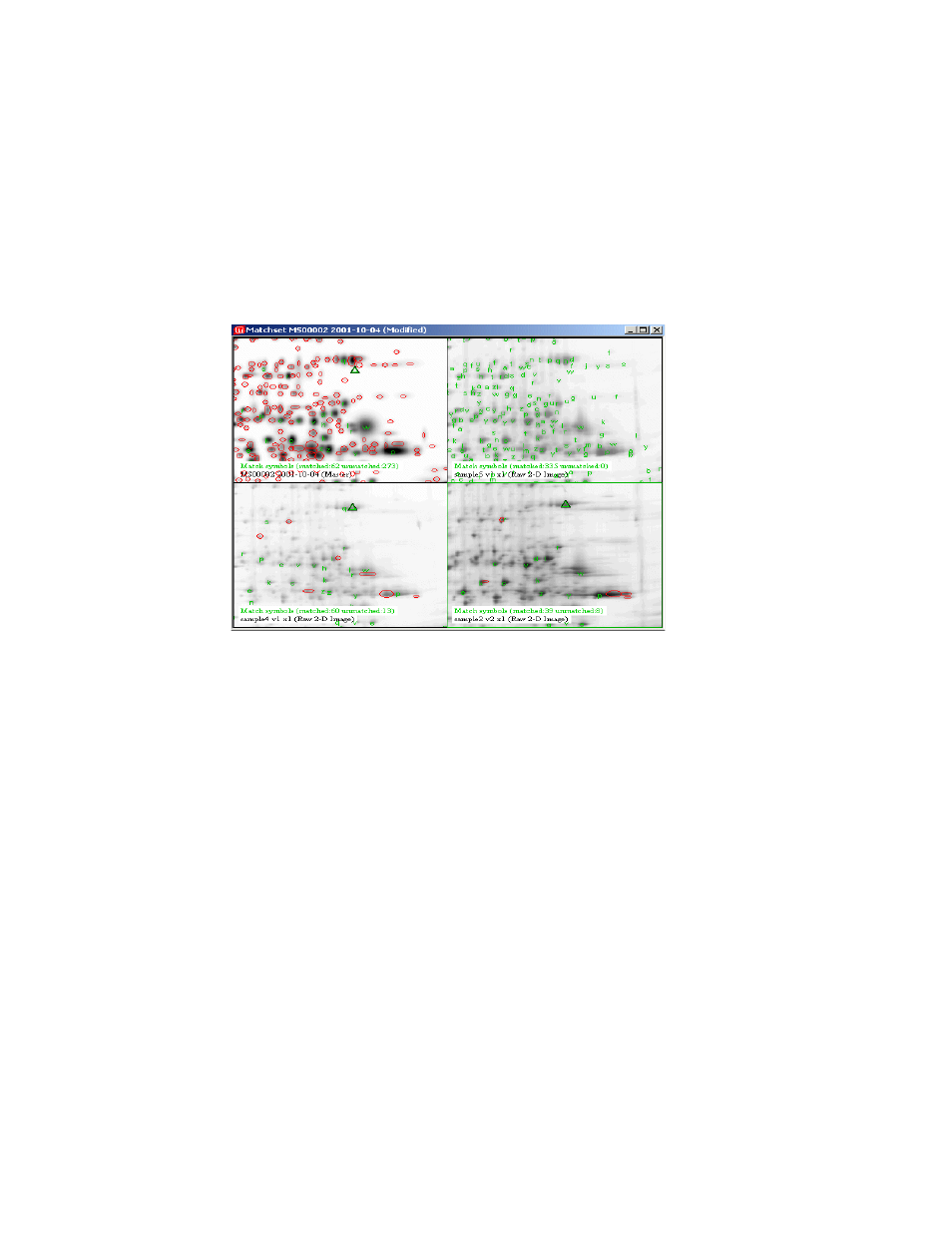

Fig. 5-8. Matched spots are marked with letters; unmatched spots are circled.
If multiple unmatched spots appear in certain areas of the gels, review these areas
using the Match > Show Offsets (F7) command, and add more landmarks to facilitate
auto-matching.
5.3.a Editing MatchSets
The commands for editing a MatchSet are located on the Match > Edit Matches
submenu or the Match > MatchSet tool. The Edit MatchSet dialog is similar to the
Create MatchSet dialog. See 5.1, Creating a MatchSet. The exception is that there is
no Close original image windows after creation option.
