Appendix I. Personal FX
I-3

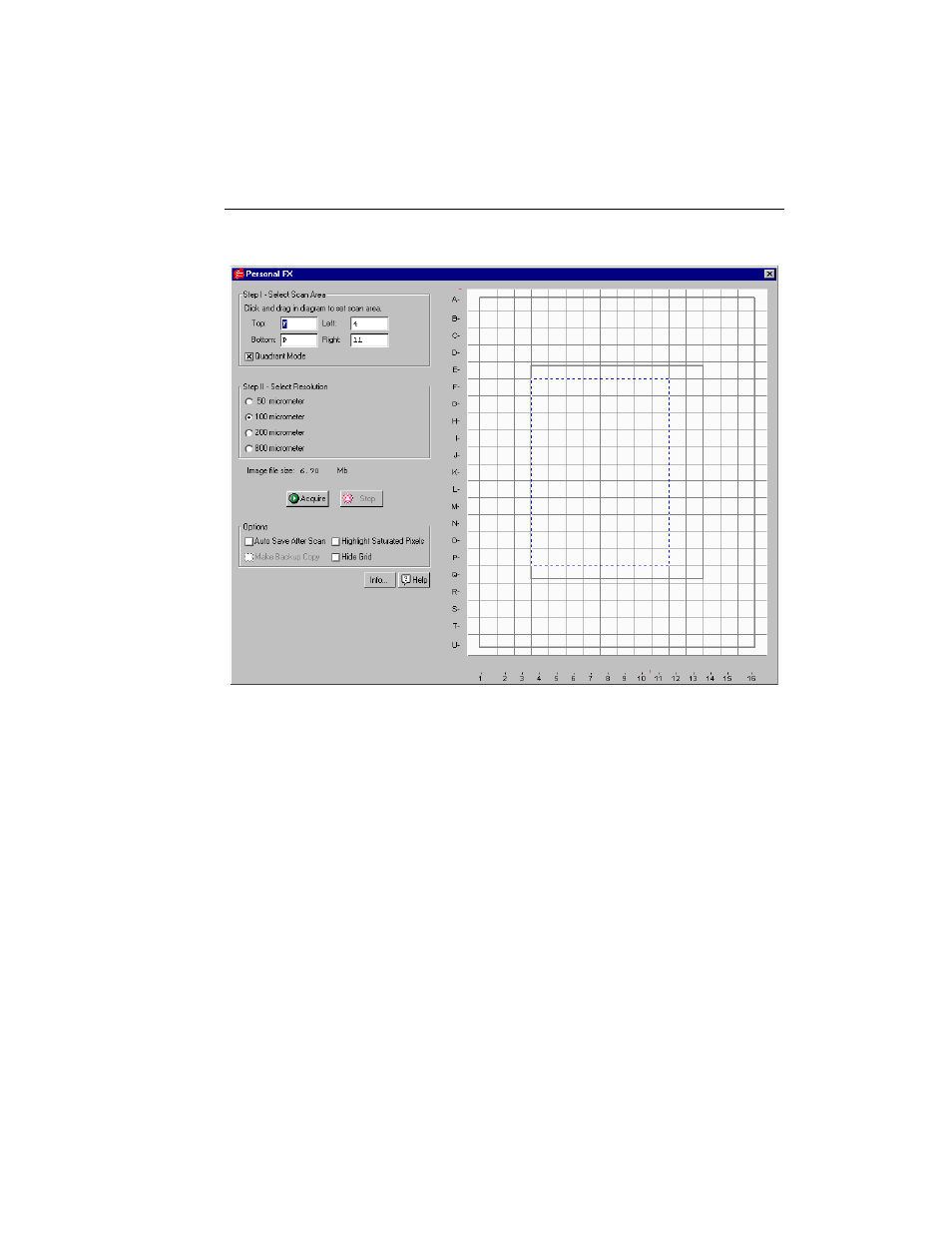

Fig.I-2. Personal FX acquisition window
The default scanning window is marked by grid lines that divide the area into
quadrants. There is also an outer box and inner box marked by thicker lines. The
quadrants are numbered 1–16 left to right and lettered A–U top to bottom.
If you prefer a scanning window measured in centimeters, deselect the Quadrant
Mode checkbox in the control panel by clicking on it. To hide the gridlines, click on
the Hide Grid checkbox under Options.
The control panel has been arranged from top to bottom to guide you through the
acquisition procedure. There are three basic steps to scanning an image using the
Personal FX:
1. Select the scan area
