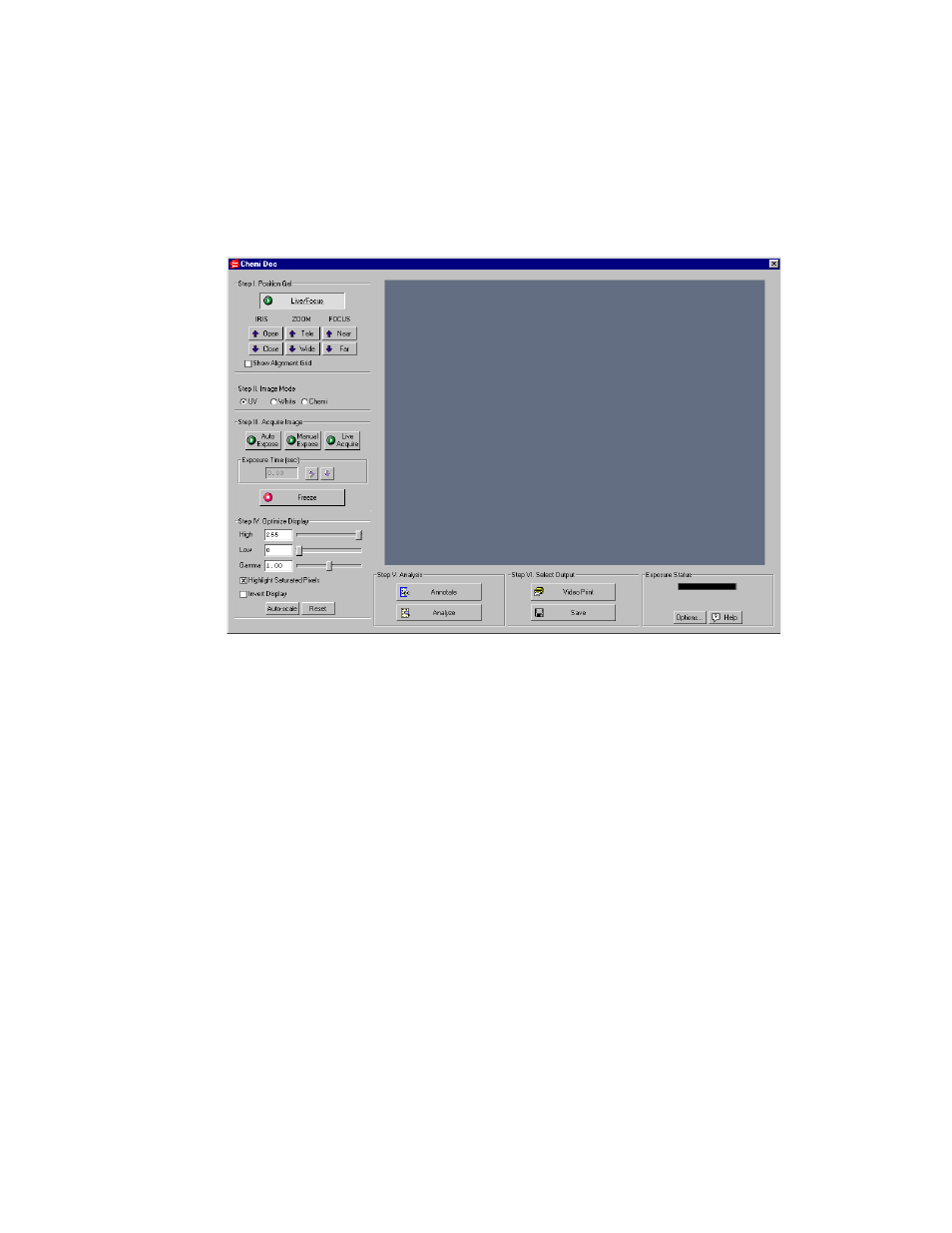

Fig.B-2. ChemiDoc acquisition window
The ChemiDoc video display window will open in “live” mode, giving you a live
video display of your sample. If no image is visible, make sure the camera is on,
check the cable connections, make sure the iris on the camera is not closed, and make
sure that the protective cap is off the camera lens. Also check to see that the
transilluminator is on and working.
The control panel has been arranged from top to bottom to guide you through the
acquisition procedure. There are six basic steps to acquiring an image using the
ChemiDoc:
1. Position and focus the gel or other object to be imaged.
2. Select Mode.
3. Acquire the image.
