Fault Location Mode
77
Saving The Measurement
You can save the trace and recall and review it at a later time (refer to
Save Trace, page 80).
Printing
The Bird Site Analyzer can print the information displayed on the
screen to any HP Deskjet printer that supports the PCL Level 3 proto-
col. To print the screen image, first hold the image (Figure 33,
page 69) then press the Print softkey (Figure 40, item 1).
Note: If you press the Print softkey when there is no
printer connected, the unit will try to print and then display
the word ERROR beside the softkey. To clear the error, select
Mode>Utility>Printer, then press the Printer softkey a second
time to reset the system.

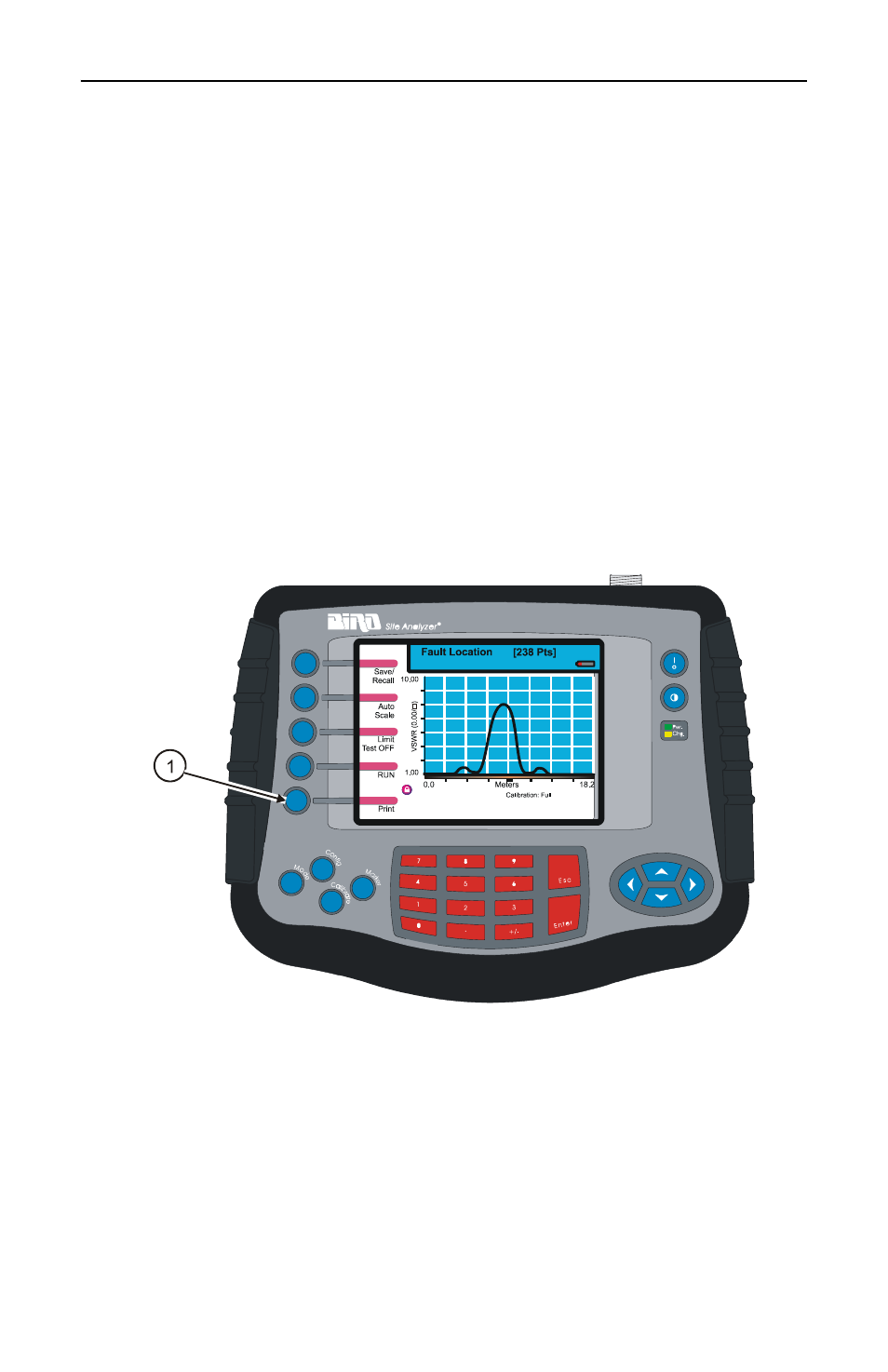

Figure 40 Print the Screen Image
