Save and Recall
85
Changing (editing) Label Text
You can change the label text on a saved item. You must be in either
Measure Match mode or Fault Location mode to edit a label text.
1. Press the Save/Recall softkey to display the list of saved items.
2. Press the up or down scroll key to select an item to edit.
3. Press the Label softkey (Figure 46, item 1) to enter the label text
screen.
4. Follow the numbered steps in Figure 43 on page 81 to select, delete,
and enter characters then press the Enter key to save the changes.
Note: When you make changes to label text, the only typing
option is overstrike. You can type over any character or space,
but you cannot insert characters and have the remaining text
move to the right.
Note: You cannot edit the system generated sequential
number or the date-time stamp and the resolution setting.
5. Press the Esc key to exit the Save and Recall screen.

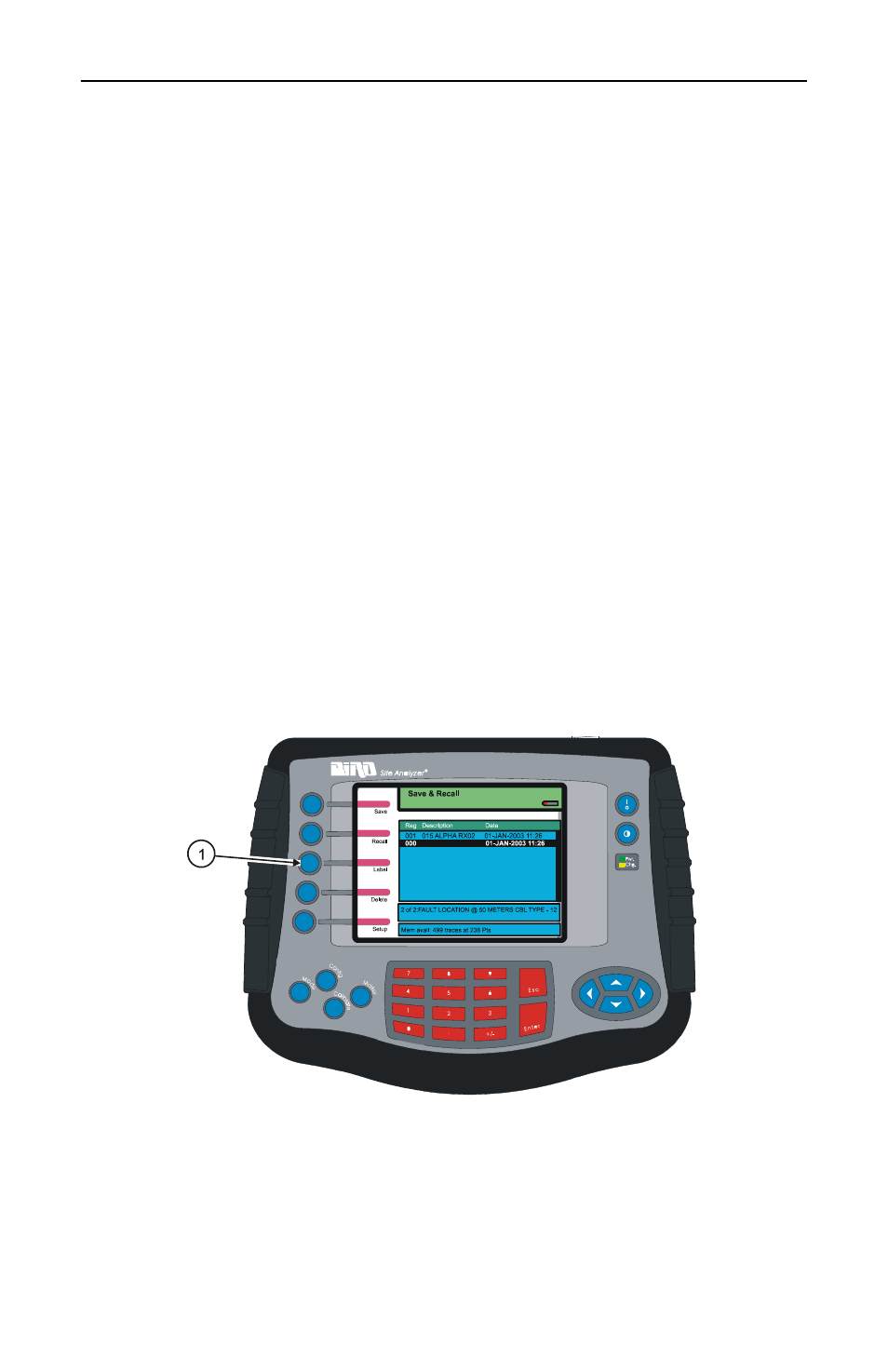

Figure 46 Edit Label Text
