Bird Technologies

6

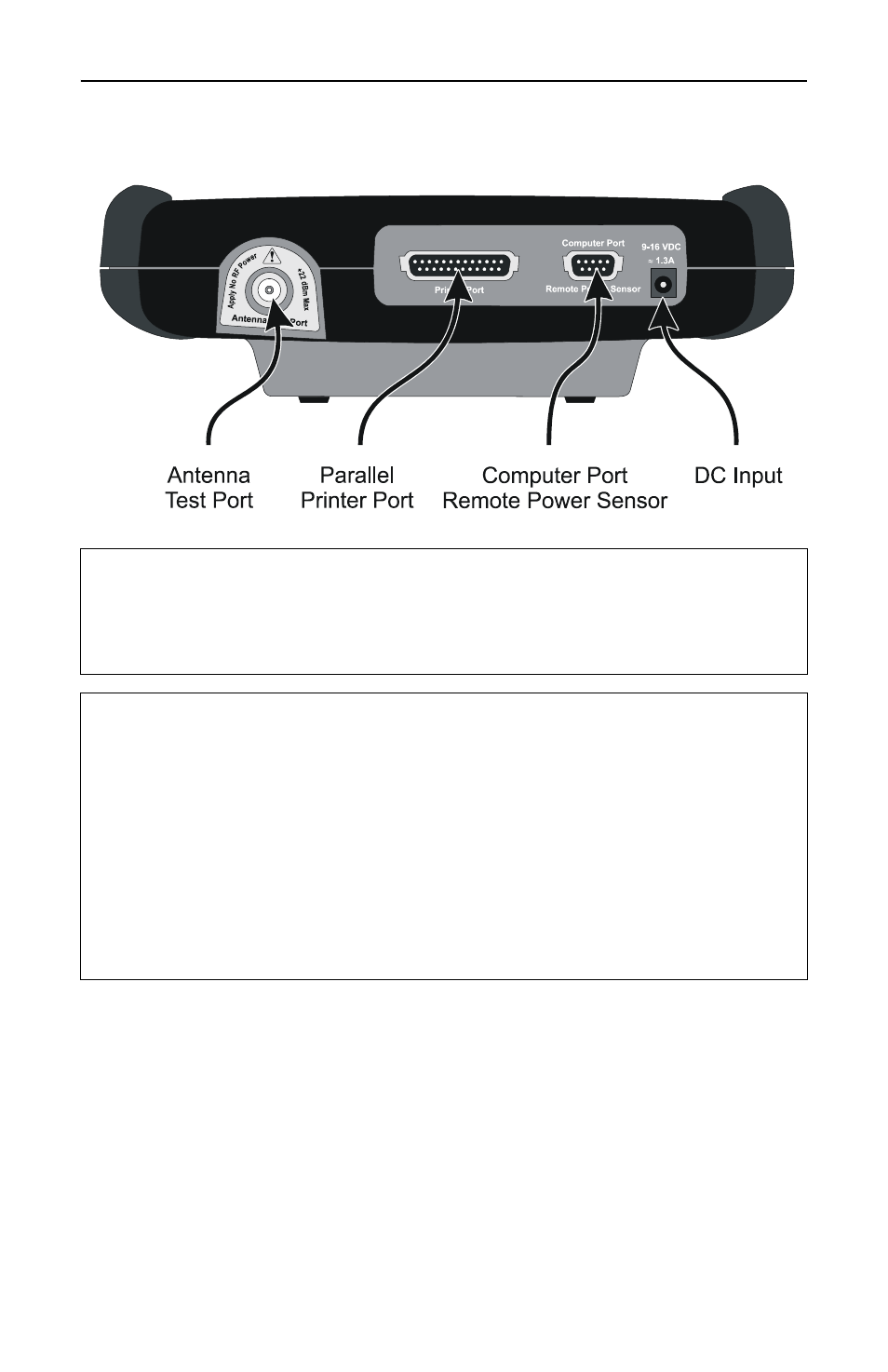

Connectors

Power Supply

Internal Battery
The Bird Site Analyzer has an internal, rechargeable, lithium-ion bat-
tery pack. This will operate the unit for a minimum of 3 hours of con-
tinuous usage. Recharging time, from a full discharge, is
approximately 4 hours.

Note:

When the unit is received the battery may not be

fully charged. An ac adapter should be used when operating
the unit for the first time.

CAUTION

+22 dBm max. input

Do not apply RF power to Antenna Test Port. Exceeding the

maximum input will damage the Site Analyzer.

Antenna Test Port

Female N connector for connecting to the antenna.

Use a phase-stable cable for best results.

Parallel Printer Port

25-pin (DB25) parallel connector for connecting to

HP-type inkjet printers. Pinter cable not included.

Computer/Power

Sensor Port

9-pin RS-232 (DB9) serial connector for connecting

to a PC or to Bird power sensors.

DC Input

Input for external power supplies. Plug either the

ac power supply or the cigarette lighter adapter

into the dc input. The external supplies operate the

unit and charge the internal battery.
