Fault Location Mode

59

Setting the Scale & Unit of Measure

You can set the display scale manually or by using Auto Scale. The

display trace can be in units of return loss [dB] or VSWR [ratio]. You

can activate Auto Scale from the configuration screen or from the

main Fault Location screen.
1. Follow the numbered steps in Figure 27 on page 59 to set the scale

units.

2. Follow the numbered steps in Figure 28 on page 60 to set the scale

limits.

3. Follow the numbered steps in Figure 29 on page 61 to set Auto

Scale from the Configuration screen

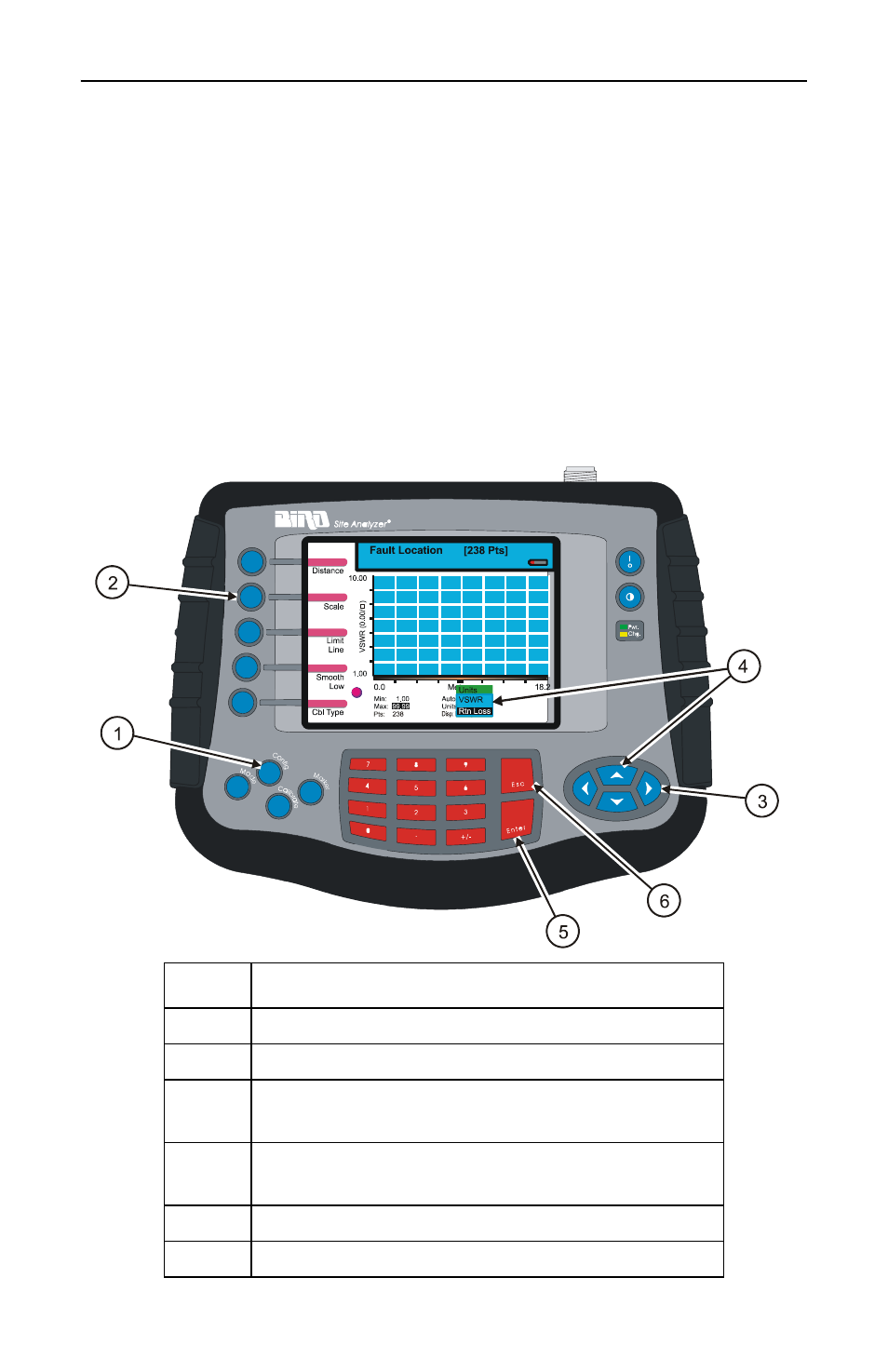

Figure 27 Setting Fault Location Scale Units

Step

Action

1

Press the Config key

2

Press the Scale softkey

3

Use the left or right scroll keys to select
Units

4

Use the up or down scroll keys to activate the
units menu and to select the units you want.

5

Press the Enter key.

6

Press the Esc key to exit the configure screen
