Display Description

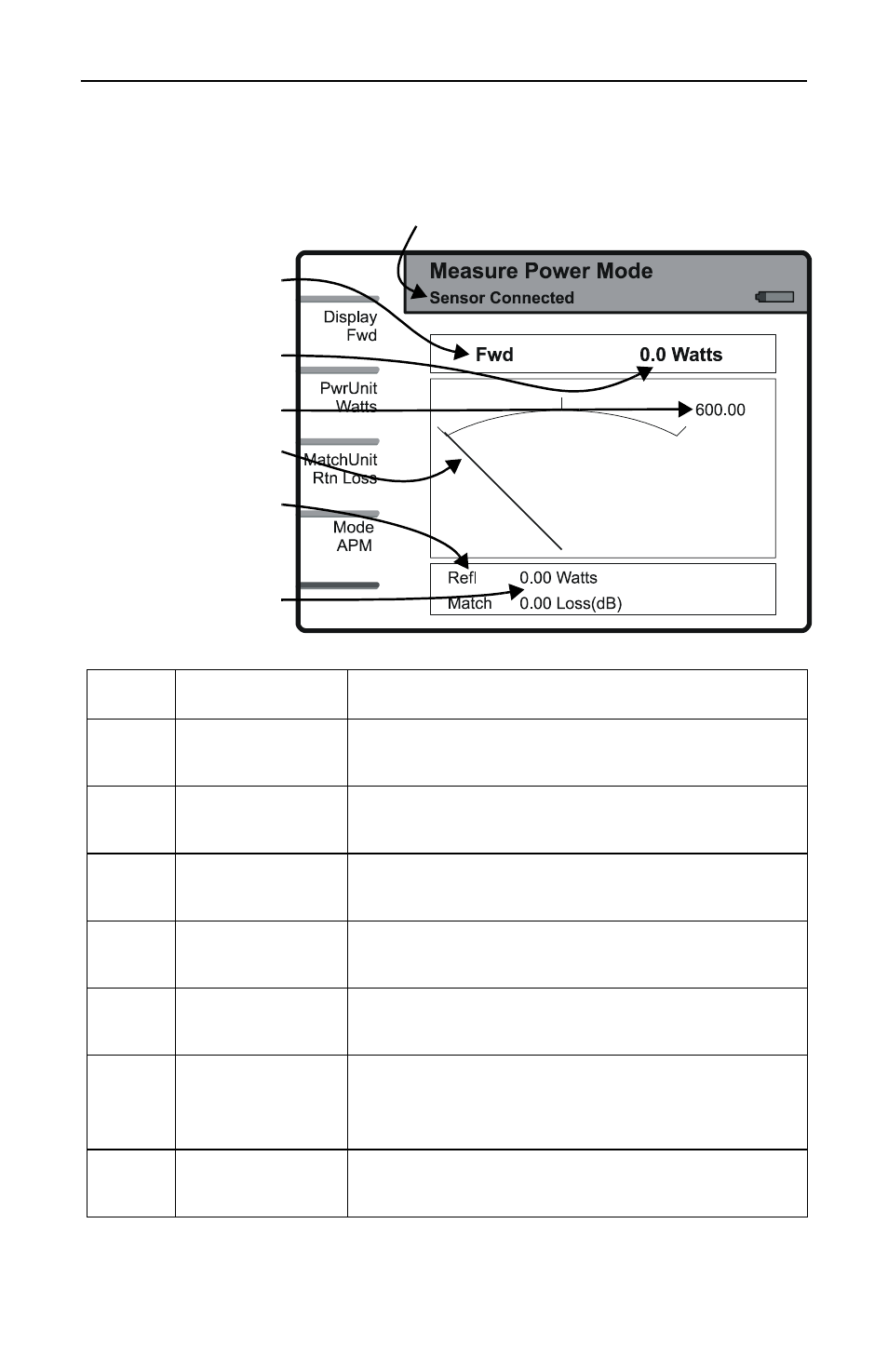

Figure 57 Measure Power Screen Features
Measure
Power
Sample
Display,
with a
sensor
properly
connected
Item Description Explanation
1 Sensor Status Indicates the connection status of the
power sensor.
2 Primary Mea-
surement Identifies the measurement displayed on
the analog dial.
3 Primary
Value Numeric display of the primary value.
4 Measurement
Scale Indicates the dial’s full scale.
5 Dial Graphic display of the primary measure-
ment.
6 Secondary
Measure-
ments Identifies measurements not displayed on
the dial.
7 Secondary
Value Numeric display of secondary values.
1
2
3
4
5
6
7
