Fault Location Mode
•
Transform Algorithm - Fast Fourier Transform (FFT) with
three levels of smoothing.
•
Distance units can be either feet or meters.
•
Measurement units can be Return Loss [dB] or VSWR [ratio].
Transmitter Test
Measure Power Mode
•
Numerical readout and analog dial.
•
Can display either forward power, reflected power, or match
efficiency depending upon the sensor.
•
Power measurement units can be either Watts or dBm. Match
units can be VSWR, return loss, or % match efficiency.
•
Compatible with Bird Directional Power Sensors, Terminating
Power Sensors, VSWR Alarms, and Broadcast Power Monitors.

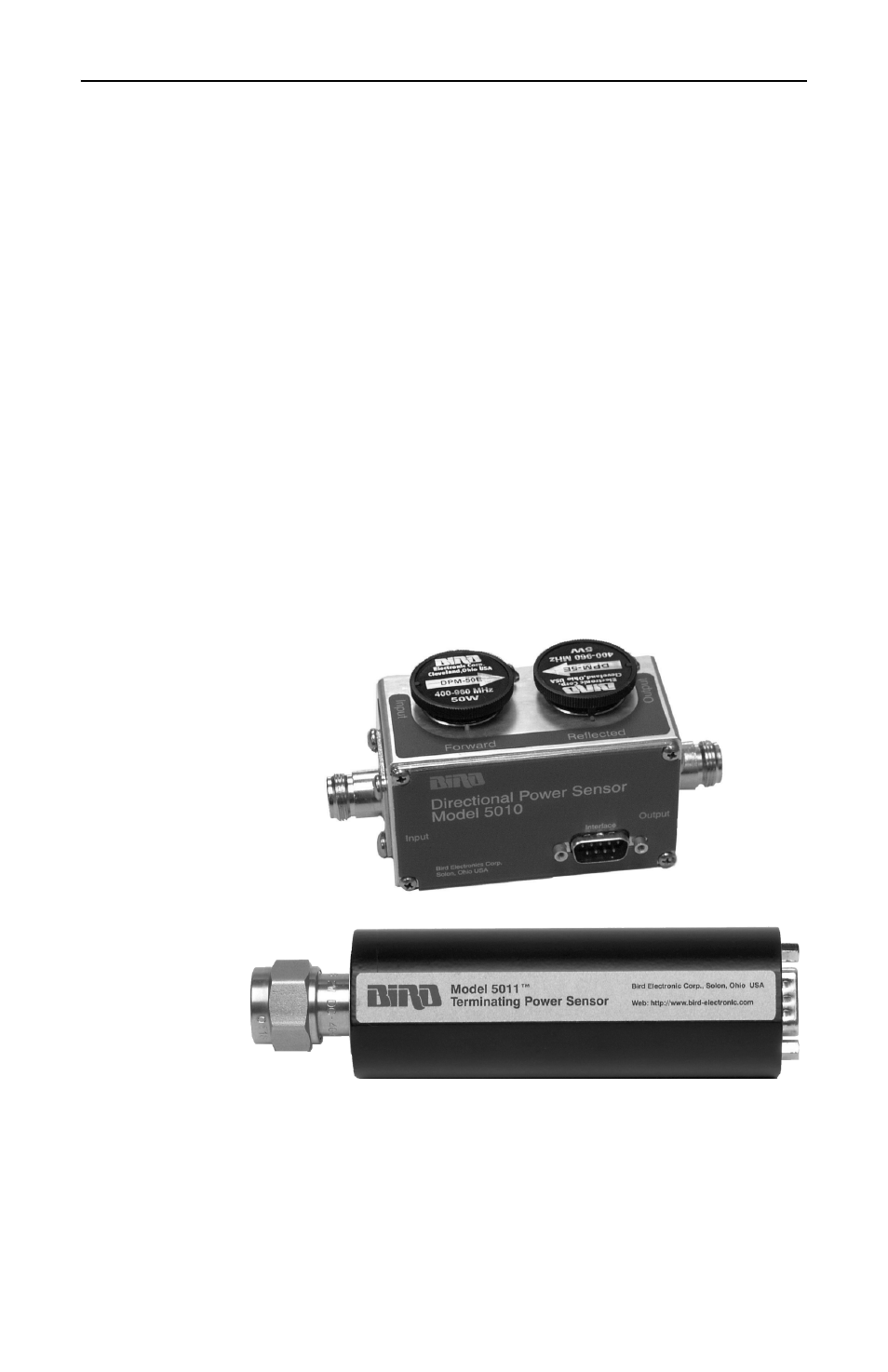

Bird 5010B
Directional
Power
Sensor
Bird 5011 or
5011-EF
Terminating
Power
Sensor
