Chapter 6 Measure Power Mode
Note: The figures in this chapter do not show the entire
Site Analyzer. The figures show only the screen image and the
keys you press to accomplish a setup or measurement.
Note: Power measurement comes standard on all models
except the SA-1700EX. To upgrade a SA-1700EX to a SA-
6000EX, which has power measurement capability, please con-
tact Customer Service.
This measurement verifies and monitors the condition of the transmit-
ter system. Multiple measurement values can be simultaneously dis-
played, depending on the sensor. One measurement is also displayed
on an analog dial. Sensors compatible with the Bird Site Analyzer
include Bird VSWR Monitors and Broadcast Power Monitors, as well
as the Bird 5010B, 5011, and 5012.

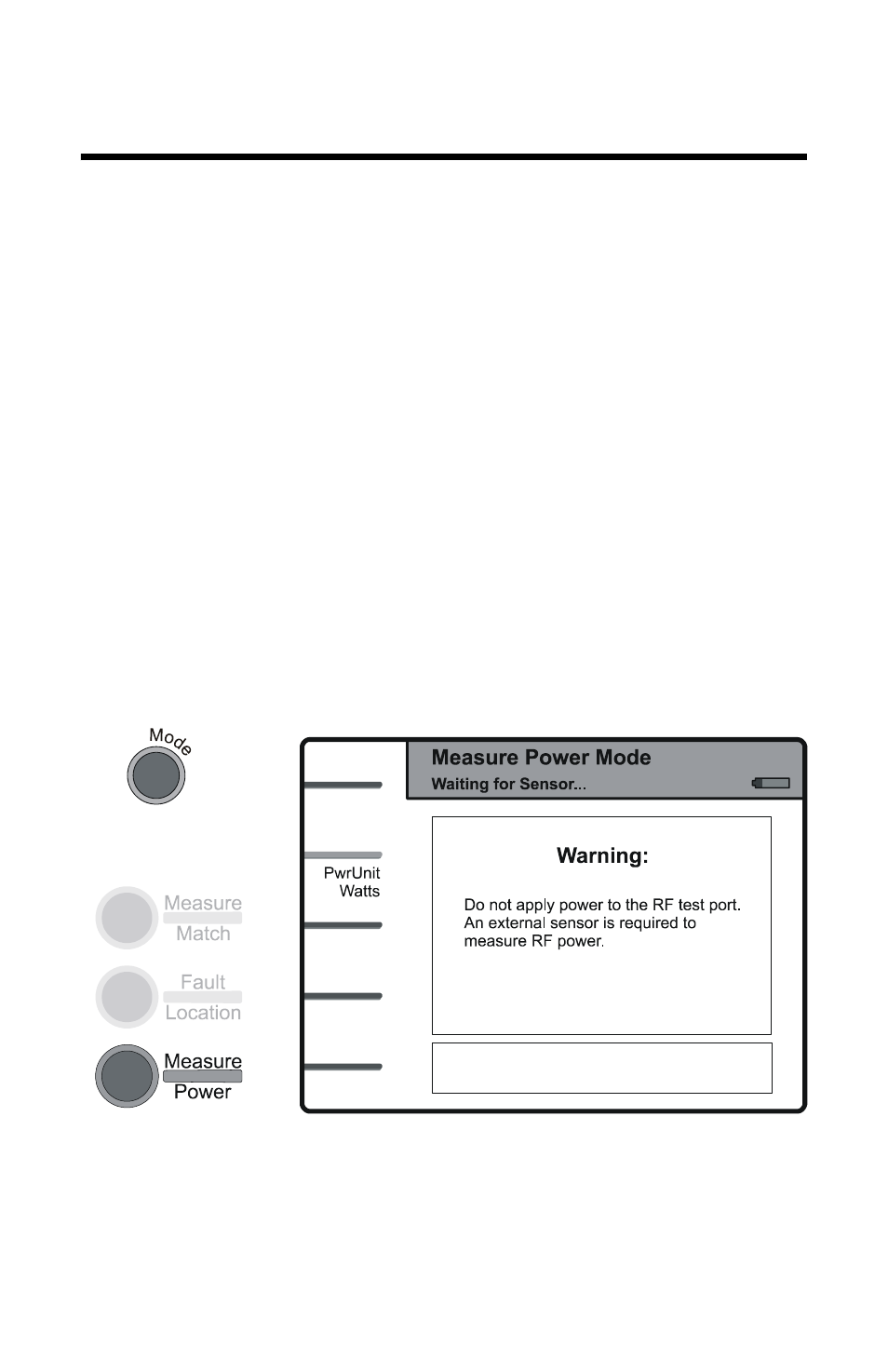

Press the keys indicated in the following figure to enter the Measure
Power mode.
Press the
Mode key
Press from
Select Mode
