Measure Match Mode

19

Note:

If you enter a frequency that is outside of the range

of the Site Analyzer, the Site Analyzer will override your entry
and set the minimum or maximum frequency of the model.

1. Make sure that the unit is turned on and in the Measure Match

mode (refer to Select the Measure Match Mode, page 18).

2. Follow the numbered steps in Figure 4 on page 19 to set a custom

frequency or follow the steps in Figure 5 on page 20 to select from
a preset band list.

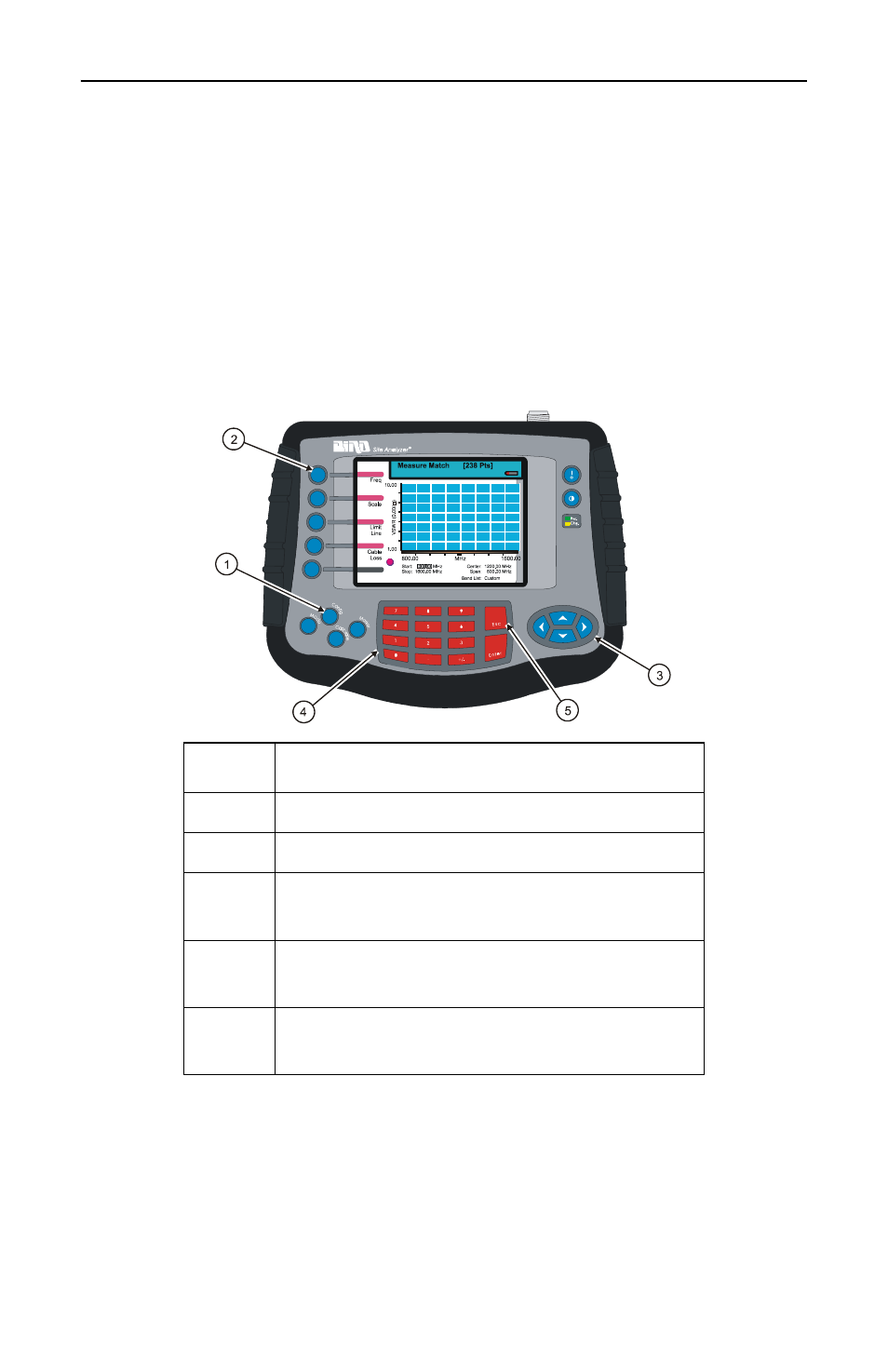

Figure 4 Setting a Custom Sweep Frequency

Step

Action

1

Press the Config key

2

Press the Freq softkey

3

Use the left or right scroll keys to select
Start, Stop, Center, or Span

4

Use the keypad keys to enter a value
and press Enter when finished.

5

Press the Esc key to exit the configura-
tion screen
