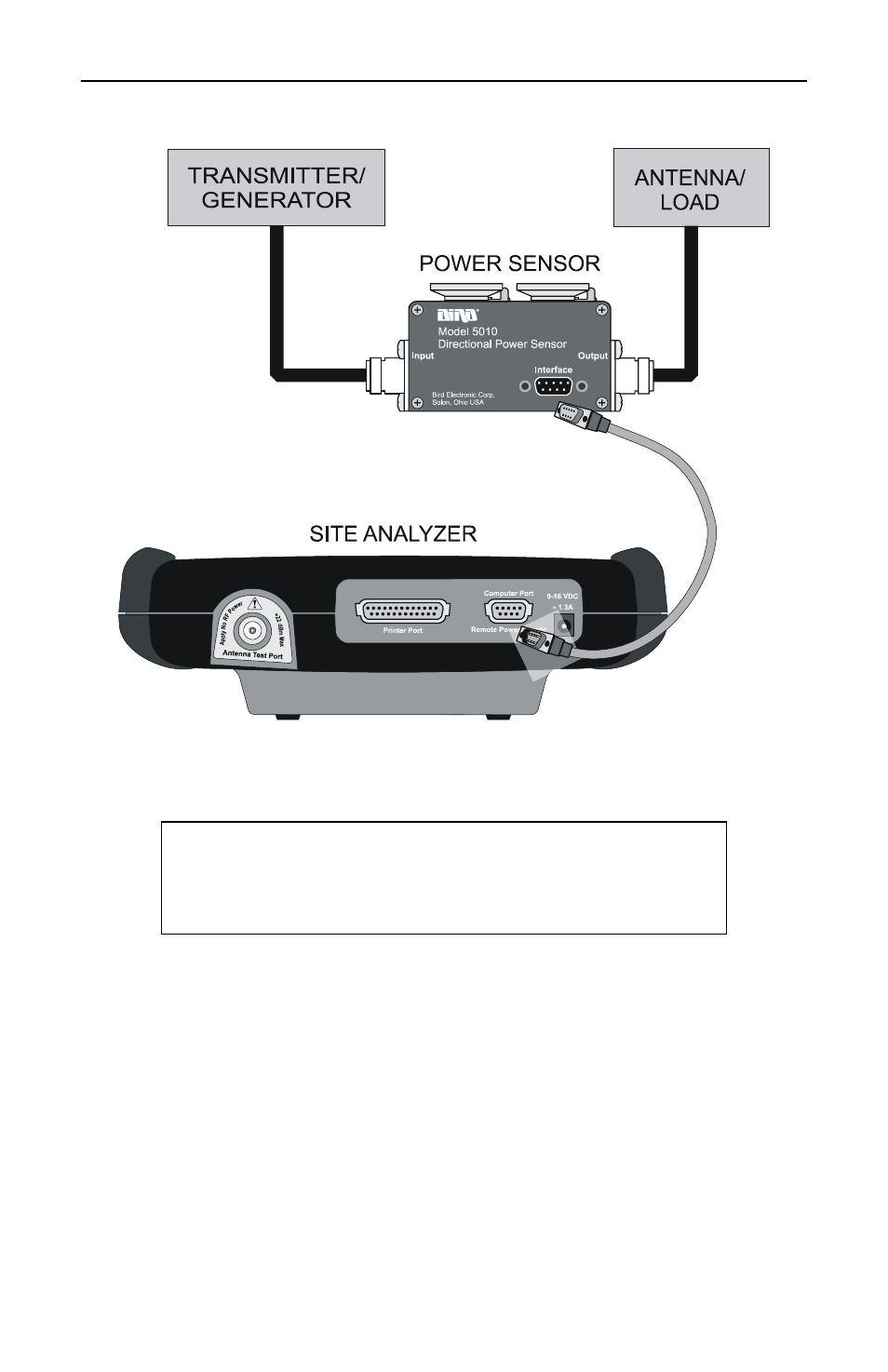

Figure 56 Connecting the SA to Measure Power
Connecting a Sensor
Although unlikely, it is possible to corrupt the power sensor firmware
by connecting it to the Site Analyzer while the SA is on. To prevent
this, turn the SA off before connecting or disconnecting a sensor.
Use a 9-pin serial cable to connect a power sensor to the Site Analyzer’s
serial port, labeled “Remote Power Sensor” (Figure 56 on page 100).
When a sensor is properly connected, the status message (at the top of
the screen) will change from “Waiting for Sensor” to “Sensor Con-
nected”. The warning screen will be replaced by the main display.
CAUTION
Always turn off the SA before connecting or
disconnecting a sensor.
