Introduction

13

Site Analyzer Display Screen

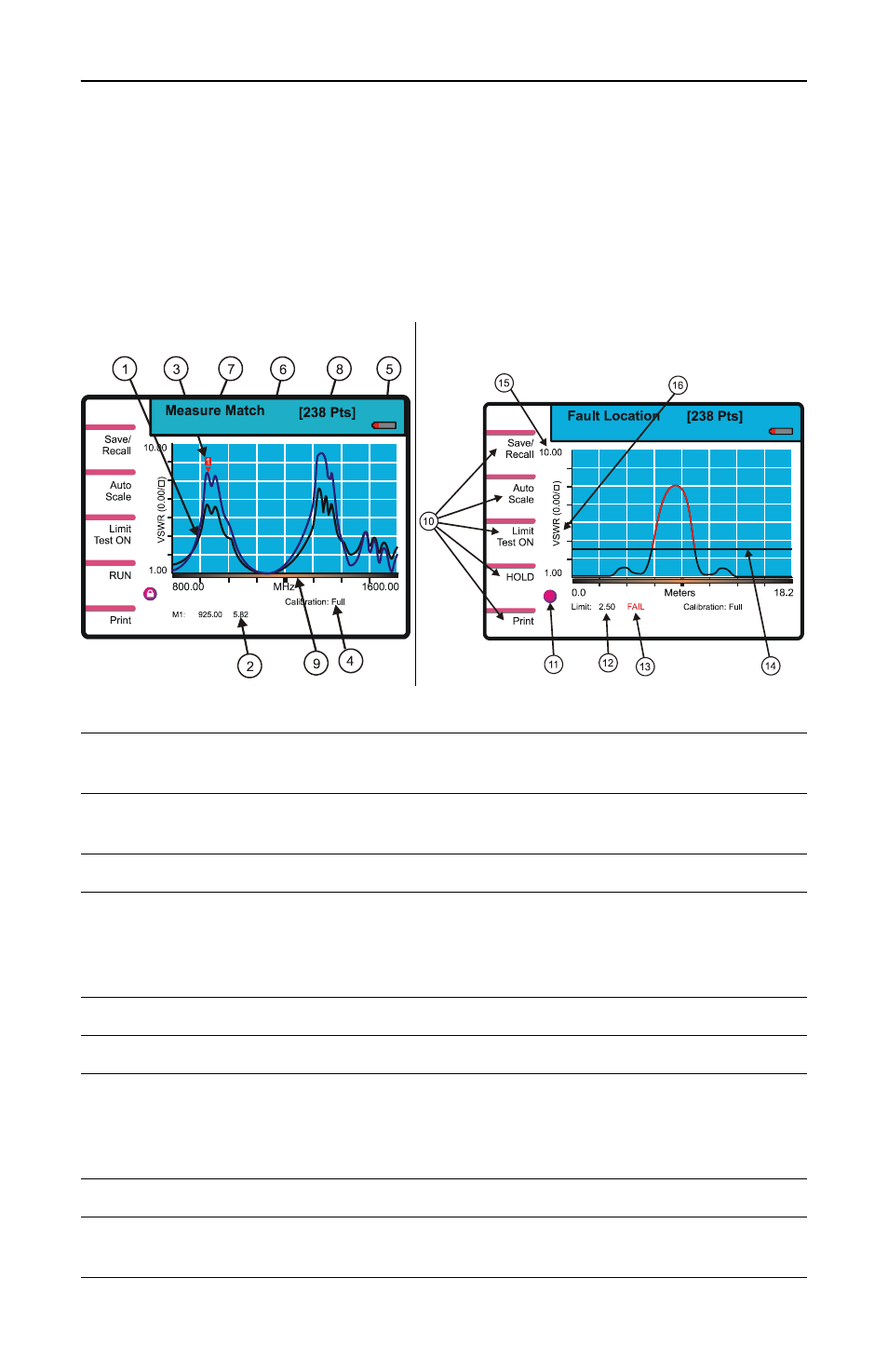

See the following two figures and the accompanying table for a
description of the display screen components for Measure Match mode
and for Fault Location mode.

Display Description

1.

Trace

Graphic display of the measurement.

2.

Marker Value

Indicates the position and value of a trace

point.

3.

Marker Cursor

Identifies the trace point displayed in the

marker value.

4.

Calibration Indicator

Indicates the calibration status.

5.

Battery Gauge

Indicates whether the Site Analyzer is

using the internal battery or an external

power supply, and indicates the amount

of battery life remaining.

6.

Recalled Trace Name

Indicates the name of a recalled trace.

7.

Mode Indicator

Name of the current mode.

8.

Measurement Data Points

Indicates the number of datapoints

collected for each trace. 238 = standard, 475

= twice as many data points as 238, 949 =

four times as many data points as 238.

9.

Progress Bar

Indicates data collection progress

10. Softkey Description

Describes the function of the softkey to

the left of the description.

Measure Match Sample Display

Fault Location Sample Display
