90 Rockwell Automation Publication PFLEX-IN006E-EN-P - July 2013
Chapter 7 Frame 11 Mechanical Installation
Lifting and Mounting Frame
11 Drives See the Lifting and Mounting PowerFlex 700S and 700H Drives, Frames 10…14,
Installation Instructions, publication
PFLEX-IN005 , for detailed instructions.
These instructions are shipped with the drive. When you have completed the
instructions in PFLEX-IN005, continue with the installation as directed below.
Remove the Protective

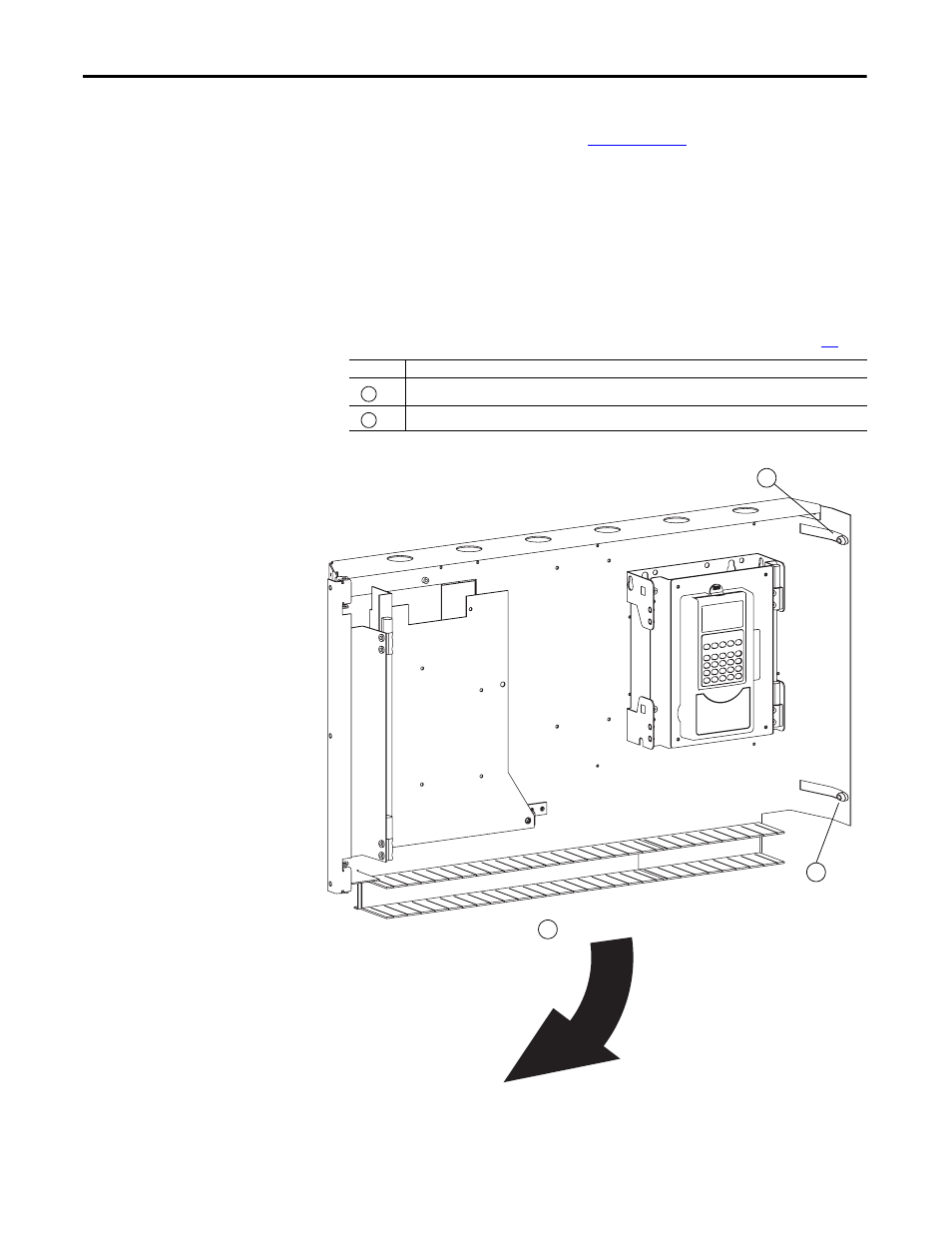

Covers Move the Control Frame
To gain access to the power wiring terminals, airflow plate and protective covers
you may need to move the control frame out of the way. If you do not need to
move the control frame, continue with Remove the Airflow Plate on page
91 .
Task Description
Loosen the T8 Torx-head screws that secure the control frame to the drive enclosure.
Swing the control frame out and away from the power structure.
A
B
B
A
A
