Rockwell Automation 20D PowerFlex 700H and 700S Frame 9...14 Drives User Manual
Page 74
74
Rockwell Automation Publication PFLEX-IN006E-EN-P - July 2013
Chapter 6
Frame 10 Mechanical Installation

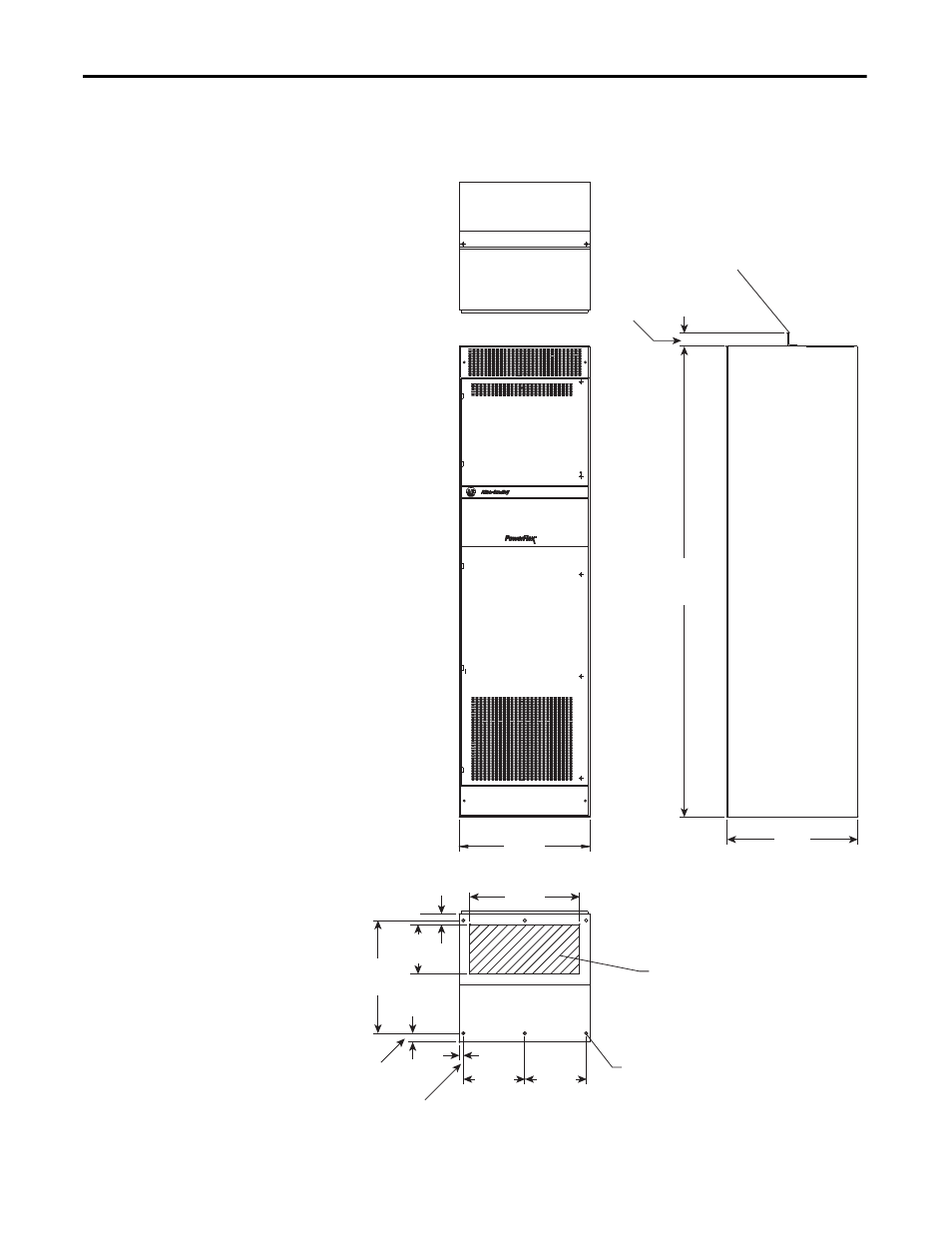

Figure 23 - Enclosure Code B (NEMA/UL Type 1, IP20 MCC) and K (NEMA/UL Type 1, IP20 MCC w/
Conformal Coat)
0.625 Dia. - 6 Mounting Holes
Removeable Lifting Angle
Area available for conduit routing
635
(25.0)
2286
(90.0)
63.5
(2.5)
295.5
(11.75)
295.5
(11.75)
19.0
(0.75)
548.6
(21.6)
241.3
(9.5)
50.8
(2.0)
43.2
(1.7)
533.4
(21.0)
635
(25.0)
Powerful Performance, Flexible Control.
Dimensions are in millimeters and (inches).
