Rockwell Automation Publication PFLEX-IN006E-EN-P - July 2013 87
Frame 11 Mechanical Installation Chapter 7

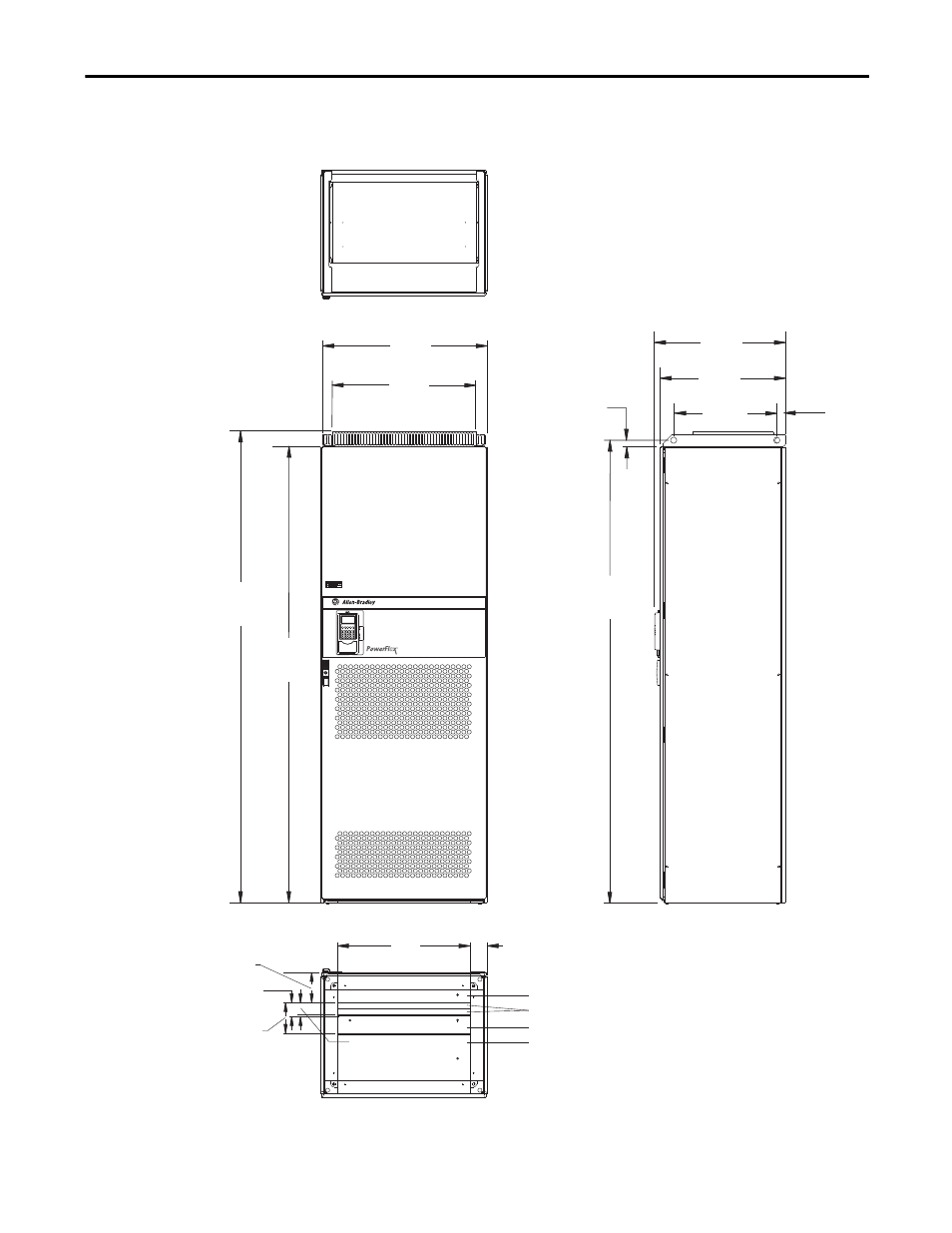

Dimensions Figure 29 - Enclosure Code A NEMA/UL Type 1 - IP21 and M (NEMA/UL Type 1, IP21 w/Conformal
Coat)
797.0
(31.38)
736.0
(28.98)
32.25
(1.27)
2234.0
(87.95)
42.0
(1.65) 498.0
(19.61)
605.5
(23.84)
621.74*
(24.48)
DANGER !
2275.0
(89.57)
2205.0
(86.81)
640
(25.2)
83
(3.3)
153.5 (6.0)
Gap with
Overlapping
Plate Removed
57.2
(2.3)
Standard
73.3 (2.9)
Max.
144.5
(5.7)
Stationary metal front bottom plate
Two pieces of soft foam taped to adjacent metal plates
Overlapping metal bottom plate (slightly adjustable)
Stationary metal back bottom plate)
Dimensions are in millimeters and (inches).
* This dimension is the depth
for drives with the optional
door-mounted HIM installed.
Wire entry for this enclosure is between two pieces of soft foam. If the adjustable plate is slid back, a
gap develops between the foam pieces. Otherwise, the foam acts as a loose gasket around the wires.
