Frame 14 Mechanical Installation
Chapter 10

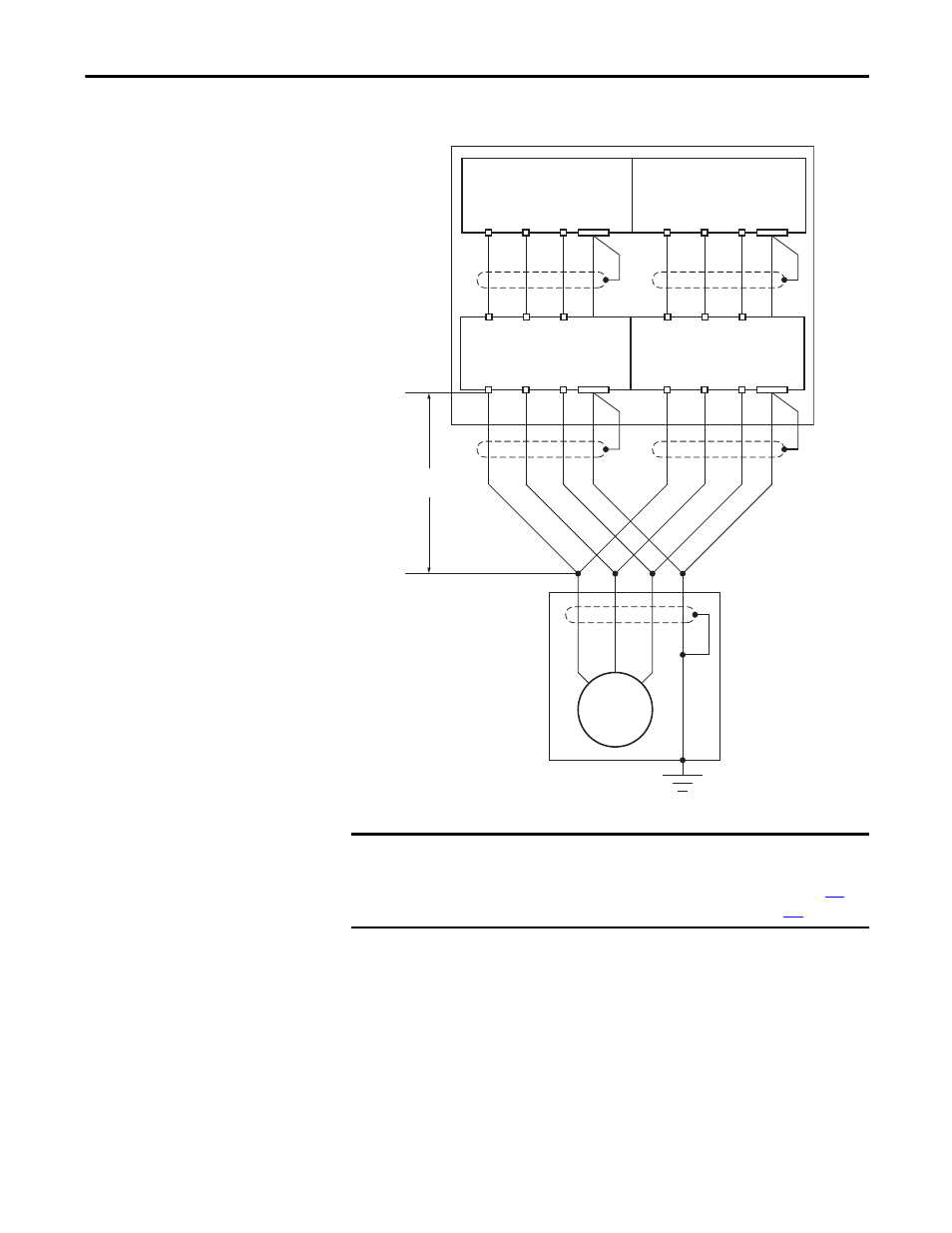

Figure 63 - Motor Wiring Example
IMPORTANT
Once power wiring has been completed, the protective covers must be
installed before energizing the drive. Installation is in reverse order of removal
(see Remove the Protective Covers from the Converter Unit(s) on page
and
Remove the Protective Covers from the Inverter Units on page
1U/T1
1V/T2
1W/T3
2U/T1
2V/T2
2W/T3
PE
PE
Motor Frame
Motor
PE
PE
1L1
1L2
1L3
2L1
2L2
2L3
1U/T1
1V/T2
1W/T3
2U/T1
2V/T2
2W/T3
INU1
INU2
du/dt Filter 1
du/dt Filter 2
5 m
minimum
