Rockwell Automation Publication PFLEX-IN006E-EN-P - July 2013 121
Frame 13 Mechanical Installation Chapter 9

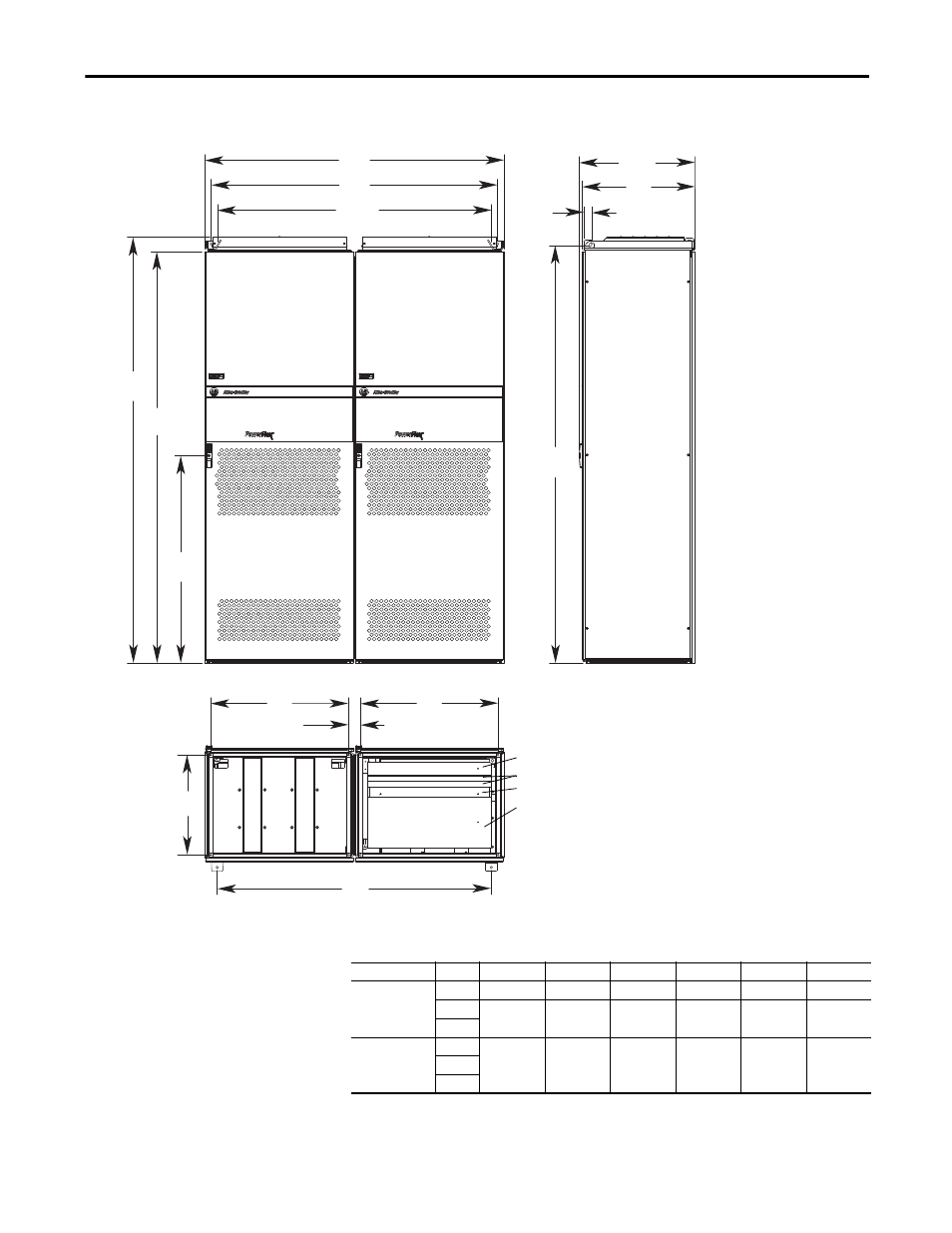

Dimensions Figure 48 - Enclosure Code A (NEMA/UL Type 1, IP21) and M (NEMA/UL Type 1, IP21 w/Conformal
Coat)
Table 27 - Frame 13 Dimensions for Enclosure Code A (NEMA/UL Type 1, IP21) and M (NEMA/UL
Type 1, IP21 w/Conformal Coat)
2197
2275
1108.25
65
535
2231
603
619.2
44
(89.6)
(86.5)
(43.6)
(87.8)
(1.73)
(23.7)
(24.4)
(2.6)
(21.1)
A
B
C
D E
F
Wire entry for this enclosure is
between two pieces of soft foam. If
the adjustable plate is slid back, a
gap develops between the foam
pieces. otherwise, the foam acts as a
loose gasket around the wires.
Stationary metal front bottom plate
Two pieces of soft foam taped to adjacent metal plates
Overlapping metal bottom plate (slightly adjustable)
Stationary metal back bottom plate
Voltage Class Amps A B C D E F
400/480V AC
(540/650V DC) 1150 1412 (56) 1329 (52) 1264 (50) 535 (21) 735 (29) 1264 (50)
1300 1600 (63) 1529 (60) 1464 (58) 735 (29) 735 (29) 1464 (58)
1450
600/690V AC
(810/932V DC) 920 1412 (56) 1329 (52) 1264 (50) 535 (21) 735 (29) 1264 (50)
1030
1180
Dimensions are in mm and (in.)
