134 Rockwell Automation Publication PFLEX-IN006E-EN-P - July 2013
Chapter 10 Frame 14 Mechanical Installation

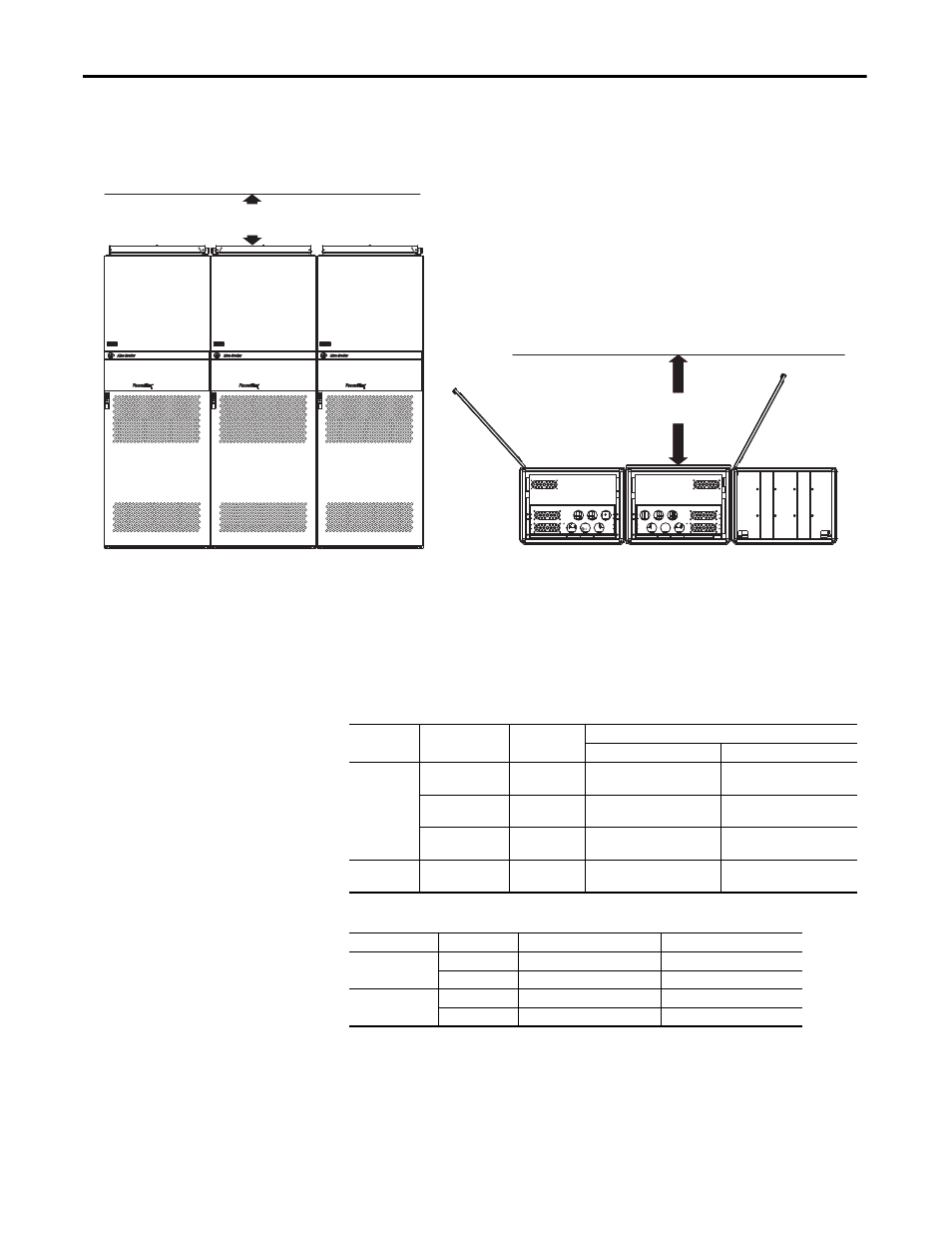

Minimum Mounting
Clearances
Operating Temperatures
Frame 14 drives require a minimum of 4200 m
3
/h (2472 cfm) of cooling air for
each Inverter unit and 1150 m
3
/h (677 cfm) of cooling air for each Converter
unit.
Table 30 - Frame 14 Number of Inverter and Converter Units Per Drive
800 mm
(31.50 in.) Min.
200 mm
(8.0 in.) Min.
1500A Drive - 2400 mm Enclosure Shown.
PowerFlex
Drive Voltage Class Amp Rating Surrounding Air Temperature
Normal Duty
Heavy Duty
700H 400/480V AC
(540/650V DC) All 0…40
°
C (32…104
°
F) 0…40
°
C (32…104
°
F)
600/690V AC
(810/932V DC) 1500, 1900 0…40
°
C (32…104
°
F) 0…40
°
C (32…104
°
F)
600/690V AC
(810/932V DC) 2250 0…35
°
C (32…95
°
F) 0…35
°
C (32…95
°
F)
700S 600/690V AC
(810/932V DC) 1500 0…40
°
C (32…104
°
F) 0…40
°
C (32…104
°
F)
Voltage Class Amp Rating No. Converter Units No. Inverter Units
400/480V AC 1700, 2150 4 6
2700 6 6
600/690V AC 1500 3 6
1900, 2250 4 6
