Frame 12 Mechanical Installation Chapter 8

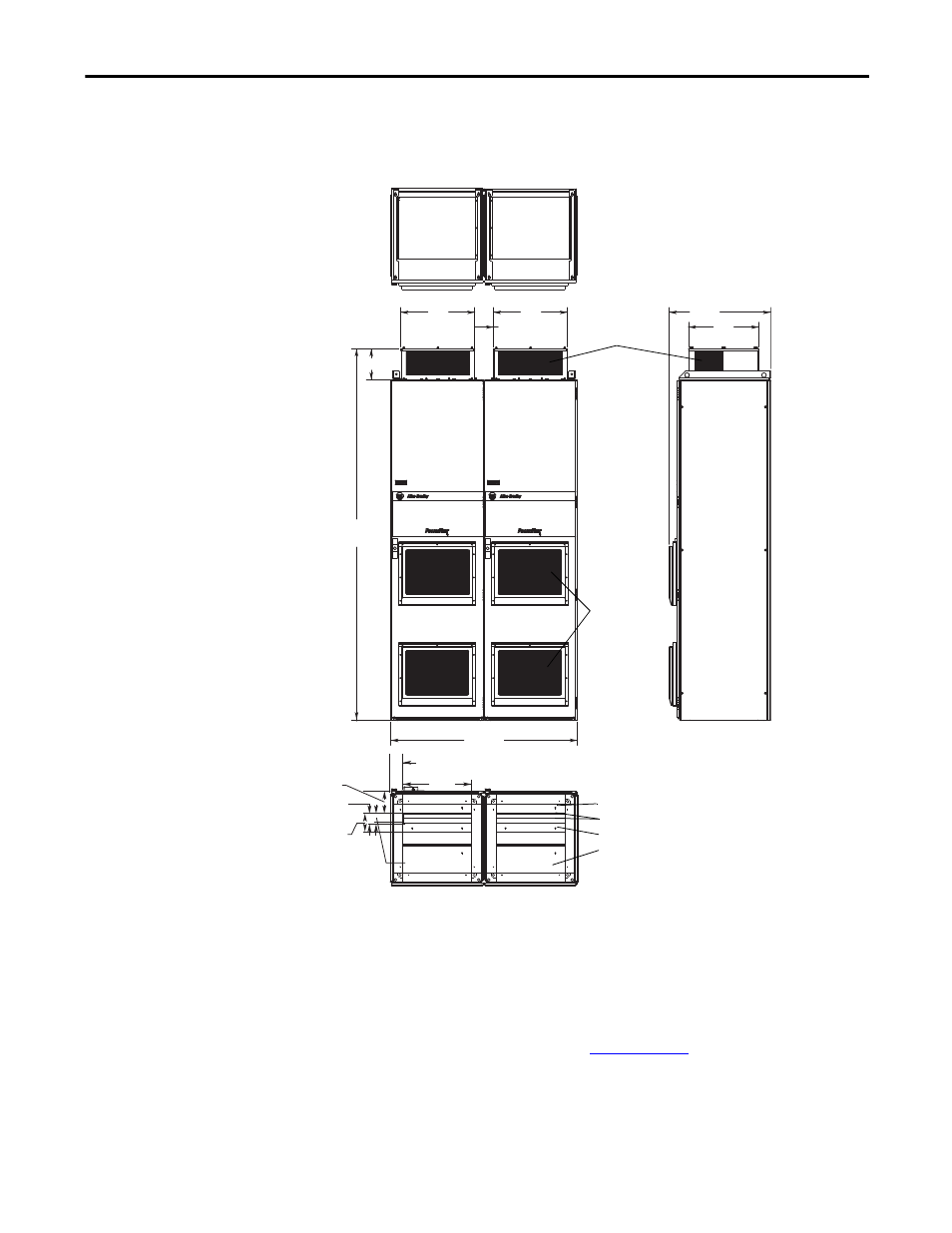

Figure 41 - Enclosure Code H (NEMA/UL Type 12, IP54) and W (NEMA/UL Type 12, IP54 w/Conformal
Coat)
Lifting and Mounting Frame
12 Drives See the Lifting and Mounting PowerFlex 700S and 700H Drives, Frames 10…14,
Installation Instructions, publication
PFLEX-IN005 , for detailed instructions.
These instructions are shipped with the drive. When you have completed the
instructions in PFLEX-IN005, continue with the installation as directed below.
2403.5
198.5
478 478
(4.8)
1205.05
655.04
454
(94.6)
(7.8)
(18.8) (18.8) (25.8)
(17.9)
87.9
(3.5)
116 (4.5)
Gap with
Overlapping
Plate Removed
57.2
(2.3) Standard
73.3 (2.9)
Max.
144.5
(5.7)
439
(17.3)
Dimensions are in millimeters and (inches).
NEMA/UL Type
12 Roof
Assembly
NEMA/UL
Type 12
External
Filters
Stationary metal front bottom plate
Two pieces of soft foam taped to adjacent metal plates
Overlapping metal bottom plate (slightly adjustable)
Stationary metal back bottom plate
Wire entry for this enclosure is between two pieces of soft foam. If the adjustable plate is slid back, a gap develops between the
foam pieces. Otherwise, the foam acts as a loose gasket around the wires.
