Chapter 3 Control Wiring for PowerFlex 700S Drives with Phase II Control

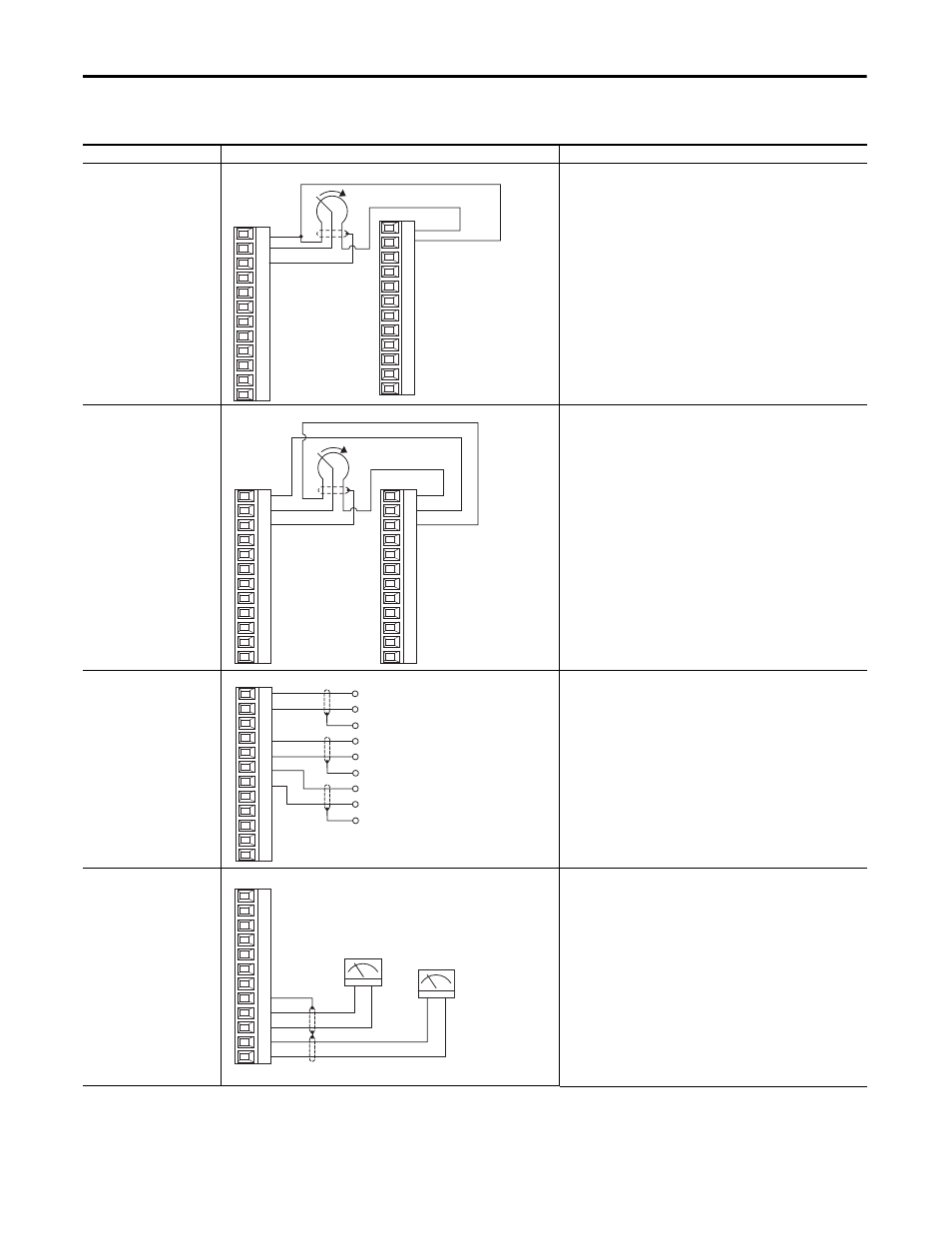

I/O Wiring Examples Table 19 - TB1 Terminals— Analog Wiring Examples
Input/Output Connection Example Required Parameter Changes
0…10V Analog Input
Internal Source No Changes Required
0…10V Analog Input
Bi-Polar No Changes Required
0…10V Analog Input
External Source No Changes Required
Analog Output
+/-10V DC
Used to drive analog meters
displaying speed and current
Using Analog Out 1, -10V to + 10V to meter Motor RPM and
direction:
• Send the data to the Analog Output
Par 833 [Anlg Out1 Real] (the destination) linked to Par 71 [Filtered
SpdFdbk] (the source)
• Scale the Output to the source parameter
Par 835 [Anlg Out1 Scale] = 175 (Par 4 [Motor NP RPM] = 1750 /
10V)
Using Analog Out 2, -10V to + 10V to meter Motor Current:
• Send the data to the Analog Output
Par 840 [Anlg Out2 Real] (the destination) linked to Par 308 [Output
Current] (the source)
• Scale the Output to the source parameter
Par 822 [Anlg Out2 Scale] = xx (Par 2 [Motor NP FLA] / 10 V Output)
