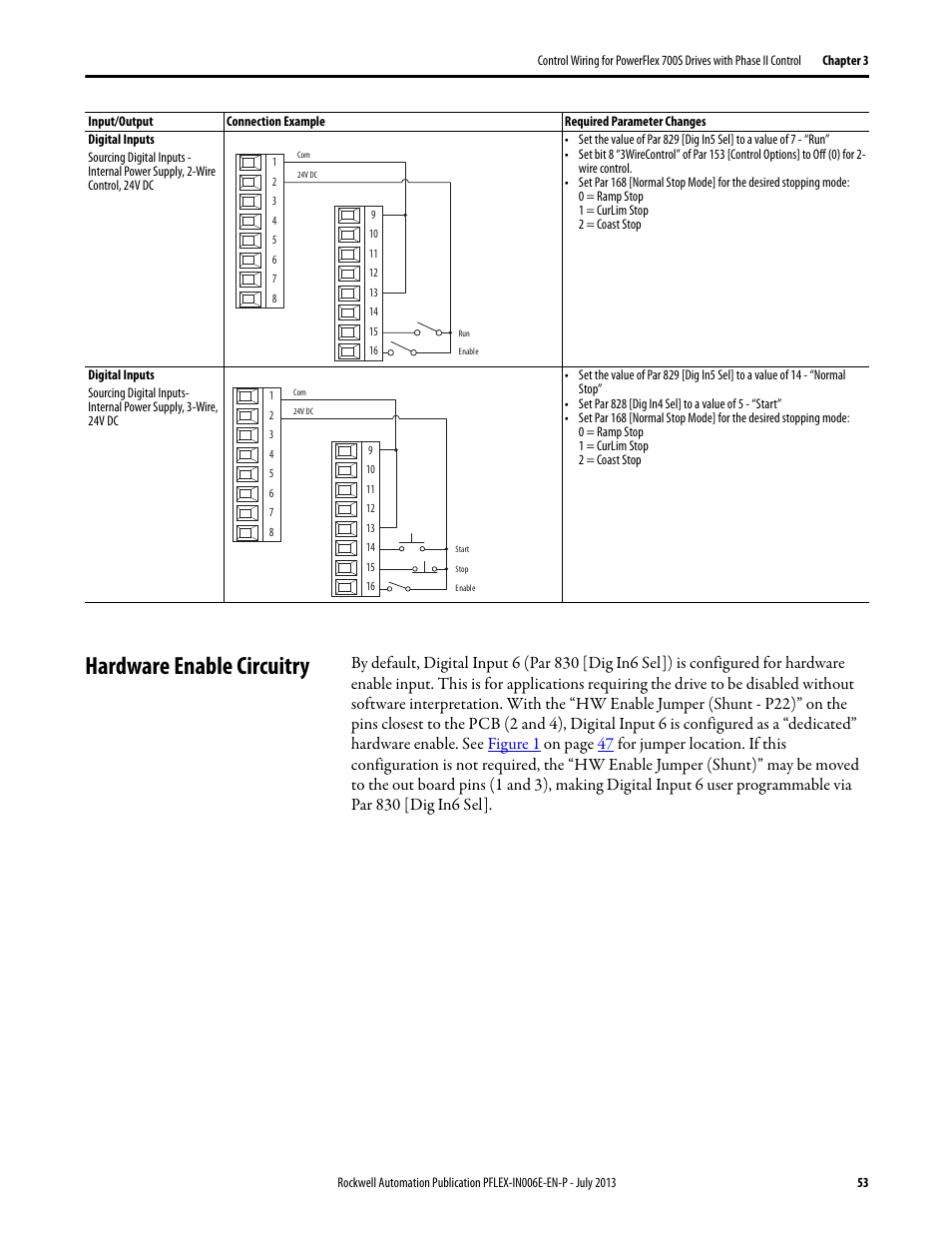

Hardware enable circuitry – Rockwell Automation 20D PowerFlex 700H and 700S Frame 9...14 Drives User Manual
Page 53
This manual is related to the following products:
