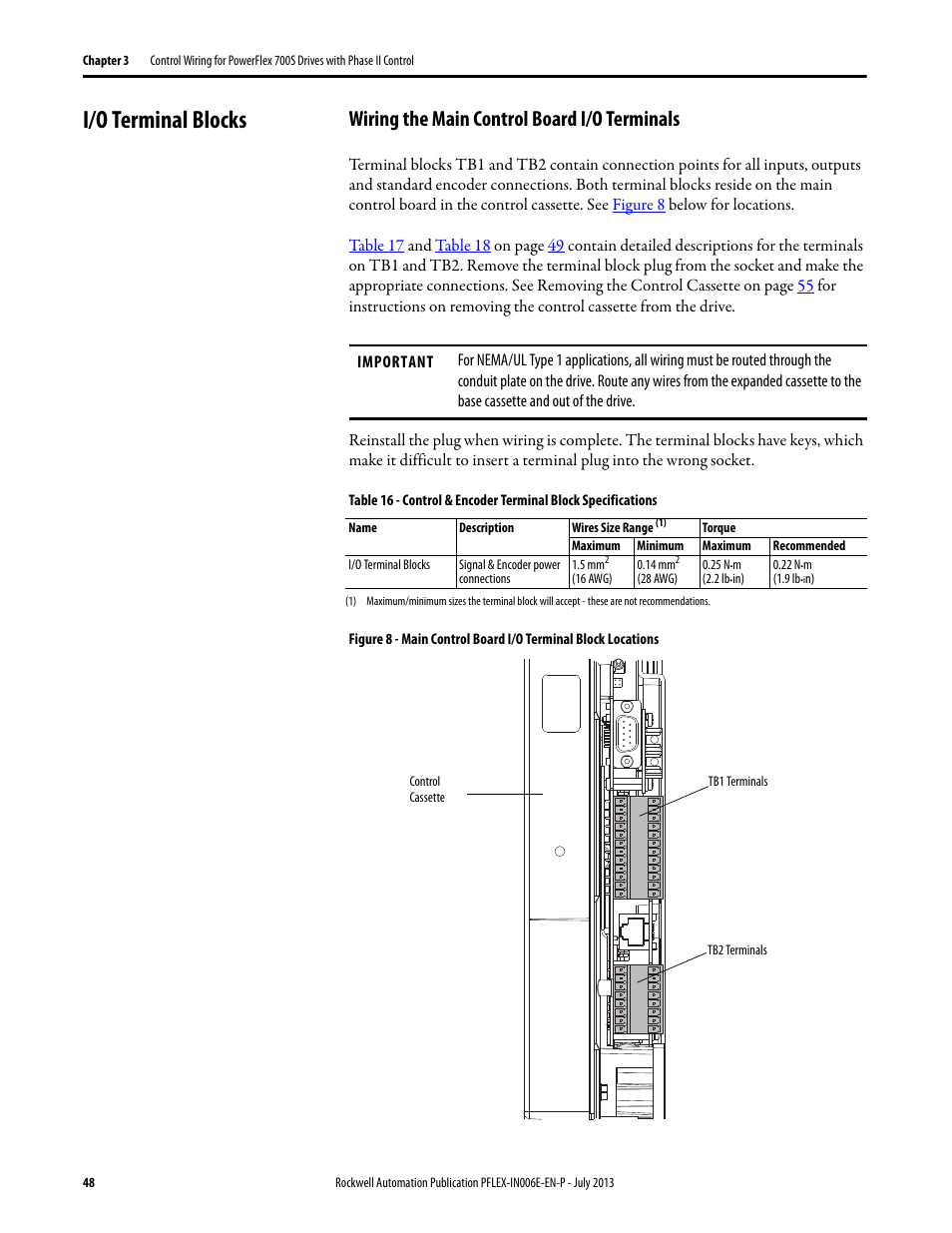

I/o terminal blocks, Wiring the main control board i/o terminals – Rockwell Automation 20D PowerFlex 700H and 700S Frame 9...14 Drives User Manual
Page 48
This manual is related to the following products:
